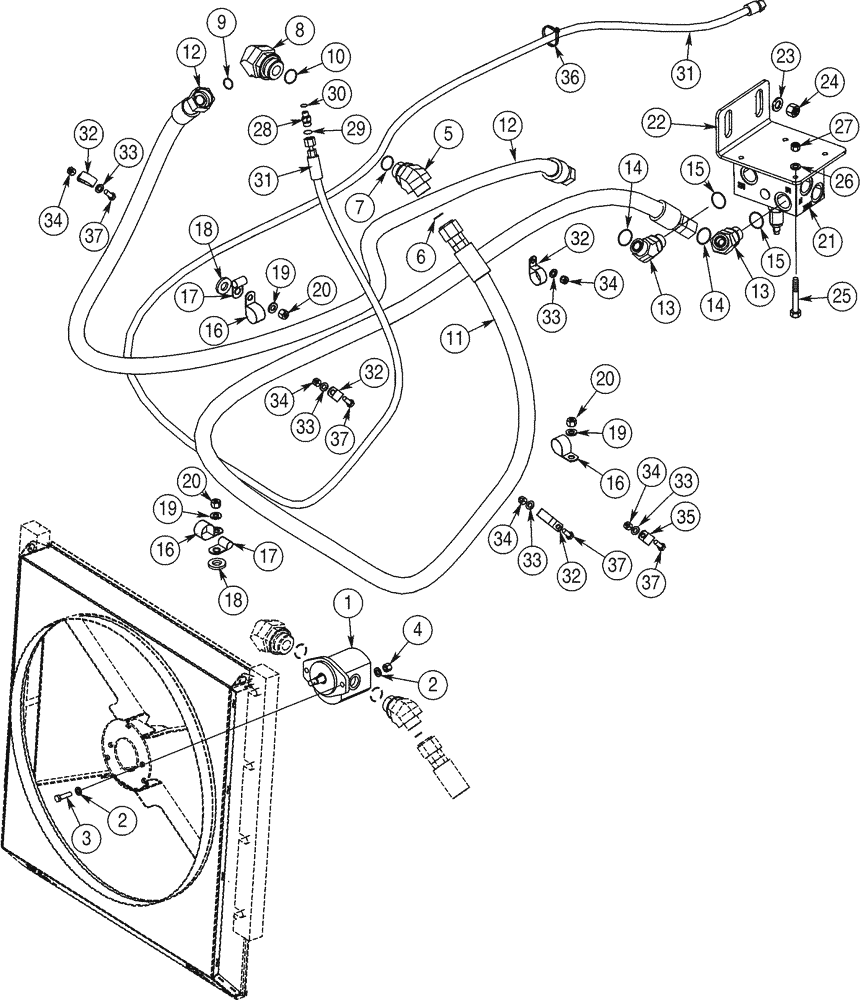

Запчасти Case 921C (08-14) - HYDRAULICS - FAN DRIVE (08) - HYDRAULICS

All Models JEE0126216-

1шт.

1

397444A1

MOTOR, HYDRAULIC,GEAR, 33 CC

Fan Drive, Reversible, Component Parts Not Available at Time of Printing

1шт.

397444A1R

REMAN-HYD MOTOR

921C - CASE WHEEL LOADER (S/N JEE0155000 & BEFORE) (1/99-)

1шт.

397444A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

3

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

201-376

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-3/16 fc x 1-5/16 Or, Incl. 6, 7

1шт.

6

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

8

201-371

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16 Or, Incl. 9, 10

1шт.

10

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

11

433540A1

HOSE ASSY.

3030 mm (119-1/4 in), Supply

1шт.

12

433541A1

HOSE ASSY.

2260 mm (89 in)

1шт.

13

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

1-3/16 fc x 1-1/16 Or, Incl. 14, 15

1шт.

14

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

16

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

3шт.

17

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

2шт.

18

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

19

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

21

433292A2

VALVE, PRESSURE RELI

EF See Figure 08-53

1шт.

22

435139A2

BRACKET

1шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

25

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

26

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

2шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

28

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Incl. 29, 30

1шт.

29

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

31

433542A1

HOSE ASSY.

3350 mm (131-7/8 in)

1шт.

32

515-22317

CLAMP,1 1/4", Insul, 5/16" Bolt

31,7 mm

3шт.

33

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

5шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

35

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

36

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

9

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.
