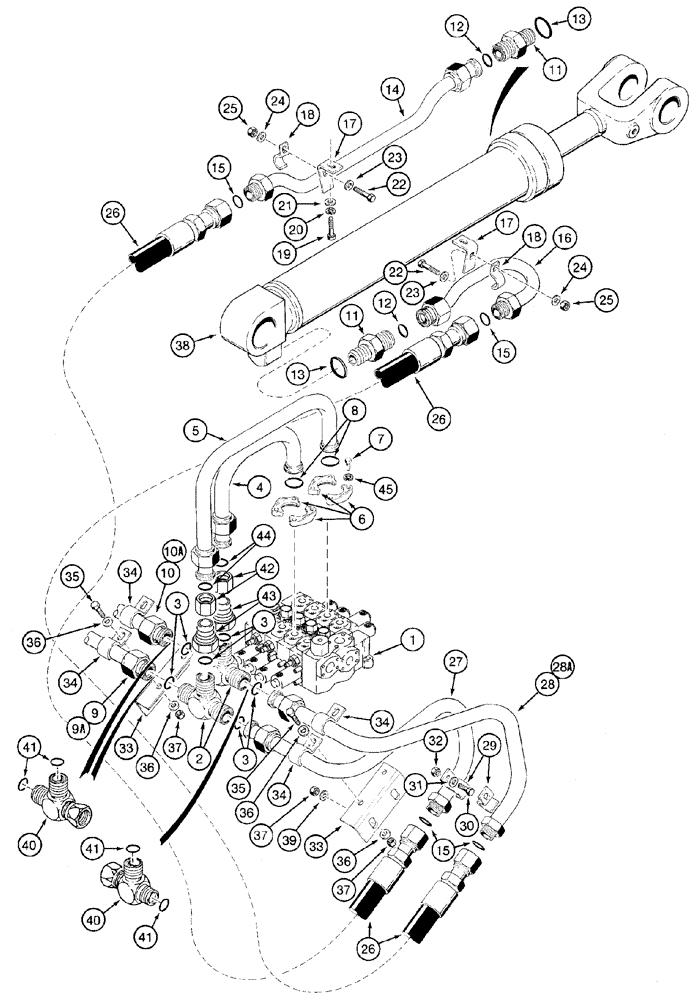

Запчасти Case 921C (08-11) - HYDRAULICS - LOADER LIFT (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control, Loader Lift, See Figures 08-15 - 08-17

1шт.

2

201-431

TEE,2"-12 ORFS

2 fc sl x fc sl x fc sl, Incl. 3

2шт.

3

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

3шт.

4

307621A1

TUBE

Lift

1шт.

5

307569A1

TUBE

Lift

1шт.

6

A12306

FLANGE

4шт.

7

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

8

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

9

L129507

TUBE,38.09 mm OD

Lift, Models Without Ride Control

1шт.

9a

131898A1

TUBE

Lift, Models With Ride Control

1шт.

10

L129513

TUBE,38.09 mm OD

Lift, Models Without Ride Control

1шт.

10a

131900A1

TUBE

Lift, Models With Ride Control

1шт.

11

201-133

HYD CONNECTOR,1 11/16"-12 ORFS x 1 5/8"-12 ORB

1-11/16 fc x 1-5/8 Or, Incl. 12, 13

4шт.

12

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

Face Seal End

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

14

L127938

TUBE,31.75 mm OD

2шт.

15

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

8шт.

16

L127936

PIPE ASSY.,31.75 mm OD

Lift Cylinder, Closed End

2шт.

17

L128507

SUPPORT

4шт.

18

S120173

CLAMP

4шт.

19

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

22

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

25

231-1448

NUT,1/2"-13, GB

4шт.

26

L128448

HOSE ASSY.,25.4mm ID x 1425mm L, SAE 100R12

1425 mm (56-1/8 in), Lift Cylinder

4шт.

27

L129505

TUBE,38.09 mm OD

Lift

1шт.

28

L129511

TUBE,38.09 mm OD

Lift, Models Without Ride Control

1шт.

28a

131902A1

TUBE

Lift, Models With Ride Control

1шт.

29

S87573

CLAMP

4шт.

30

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

31

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

32

231-1448

NUT,1/2"-13, GB

4шт.

33

L127925

SUPPORT

2шт.

34

S87573

CLAMP

4шт.

35

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

36

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

37

231-1448

NUT,1/2"-13, GB

8шт.

38

1986603C1

CYLINDER ASSY.

178 ID x 867 strk, Lift, See Figure 08-23

2шт.

39

S95569

WASHER

4шт.

40

201-437

TEE,2"-12 ORFS x 2"-12 Sw Run

2 fc sl x fc sl x sw fc, Models With Ride Control, Incl. 41

2шт.

41

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

2шт.

42

203-907

TUBE NUT,2"-12 ORFS

Models With or Without Ride Control

2шт.

43

201-150

REDUCER,1 11/16"-12 Male x 2"-12 Fem, ORFS

2 sw x 1-11/16 fc, Models With or Without Ride Control, Incl. 44

2шт.

44

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

45

492-11038

LOCK WASHER,3/8"

8шт.
