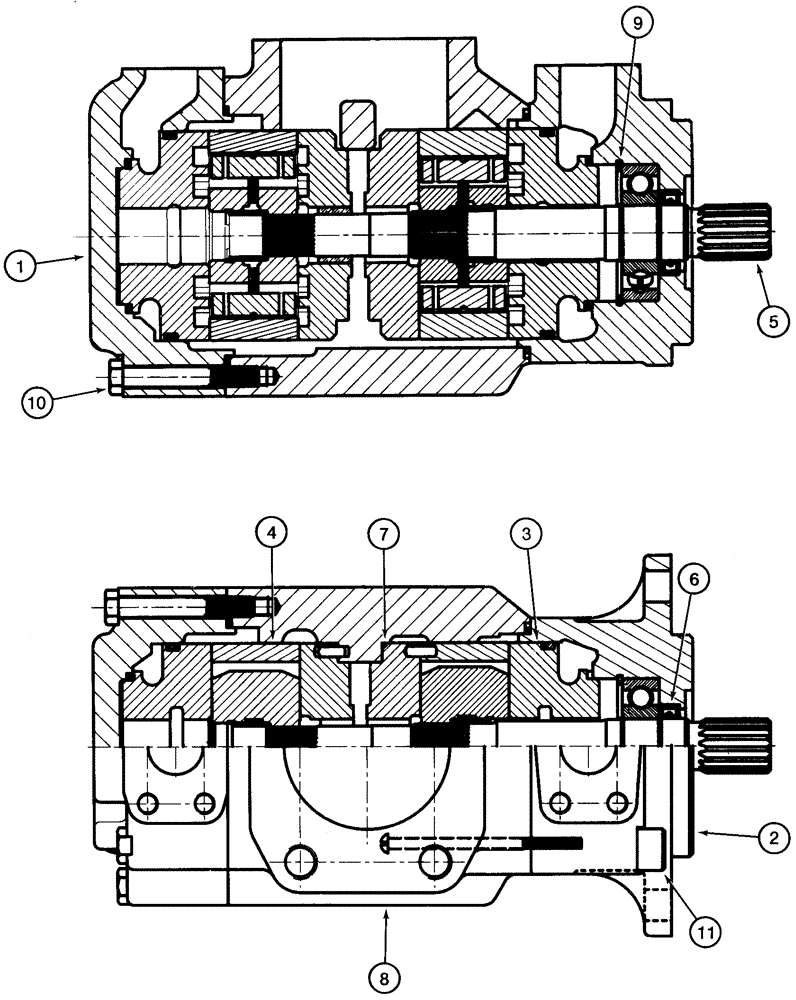

Запчасти Case 921C (08-08) - PUMP ASSY (08) - HYDRAULICS

195854A1

PUMP, HYDRAULIC,132.57 CC

Incl. 1 - 12

1шт.

195854A1R

REMAN-HYD PUMP

921C S/N JEE0155000 & Before

1шт.

195854A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

256613A1

CAP

Port End

1шт.

2

256617A1

CAP

Shaft End

1шт.

3

256631A1

ASSEMBLY

Internal, Shaft End, Component Parts Not Serviced Separately

1шт.

4

256630A1

ASSEMBLY

Internal, Port End, Component Parts Not Serviced Separately

1шт.

5

256628A1

BEARING ASSY

Includes Bearing, Component Parts Not Serviced Separately

1шт.

6

256629A1

SEAL KIT

Includes Shaft Seal, Component Parts Not Serviced Separately

1шт.

7

256626A1

LARGE PLATE

PLATE, LARGE Internal, Rear Port Plate and Bushing

1шт.

8

256619A1

HOUSING

Center

1шт.

9

3215468R1

RING

Shaft and Bearing

1шт.

10

3215476R1

BOLT

Rear End Cover

7шт.

11

3215477R1

BOLT

Shaft End Cover

4шт.

12

256625A1

LARGE PLATE

PLATE, LARGE Rear Port, Not Illustrated

1шт.
