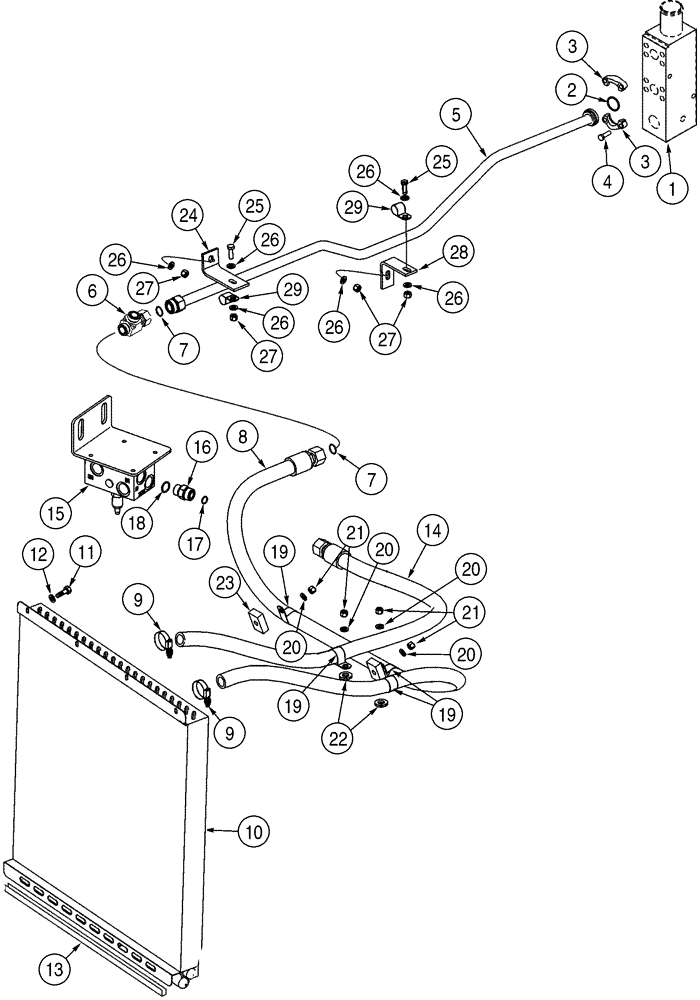

Запчасти Case 921C (08-07) - HYDRAULICS - VALVE, BYPASS TO COOLER (08) - HYDRAULICS

All Models JEE0126216-

1шт.

1

L127968

VALVE BODY

Cooler, See Figure 08-02, For Mounting, See Figure 08-03

1шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

3

A12306

FLANGE

2шт.

4

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

5

433233A1

TUBE

Cooler Return

1шт.

6

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

Incl. 7

2шт.

8

433258A1

HOSE ASSY.

2220 mm (87-3/8 in), Cooler Return

1шт.

9

353036A1

HOSE CLAMP,32mm - 54mm

2шт.

10

407068A2

OIL COOLER

Transmission And Hydraulic Oil

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

13

434052A1

SEAL

875 mm (34-7/16), Cut From F64277X

1шт.

14

433291A1

HOSE ASSY.

1565 mm (61-5/8 in)

1шт.

15

433292A2

VALVE, PRESSURE RELI

EF See Figure 08-53, For Mounting, See Figure 08-14

1шт.

16

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 17, 18

1шт.

17

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

19

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

4шт.

20

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

22

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

23

1978431C1

CLAMP

2шт.

24

L129275

SUPPORT

Mounting, Return Tube

1шт.

26

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

27

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

28

L129205

SUPPORT

Mounting

1шт.

29

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

25

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

7

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
