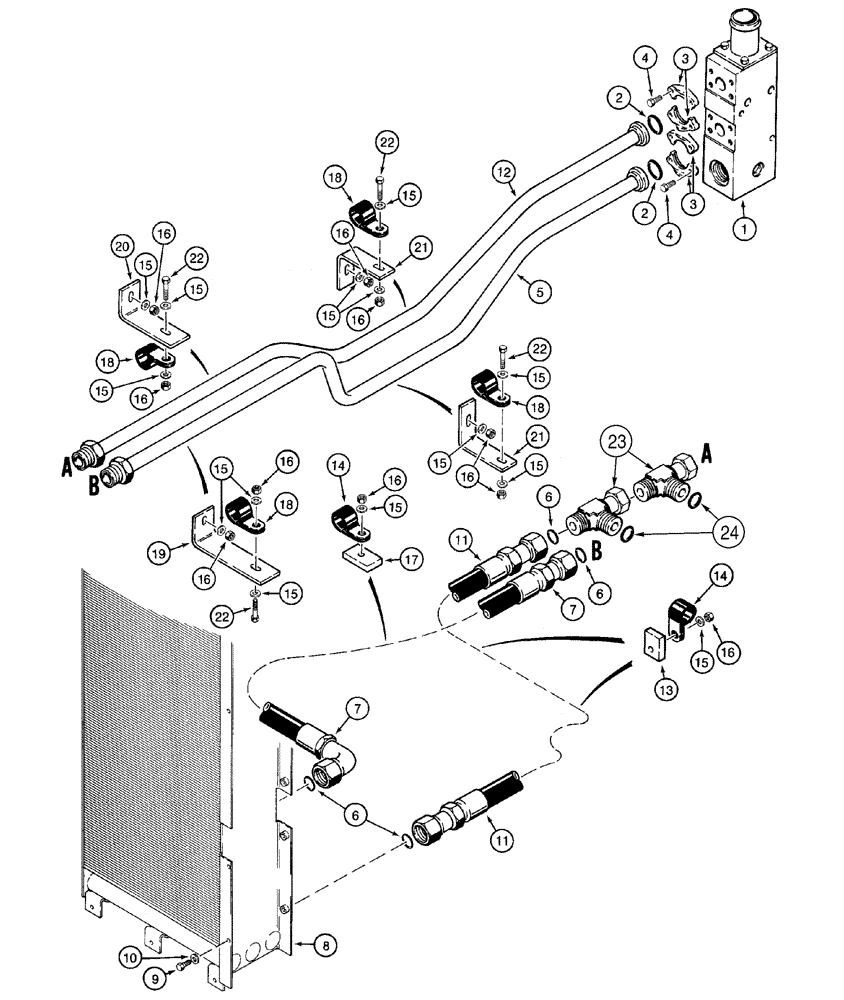

Запчасти Case 921C (08-06) - HYDRAULICS - VALVE, BYPASS TO COOLER (08) - HYDRAULICS

All Models -JEE0126215

1шт.

1

L127968

VALVE BODY

Cooler, See Figure 08-02, For Mounting, See Figure 08-03

1шт.

2

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

3

A12306

FLANGE

4шт.

4

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

5

L129166

TUBE,25.4 mm OD

1шт.

7

322161A1

HOSE ASSY.

1192 mm (47 in), Cooler to Valve, No Longer Used, Order L129091

1шт.

7

L129091

HOSE ASSY.

1270 mm (50 in), Cooler to Valve, Replaces 322161A1

1шт.

8

232069A1

OIL COOLER

Transmission And Hydraulic Oil

1шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

11

L129094

HOSE ASSY.

1867 mm (73-5/8 in), Oil Cooler Return, No Longer Used, Order 361365A1

1шт.

11

361365A1

HOSE,25.40 mm ID x 1772.00 mm, SAE 100R3

Oil Cooler Return, Replaces L129094

1шт.

12

L129168

TUBE,25.4 mm OD

Oil Cooler Return, No Longer Used, Order 363672A1

1шт.

12

363672A1

HYD TUBE

Oil Cooler Return, Replaces L129168

1шт.

13

L128763

SPACER

No Longer Used, Order 1978431C1

2шт.

13

1978431C1

CLAMP

Replaces L128763

2шт.

14

515-25381

CLAMP,1 1/2", Insul, 1/2" Bolt

3шт.

15

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

15шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

11шт.

17

L128859

SPACER

No Longer Available, Order 1978431C1

1шт.

17

1978431C1

CLAMP

Replaces L128859

1шт.

18

515-25254

CLAMP,1", Insul, 1/2" Bolt

4шт.

19

L129274

SUPPORT

Mounting, Supply Tube

1шт.

20

L129275

SUPPORT

Mounting, Return Tube

1шт.

21

L129205

SUPPORT

Mounting, Supply and Return Tubes

2шт.

23

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

Attaches to Brake Return Hose, Incl. 24

2шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

8шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

6

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.
