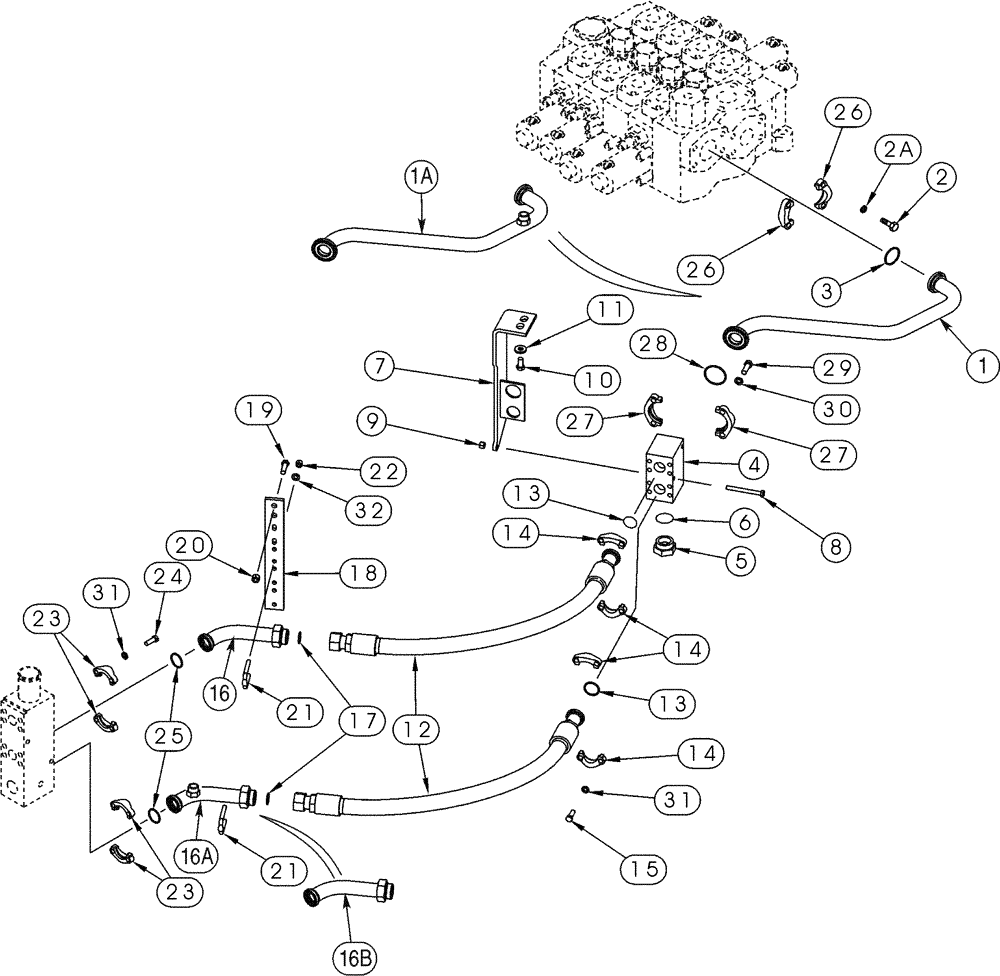

Запчасти Case 921C (08-05) - HYDRAULICS - LOADER VALVE TO BYPASS VALVE (08) - HYDRAULICS

1

307626A1

TUBE

Return, Loader Control Valve to Manifold, If Used, -JEE0123251

1шт.

1a

363759A1

TUBE

Return, Loader Control Valve to Manifold, If Used, JEE0123252-

1шт.

2

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

Replaces 426-724

4шт.

2a

80679

LOCK WASHER,1/20.507 CST ZND

1/2 (Replaces 492-11044)

4шт.

3

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

4

L128072

MANIFOLD VALVE

1шт.

5

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1-7/8 Or, Models Without Ride Control, See Figure 08-54, For Elbow Used on Models With Ride Control, Includes 6

1шт.

6

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

7

107703A1

SUPPORT

Mounting, Manifold

1шт.

8

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

10

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

2шт.

11

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

12

L128494

HOSE ASSY.

990 mm (39 in)

2шт.

13

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

14

A12301

CLAMP,Half

4шт.

15

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

7/16 x 1-1/4; 8

8шт.

16

L128146

TUBE,38.09 mm OD x 215, 64 mm L

Return

1шт.

16a

362405A1

TUBE,38.09 mm OD, 215, 64 mm Length

Return, -JEE0126215

1шт.

16b

L128146

TUBE,38.09 mm OD x 215, 64 mm L

Return, JEE0126216-

1шт.

17

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

18

L128564

LARGE PLATE

PLATE, LARGE

1шт.

19

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

20

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

21

233381A1

U-BOLT,M10 x 1.5 x 73mm, Carbon Steel

BOLT "U"

2шт.

22

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

23

A12301

CLAMP,Half

4шт.

24

426-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8

7/16 x 1-1/4; 8

8шт.

25

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

2шт.

26

A14157

FLANGE

2шт.

27

A14141

FLANGE

2шт.

28

238-6228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

If Used

4шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

If used

4шт.

31

492-11044

LOCK WASHER,7/16"

16шт.

32

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.
