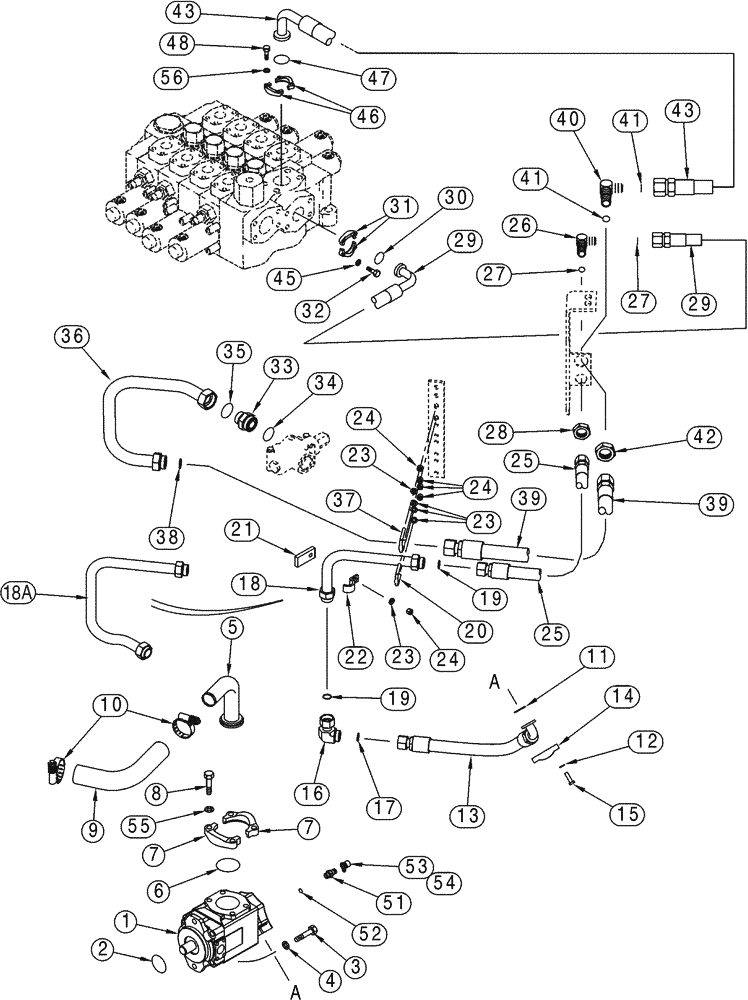

Запчасти Case 921C (08-04) - HYDRAULICS - RESERVOIR TO HYDRAULIC PUMP (08) - HYDRAULICS

1

195854A1

PUMP, HYDRAULIC,132.57 CC

Equipment, See Figure 08-08

1шт.

195854A1R

REMAN-HYD PUMP

921C S/N JEE0155000 & Before

1шт.

195854A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

3

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

4

NLS

NO LONGER SERVICED

5/8

2шт.

5

191357A1

TUBE,63.5 mm OD, 235, 227 mm Length

Suction, Reservoir To Pump

1шт.

6

238-5237

O-RING,0.139" Thk x 3.359" ID, -237, Cl 5, 75 Duro

1шт.

7

L13135

CLAMP

2шт.

8

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

9

L128461

HOSE,63.5 mm ID x 660.00 mm

Suction, Reservoir To Pump, No Longer Used, Order 348123A1

1шт.

9

348123A1

HOSE,63.5mm ID x 455mm L, SAE 100R4

455 mm (17-15/16 in), Suction, Reservoir To Pump, Replaces L128461

1шт.

10

L115549

CLAMP,69.85mm - 92.08mm

2шт.

11

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

12

892-11010

LOCK WASHER,M10

4шт.

13

191736A1

HOSE

800 mm (31-1/2 in), Used With 201-339, REF 16; L138288, REF 18, If Used

1шт.

13

399374A1

HOSE ASSY.

666 mm (26-1/4 in), Used With, 399300A1, REF 18A, If Used

1шт.

14

A12306

FLANGE

2шт.

15

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

16

201-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

1-7/16 fc x sw, Includes 17, Used With 191736A1, REF 13, L128288, REF 18

1шт.

18

L128288

TUBE,31.75 mm OD x 319, 187 mm L

Used With 191736A1, REF 13; 201-339, REF 16, If Used

1шт.

18a

399300A1

TUBE

Used With 399374A1, REF 13, If Used

1шт.

20

253410A1

U-BOLT,M10 x 1.5 x 67mm

BOLT "U"

1шт.

21

L129098

SPACER

2шт.

22

S120173

CLAMP

1шт.

23

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

25

L128495

HOSE ASSY.

990 mm (39 in)

1шт.

26

201-363

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

1-7/16 fc sl x bkhd fc, Includes 27

1шт.

28

201-908

BHD LOCK NUT,Blkhd, 1 7/16"-12

1-7/16 NF

1шт.

29

L129484

HOSE ASSY.

820 mm (32-3/8 in)

1шт.

30

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

31

A12301

CLAMP,Half

2шт.

32

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

7/16 x 1-1/2; 8

4шт.

33

201-137

HYD CONNECTOR,2"-12 ORFS x 1 8/8"-12 ORB

2 fc sl x 1-5/8 Or, To Flow Control Valve, Includes 34, 35

1шт.

34

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss End

1шт.

35

238-6029

O-RING,0.07" Thk x 1.489" ID, -29, Cl 6, 90 Duro

Face Seal End

1шт.

36

L128113

TUBE,38.09 mm OD

1шт.

37

253411A1

U-BOLT,M10 x 1.5 x 73mm

BOLT "U" No Longer Used, Order 233381A1

1шт.

37

233381A1

U-BOLT,M10 x 1.5 x 73mm, Carbon Steel

BOLT "U" Replaces 253411A1

1шт.

38

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

39

L128496

HOSE ASSY.

990 mm (39 in)

1шт.

40

201-364

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

1-11/12 fc sl x bkhd fc, Includes 41

1шт.

41

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

2шт.

42

201-922

BHD LOCK NUT,Blkhd, 1 11/16-12

1-11/16 NF

1шт.

43

313178A1

HOSE ASSY.

820 mm (32-1/4 in)

1шт.

45

492-11044

LOCK WASHER,7/16"

4шт.

46

A14157

FLANGE

2шт.

47

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

48

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

4шт.

S243647

COUPLING

Diagnostic, Incl. 51 - 54

1шт.

51

NSS

NOT SOLD SEPARAT

Coupling, Quick Disconnect Coupling

1шт.

53

S301201

CAP

If Used

1шт.

54

H434163

DUST CAP

If Used

1шт.

55

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

56

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

17

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

52

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
