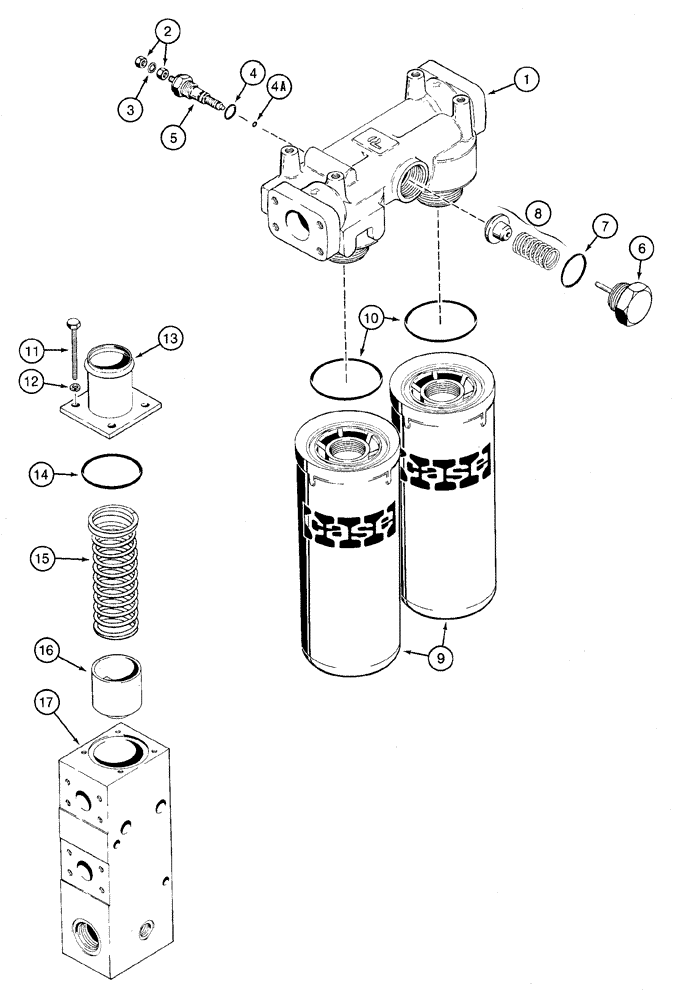

Запчасти Case 921C (08-02) - FILTER ASSY, OIL - VALVE, COOLER BYPASS (08) - HYDRAULICS

Hydraulic Oil Filter

1шт.

348223A1

HYDRAULIC OIL FILTER

For Mounting, See Figure 08-03, Incl. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Head, Filter

1шт.

N6755

PRESSURE SWITCH

Restriction, Electric, Incl. 2 - 5

1шт.

2

225-14210

NUT,#10-32

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

4a

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

5

NSS

NOT SOLD SEPARAT

Indicator, Restriction, Order N6755

1шт.

6

NSS

NOT SOLD SEPARAT

Plug, Retaining, Bypass Valve

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Plug

1шт.

8

NSS

NOT SOLD SEPARAT

50 psi, Valve, By-Pass, Order 348223A1

1шт.

N9086

HYDRAULIC OIL FILTER

Incl. 9, 10, Filter

2шт.

9

NSS

NOT SOLD SEPARAT

Element, Order N9086

1шт.

10

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

Cooler Bypass Valve

1шт.

L127968

VALVE BODY

Oil Cooler, For Mounting, See Figure 08-03, Incl. 11 - 17

1шт.

11

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

12

492-21031

LOCK WASHER,5/16"

5/16

4шт.

13

S302009

END FITTING

Outlet

1шт.

14

238-5145

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

15

S302010

SPRING

1шт.

16

S302008

VALVE POPPET

1шт.

17

NSS

NOT SOLD SEPARAT

Body

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
