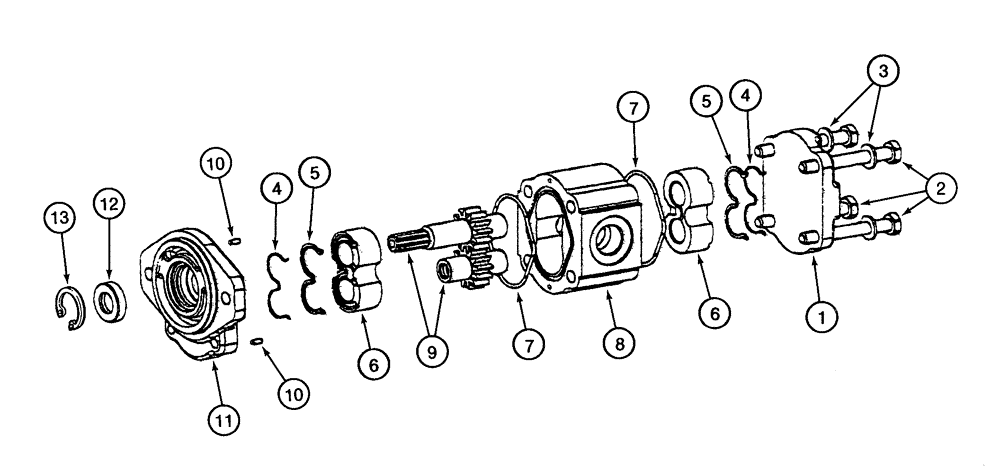

Запчасти Case 921C (07-15) - PUMP ASSY - BRAKE (07) - BRAKES

317022A1

PUMP

Brake Pump, Incl. 1 - 13, Component Parts Not Serviced Separately, Order 258247A1

1шт.

1

NSS

NOT SOLD SEPARAT

Cover, Port End

1шт.

2

NSS

NOT SOLD SEPARAT

Bolt

4шт.

3

NSS

NOT SOLD SEPARAT

Washer

4шт.

4

NSS

NOT SOLD SEPARAT

Seal

2шт.

5

NSS

NOT SOLD SEPARAT

Seal

2шт.

6

NSS

NOT SOLD SEPARAT

Block

2шт.

7

NSS

NOT SOLD SEPARAT

Seal

2шт.

8

NSS

NOT SOLD SEPARAT

Housing, Shaft

1шт.

9

NSS

NOT SOLD SEPARAT

Shaft, Gear, Gear Set

1шт.

10

NSS

NOT SOLD SEPARAT

Pin, Dowel

2шт.

11

NSS

NOT SOLD SEPARAT

Cover, Shaft End

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Oil

1шт.

13

800-2135

SNAP RING,M35, Int

1шт.

258247A1

SEAL KIT

Incl. 4, 5, 7, 12

1шт.
