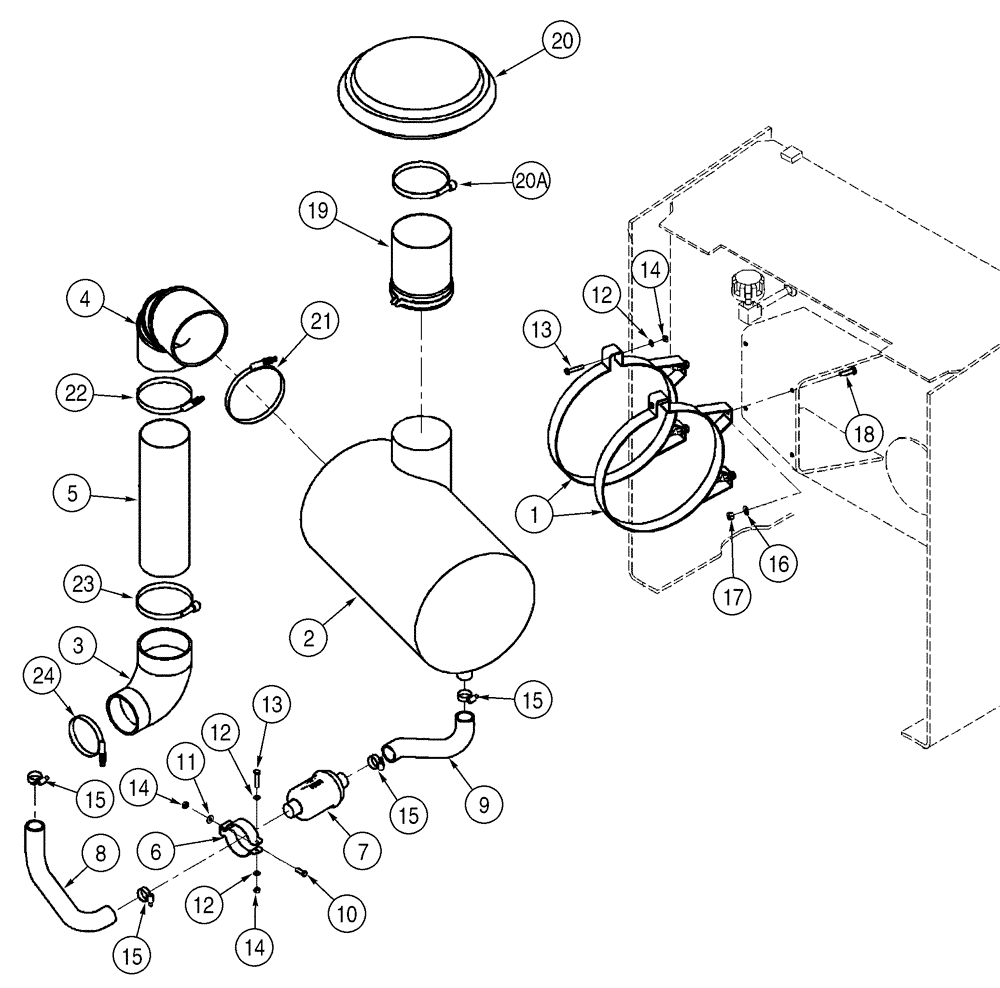

Запчасти Case 921C (02-08) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

All Models JEE0126216-

1шт.

1

90-3871T1

CLIP

2шт.

2

90-7743T91

AIR CLEANER

See Figure 02-09

1шт.

3

9-94

HOSE,4.0 " ID, 5.0 ID

1шт.

4

L128442

ELBOW

1шт.

5

L128443

TUBE,127 mm OD x 407 mm L

1шт.

6

90-7639T1

CLAMP

1шт.

7

90-7640T1

VALVE

1шт.

8

426160A1

HOSE,38.00 mm ID x 280.00 mm, SAE 20R4 Class D1, SAE J20R4

Exhaust

1шт.

9

426161A1

INTAKE AIR HOSE,38.00 mm ID, SAE 20R4 Class D1, SAE J20R4

1шт.

11

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

1шт.

12

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.

13

827-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 10.9

3шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

16

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

18

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

19

L129742

EXTENSION

1шт.

20

9-128

CAP

Incl. 20A

1шт.

20a

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

1шт.

21

L129160

CLAMP,158.75mm - 180.97mm

1шт.

22

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

1шт.

23

L124802

COLLAR CLAMP

1шт.

24

L124635

HOSE CLAMP

1шт.

10

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.
