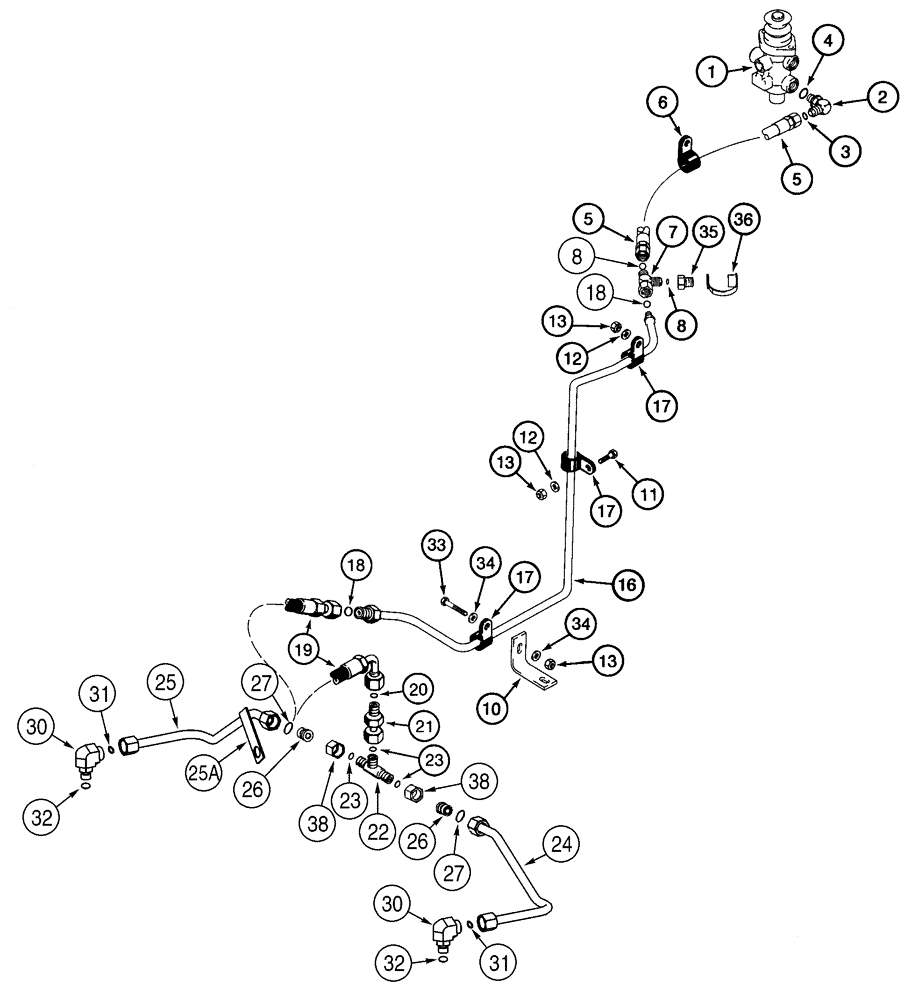

Запчасти Case 921C (07-13) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES
№
Артикул
Название
Примечание
Количество
Main Brake Valve to Rear Axle
1шт.
Axle 298446A1
1шт.
1
REF
INSTRUCTION
Valve, Brake, Main Brake Valve, See Figure 07-16
1шт.
2
201-305
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB
Incl. 3, 4
1шт.
4
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
Boss end
1шт.
5
344568A2
HOSE ASSY.
1048 mm (41-1/4 in)
1шт.
6
515-25286
CLAMP,1 1/8", Insul, 3/8" Bolt
1-1/8 ID
1шт.
7
201-433
TEE,1"-14 ORFS x 1"-14 Sw Run
Incl. 8
1шт.
8
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
10
L129205
SUPPORT
1шт.
13
832-10410
NUT,M10 x 1.5, Cl 8
3шт.
16
344909A2
TUBE
Replaces 344909A1
1шт.
17
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
3шт.
18
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
19
344571A1
HOSE ASSY.
754 mm (29-11/16 in)
1шт.
20
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
21
344900A1
TUBE,15.87 mm OD, 63 mm Length
1шт.
22
201-415
TEE,1"-14 ORFS
Incl. 23
1шт.
23
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
3шт.
24
344664A2
BRAKE LINE
Right Hand Rear, Replaces 344664A1
1шт.
25
344666A2
TUBE
Left Hand Rear, Incl. 25A, Replaces 344666A1
1шт.
25a
NSS
NOT SOLD SEPARAT
Support, Mount With Axle Bolt
1шт.
26
201-146
REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS
1 sw x 13/16 fc, Incl. 27
2шт.
30
201-332
ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 9/16" - 18 Male ORB
Incl 31, 32
2шт.
35
324202A1
PLUG
1шт.
36
H434163
DUST CAP
1шт.
38
203-903
TUBE NUT,1"-14 ORFS
2шт.
33
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
1шт.
34
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
2шт.
12
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
2шт.
31
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
Boss end
1шт.
Выбрано товаров: 35
