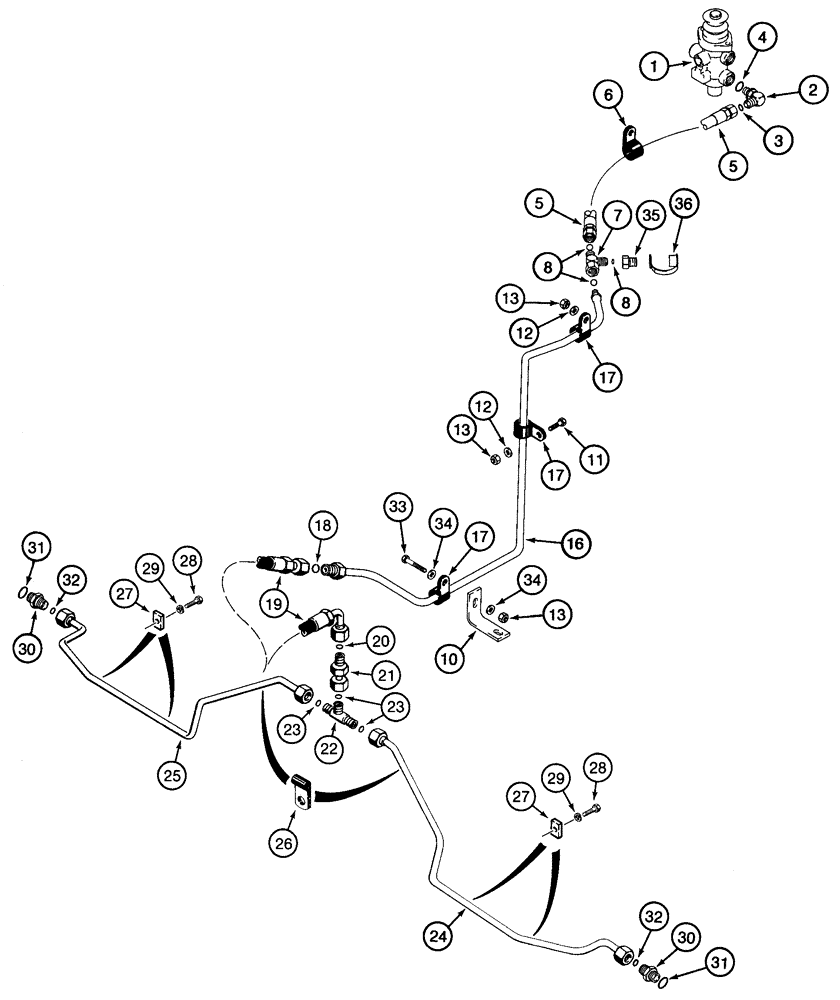

Запчасти Case 921C (07-12) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

Main Brake Valve to Rear Axle

1шт.

Axle L129887

1шт.

1

REF

INSTRUCTION

Valve, Brake, Main Brake Valve, See Figure 07-16

1шт.

2

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 3, 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

5

227918A1

HOSE ASSY.

1126 mm (44-3/8 in)

1шт.

6

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

7

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Incl. 8

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

10

L129205

SUPPORT

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

16

225284A2

TUBE

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

3шт.

18

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

19

L129761

HOSE ASSY.

850 mm (33-1/2 in)

1шт.

20

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

21

L129633

TUBE,12.7 mm OD x 60 mm L

1шт.

22

201-409

TEE,13/16"-16 ORFS

Incl. 23

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

24

106715A1

TUBE,12.7 mm OD, 770, 284 mm Length

Right Hand Rear

1шт.

25

L129641

TUBE,12.7 mm OD

Left Hand Rear

1шт.

26

L12296

CLAMP

Uses Existing Hardware

2шт.

27

L129191

CLAMP

4шт.

28

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

4шт.

29

492-11025

LOCK WASHER,1/4"

4шт.

30

120782A1

ADAPTER

Incl. 31

2шт.

31

120879A1

O-RING,0.546" ID x 0.685" OD x 0.139"

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Not Included With Fitting

2шт.

35

324202A1

PLUG

1шт.

36

H434163

DUST CAP

1шт.

33

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

34

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
