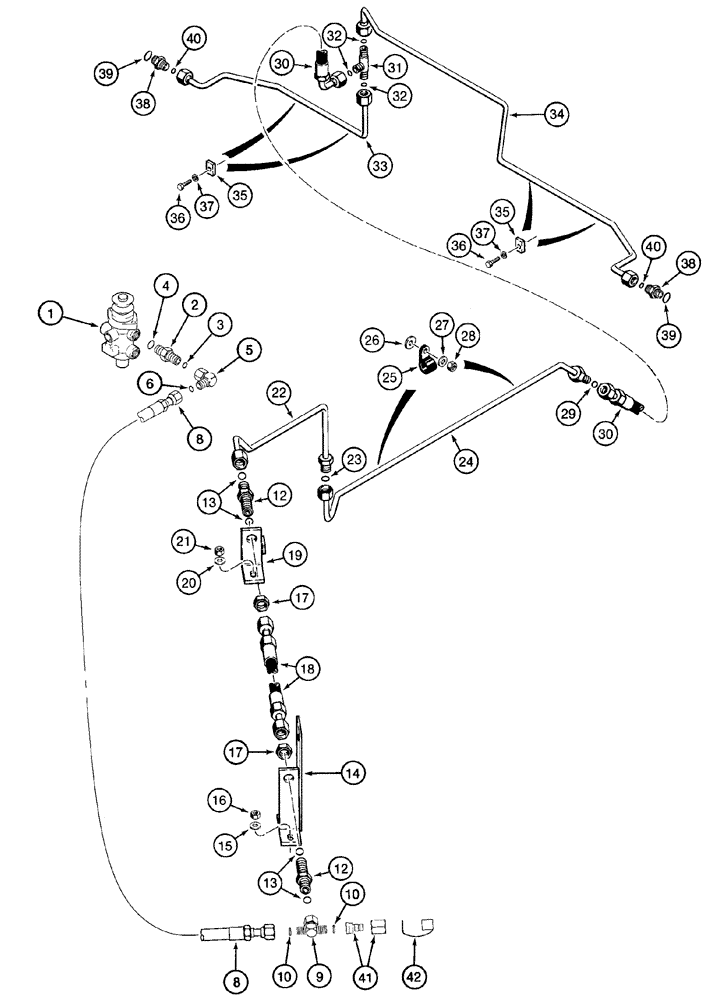

Запчасти Case 921C (07-10) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

Main Brake Valve to Front Axle

1шт.

Axle L129886

1шт.

1

REF

INSTRUCTION

Valve, Brake, Main Brake Valve, See Figure 07-16

1шт.

2

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 3, 4

1шт.

3

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

5

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

13/16 fc x sw, Incl. 6

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

227919A2

HOSE ASSY.

671 mm (26-7/16 in)

1шт.

9

201-439

TEE,1"-14 ORFS x 1"-14 Sw Br

Incl. 10

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

1 fc x 1 fc, Incl. 13

2шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

222927A1

SUPPORT

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

17

201-919

BHD LOCK NUT,1" - 14

2шт.

18

L129762

HOSE ASSY.

452 mm (17-7/8 in)

1шт.

19

102803A1

SUPPORT

1шт.

20

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

21

231-1448

NUT,1/2"-13, GB

1шт.

22

L129786

TUBE,15.87 mm OD

1шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

L129788

TUBE,15.87 mm OD

1шт.

25

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

26

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

27

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

28

231-1446

NUT,3/8" - 16, Gr 5

2шт.

29

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

L129763

HOSE ASSY.

320 mm (12-5/8 in)

1шт.

31

201-409

TEE,13/16"-16 ORFS

Incl. 32

1шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

3шт.

33

L129624

TUBE,12.7 mm OD

Left Hand Front

1шт.

34

106723A1

TUBE,12.7 mm OD, 1133, 240 mm Length

Right Hand Front

1шт.

35

L129191

CLAMP

4шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

4шт.

37

492-11025

LOCK WASHER,1/4"

4шт.

38

120782A1

ADAPTER

Incl. 39

2шт.

39

120879A1

O-RING,0.546" ID x 0.685" OD x 0.139"

1шт.

40

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Not Included With Fitting

2шт.

41

324201A1

PLUG

1шт.

42

H434163

DUST CAP

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.
