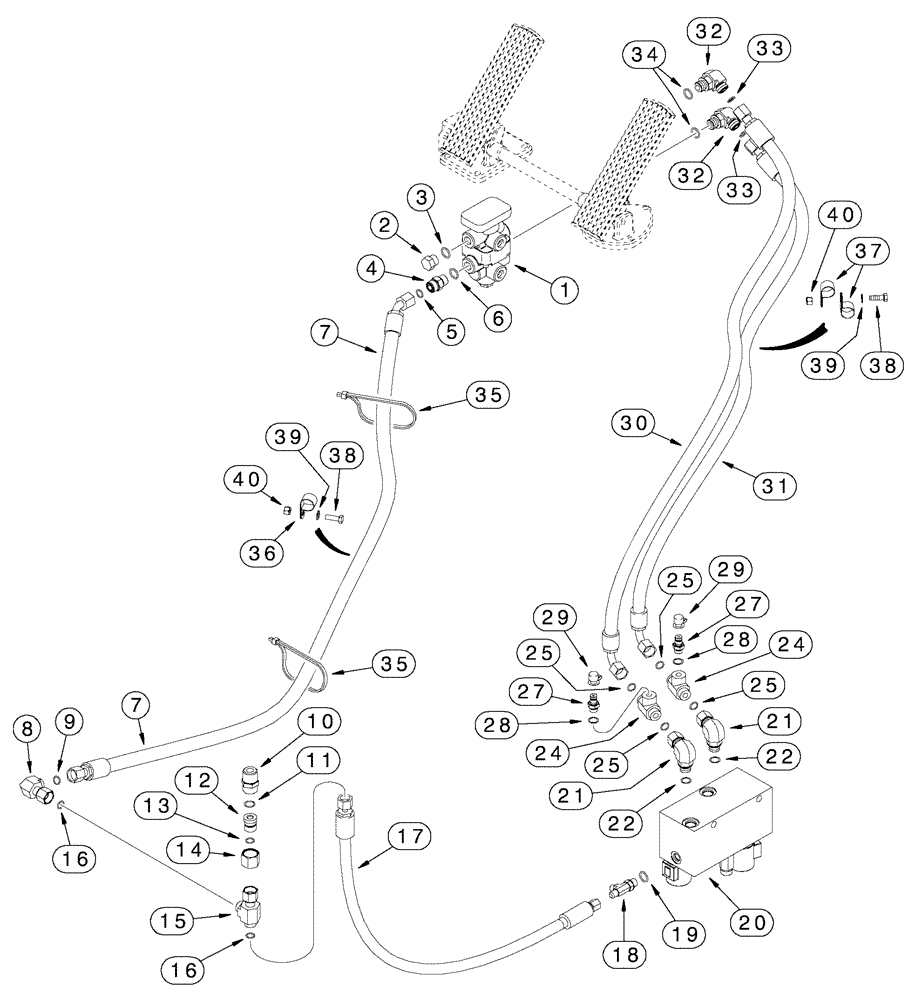

Запчасти Case 921C (07-09) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

Brake Valve to Combination Valve and Tank

1шт.

1

REF

INSTRUCTION

Valve Brake, See Figure 07-16, For Mounting, See Figure 07-05

1шт.

2

214389

PLUG,3/4" - 16 ORB

Includes Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Includes 5, 6

1шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

7

227914A1

HOSE ASSY.

1677 mm (66-1/32 in)

1шт.

8

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

13/16 fc x sw, Incl. 9

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

L129304

FITTING

Incl. 11, At Tank

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

201-146

REDUCER,13/16"-16 Male x 1"-14 Fem, ORFS

1 sw x 13/16 fc, Incl. 13

1шт.

13

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

14

203-903

TUBE NUT,1"-14 ORFS

1шт.

15

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Incl. 16

1шт.

16

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

227913A2

HOSE ASSY.

961 mm (37-7/8 in)

1шт.

18

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 19

1шт.

20

REF

INSTRUCTION

Valve, Pressure, Combination Valve, See Figure 07-08

1шт.

21

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

13/16 fc x 3/4 Or, Incl. 22, 23

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

24

L129806

TEE

Incl. 25, 26

2шт.

25

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

S243647

COUPLING

Quick Disconnect Coupling, Front and Rear Brake Test Ports, Includes 27 - 29

2шт.

27

NSS

NOT SOLD SEPARAT

Coupling

1шт.

29

S301201

CAP

Aero-Quip Stamped on Coupling, If Used

1шт.

29

H434163

DUST CAP

PD361 Stamped on Coupling, If Used

1шт.

30

227917A2

HOSE ASSY.

1379 mm (54-5/16 in), Supply, Rear Brakes

1шт.

31

227916A2

HOSE ASSY.

1257 mm (49-1/2 in), Supply, Front Brakes

1шт.

32

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 33, 34

2шт.

33

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

35

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

36

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

1шт.

37

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

2шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

40

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

38

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
