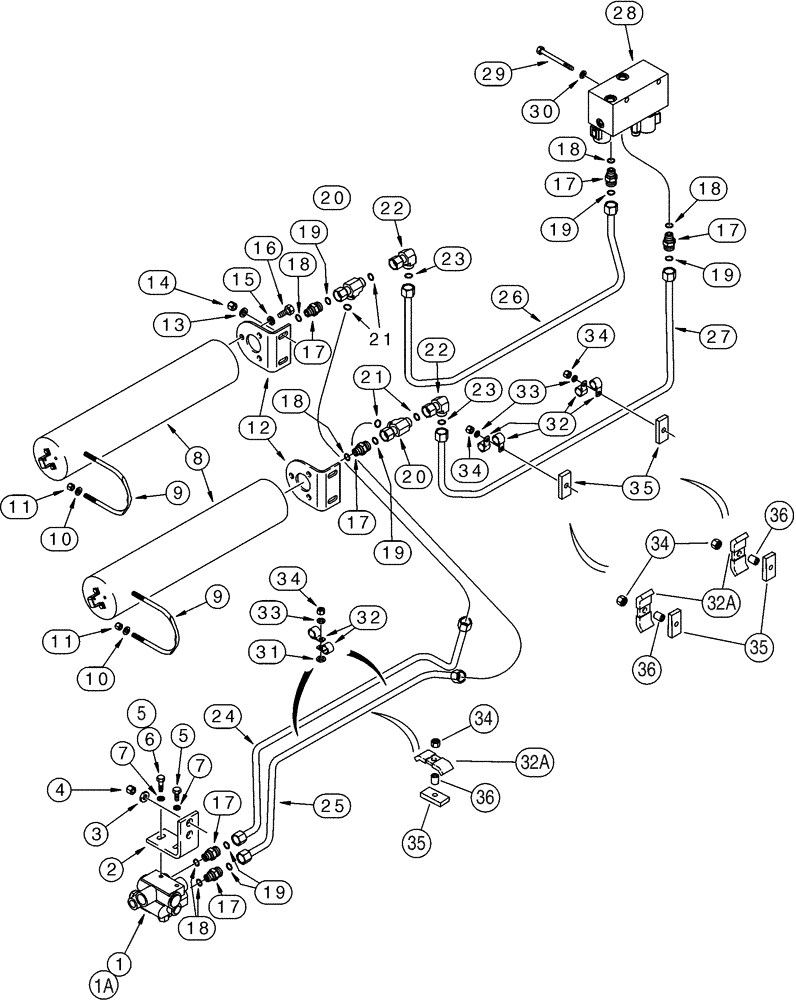

Запчасти Case 921C (07-08) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

1

313362A1

VALVE

Accumulator Charging, See Figure 07-14, -JEE0126215

1шт.

1a

426168A1

VALVE

Accumulator Charging, Component Parts Not Available at Time of Printing, JEE0126216-

1шт.

2

L129987

BRACKET

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1-2шт.

6

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

No Longer Used, Order 426-616, Ref 5

1шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

L129905

ACCUMULATOR

640 mm Long; See Figure 07-17

2шт.

8

365757A1

ACCUMULATOR

546 mm Long; See Figure 07-18

2шт.

9

L128472

U-BOLT

2шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

L129001

SUPPORT

2шт.

13

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

14

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

16

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

17

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

Incl. 18, 19

6шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

1шт.

20

201-433

TEE,1"-14 ORFS x 1"-14 Sw Run

Incl. 21

2шт.

21

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

22

201-361

ELBOW,90 Degree Elbow, 1" - 14 Male JIC x 1" - 14 Female JIC

1 fc x sw, Includes 23

2шт.

23

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

24

321448A2

TUBE

Front

1шт.

25

321450A2

TUBE

Rear

1шт.

26

220480A3

TUBE

Front

1шт.

27

220482A3

TUBE

Rear

1шт.

28

198998A4

VALVE

Combination Valve, Replaces 198998A3, See Figure 08-51, No Longer Available, Order 407165A1, REF 28; 431057A1, REF 28A; 431058A1, REF 28B

1шт.

28

407165A1

VALVE

Combination Valve, See Figure 08-52

1шт.

28a

431057A1

HARNESS

Jumper

1шт.

28b

431058A1

HARNESS

Jumper

1шт.

29

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

31

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm, Used With 32

2шт.

32

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

No Longer Used, Order D40236

8шт.

32a

D40236

CLAMP

Replaces 515-23159

3шт.

33

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Used with 32

4шт.

34

832-10410

NUT,M10 x 1.5, Cl 8

3-4шт.

35

L119350

SPACER

2-3шт.

36

D76209

SPACER

3шт.

30

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
