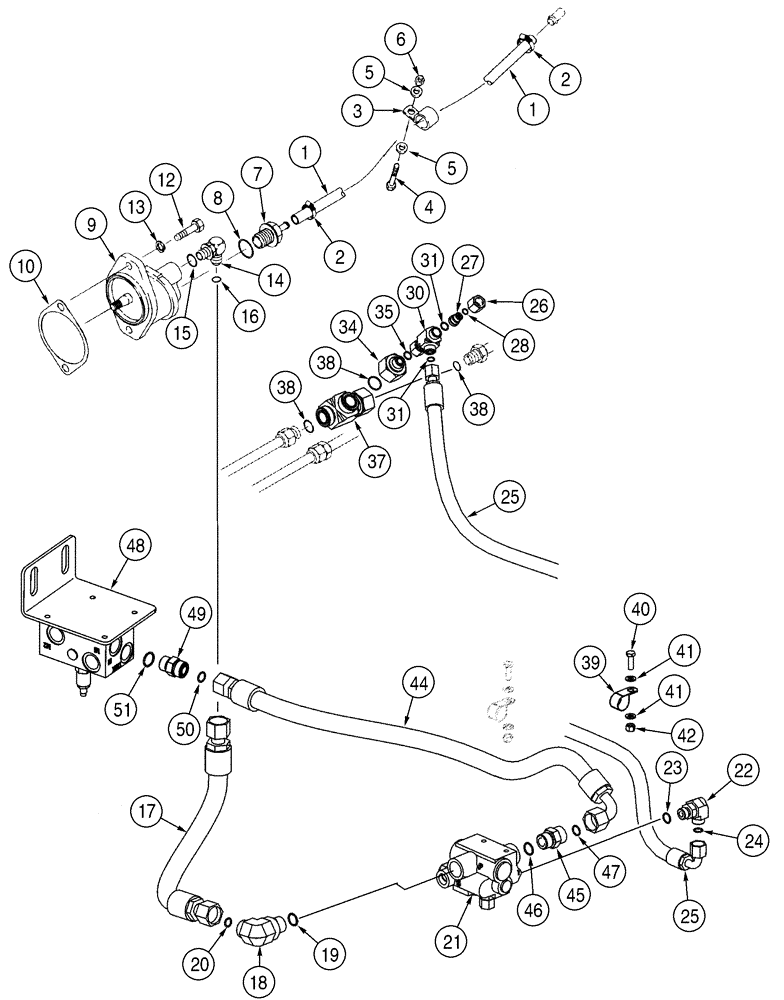

Запчасти Case 921C (07-07) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

All Models JEE0126216-

1шт.

Reservoir to Pump to Accumulator Valve

1шт.

1

433250A1

HOSE ASSY.

1675 mm (66 in), Suction

1шт.

2

353036A1

HOSE CLAMP,32mm - 54mm

2шт.

3

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

2шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

7

217-178

FITTING,1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Incl. 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

397442A1

PUMP, HYDRAULIC,33 CC

Hydraulic, Brake, Component Parts Not Available at Time of Printing; Incl. Refs. 9A, 9B

1шт.

9a

84184159

SEAL KIT

KIT, SEALS, Brake Pump; Not Illustrated

1шт.

9b

84184166

SEAL

SEAL, Brake Pump Shaft; Not Illustrated

1шт.

10

A77441

GASKET

1шт.

12

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

2шт.

13

892-11012

LOCK WASHER,M12

2шт.

14

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-3/16 fc x 1-5/16 Or, Incl. 15, 16

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Boss End

1шт.

16

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

1шт.

17

321588A2

HOSE ASSY.

1005 mm (39-9/16 in), Pump to Accumulator Valve, Brake Return

1шт.

18

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

1-3/16 fc x 1-1/16 Or, Incl. 19, 20

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

21

426168A1

VALVE

Brake Accumulator Valve, Component Parts Not Available at Time of Printing, For Mounting, See Page(s) 7-19

1шт.

22

201-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Incl. 23, 24

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

24

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

25

321588A2

HOSE ASSY.

1005 mm (39-9/16 in)

1шт.

26

203-902

TUBE NUT,13/16"-16 ORFS

1/2 in

1шт.

27

201-110

REDUCER,9/16" - 18 Male ORFS x 13/16" - 16 Female ORFS

Incl. 28

1шт.

28

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

30

201-416

TEE,13/16"-16 ORFS x 13/16"-16 Sw Run

Incl. 31

1шт.

31

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

33

203-905

TUBE NUT,1 7/16"-12 ORFS

1 in

1шт.

34

201-149

REDUCER,13/16"-16 Male x 1 7/16"-12 Fem, ORFS

Incl. 35, 36

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

37

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

Incl. 38, To Cooler Tubes

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

39

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

40

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

41

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.

42

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

43

515-23254

CLAMP,1", Insul, 3/8" Bolt

Use Existing Hardware

1шт.

44

433528A1

HOSE ASSY.

910 mm (35-7/8 in)

1шт.

45

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Includes 46, 47

1шт.

46

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

47

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal End

1шт.

48

433292A2

VALVE, PRESSURE RELI

EF Fan Drive, See Figure 08-53

1шт.

49

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

Incl 50, 51

1шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

50

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal End

1шт.
