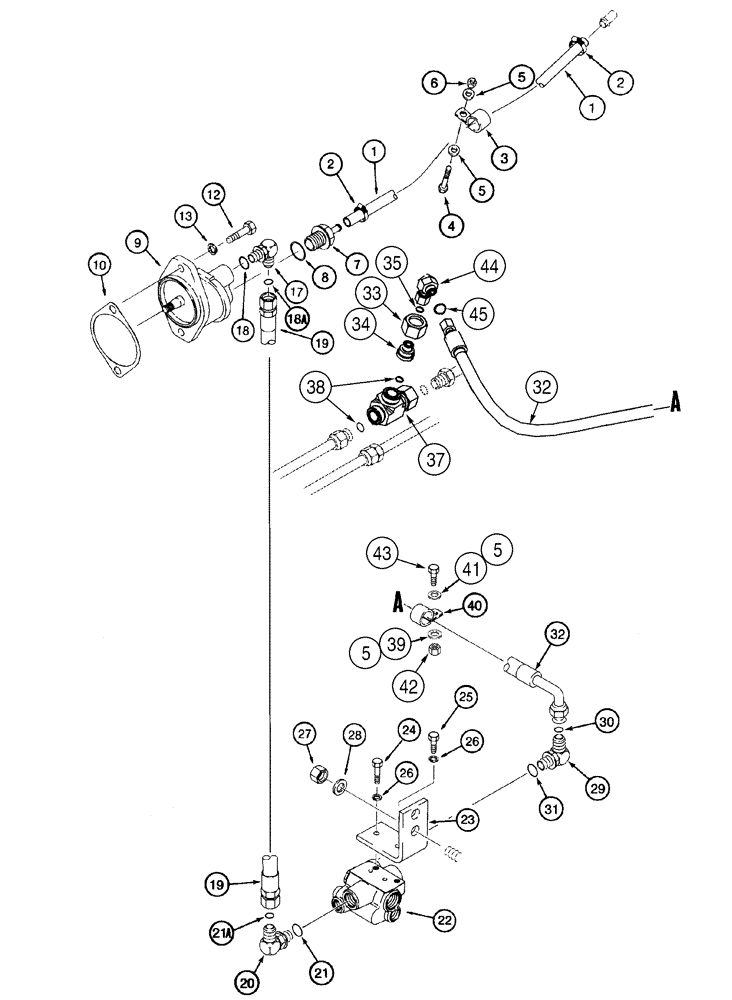

Запчасти Case 921C (07-06) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

All Models -JEE0126215

1шт.

Reservoir to Pump to Accumulator Valve

1шт.

1

227915A1

HOSE

1727 mm (68 in), Suction, Cut From 31-3120

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

515-24317

CLAMP,1 1/4", Insul, 7/16" Bolt

3шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

3/4 stem x 1-1/16 Or, Includes 8

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

317022A1

PUMP

Brake, See Figure 07-15

1шт.

10

1342757C1

GASKET

1шт.

12

L125431

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 8.8

M10 x 35

2шт.

13

892-11010

LOCK WASHER,M10

2шт.

17

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Incl. 18, 18A

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Boss End

1шт.

18a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

19

L128606

HOSE ASSY.

450 mm (17-3/4 in), Pump to Accumulator Valve

1шт.

20

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

Incl. 21, 21A

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

21a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

22

313362A1

VALVE

Brake Accumulator Valve, See Figure 07-14

1шт.

23

L129987

BRACKET

1шт.

24

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

No Longer Used, Order 426-616, Ref 25

1шт.

25

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1-2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

28

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

29

201-327

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 1-1/16" - 12 Male ORB

Incl. 30, 31

1шт.

30

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal End

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss End

1шт.

32

321588A1

HOSE ASSY.

955 mm (37-5/8 in), No Longer Used, Order 321588A2

1шт.

32

321588A2

HOSE ASSY.

1005 mm (39-9/16 in)

1шт.

33

203-905

TUBE NUT,1 7/16"-12 ORFS

1 in

1шт.

34

201-149

REDUCER,13/16"-16 Male x 1 7/16"-12 Fem, ORFS

Incl. 35

1шт.

35

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

37

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

Incl. 38, To Cooler Tubes

1шт.

39

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm, No Longer Used, Order 895-11010, REF 5

1шт.

40

515-23254

CLAMP,1", Insul, 3/8" Bolt

1шт.

41

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

No Longer Used, Order 895-11010, Ref. 5

1шт.

42

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

43

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

44

201-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

13/16 fc x sw, Incl. 45

1шт.

45

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

4

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.
