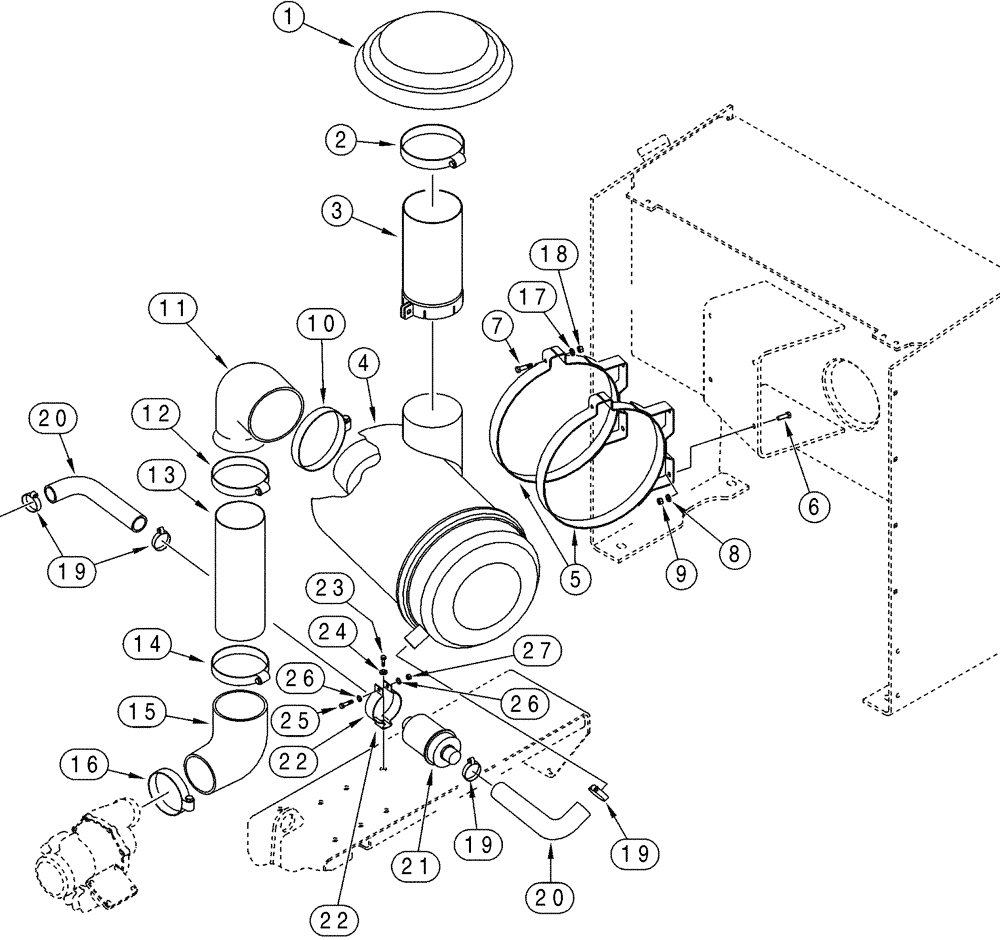

Запчасти Case 921C (02-07) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

All Models -JEE0126215

1шт.

1

9-128

CAP

Incl. 2

1шт.

2

214-31112

HOSE CLAMP,6-1/4" - 7-1/8", HD Worm

1шт.

3

L129742

EXTENSION

1шт.

4

90-7743T91

AIR CLEANER

See Figure 02-09

1шт.

5

90-3871T1

CLIP

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

7

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

2шт.

8

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

4шт.

10

L129160

CLAMP,158.75mm - 180.97mm

1шт.

11

L128442

ELBOW

1шт.

12

L129159

CLAMP,5-1/4" - 6-1/8", Worm Gear

1шт.

13

L128443

TUBE,127 mm OD x 407 mm L

1шт.

14

L124802

COLLAR CLAMP

1шт.

15

9-94

HOSE,4.0 " ID, 5.0 ID

1шт.

16

L124635

HOSE CLAMP

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

18

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

19

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

20

107777A1

ELBOW

2шт.

21

90-7640T1

VALVE

1шт.

22

90-7639T1

CLAMP

1шт.

23

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

25

827-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.
