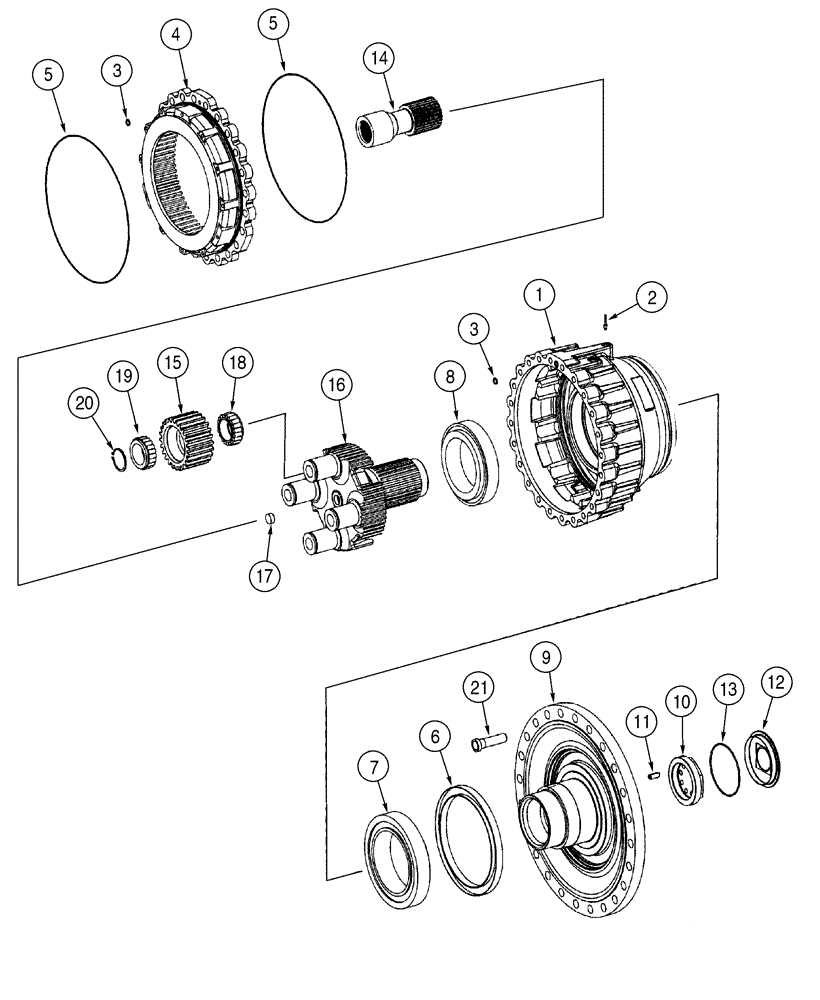

Запчасти Case 921C (07-03) - AXLE, FRONT AND REAR - HUB, PLANETARY JEE0123252- (07) - BRAKES

REF

INSTRUCTION

USED ON ZF AXLE, ASN JEE0123252

1шт.

1

384536A1

HOUSING

No Longer Used; Order 87437913

2шт.

1

87437913

HOUSING

2шт.

2

384293A1

PLUG

2шт.

3

384294A1

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

4шт.

4

384410A1

GEAR

No Longer Used; Order 8605363

2шт.

4

8605363

GEAR

2шт.

5

384296A1

O-RING

4шт.

6

384297A1

SEAL

2шт.

7

384537A1

TAPERED BEARING,150mm ID x 225mm OD x 48mm W

2шт.

8

384538A1

BEARING, ROLLER

No Longer Used; Order 8603611

2шт.

8

8603611

TAPERED BEARING,140mm ID x 210mm OD x 45mm W

2шт.

9

384539A1

FLANGE

Output

2шт.

10

384540A1

NUT

2шт.

11

384302A1

PIN

2шт.

12

384303A1

COVER

2шт.

13

331982A1

O-RING

2шт.

14

384542A1

SHAFT

14 T, Shaft

2шт.

15

384543A1

GEAR

27T, Planetary

8шт.

16

384544A1

CARRIER

Planetary; No Longer Used; Order 87437910

2шт.

16

87437910

CARRIER

2шт.

17

384309A1

BOLT

2шт.

18

384546A1

ROLLER BEARING,55mm ID x 29mm W

Inner

8шт.

19

384547A1

ROLLER BEARING

Inner

8шт.

20

898183H1

RETAINER

8шт.

21

120098A1

WHEEL BOLT

48шт.
