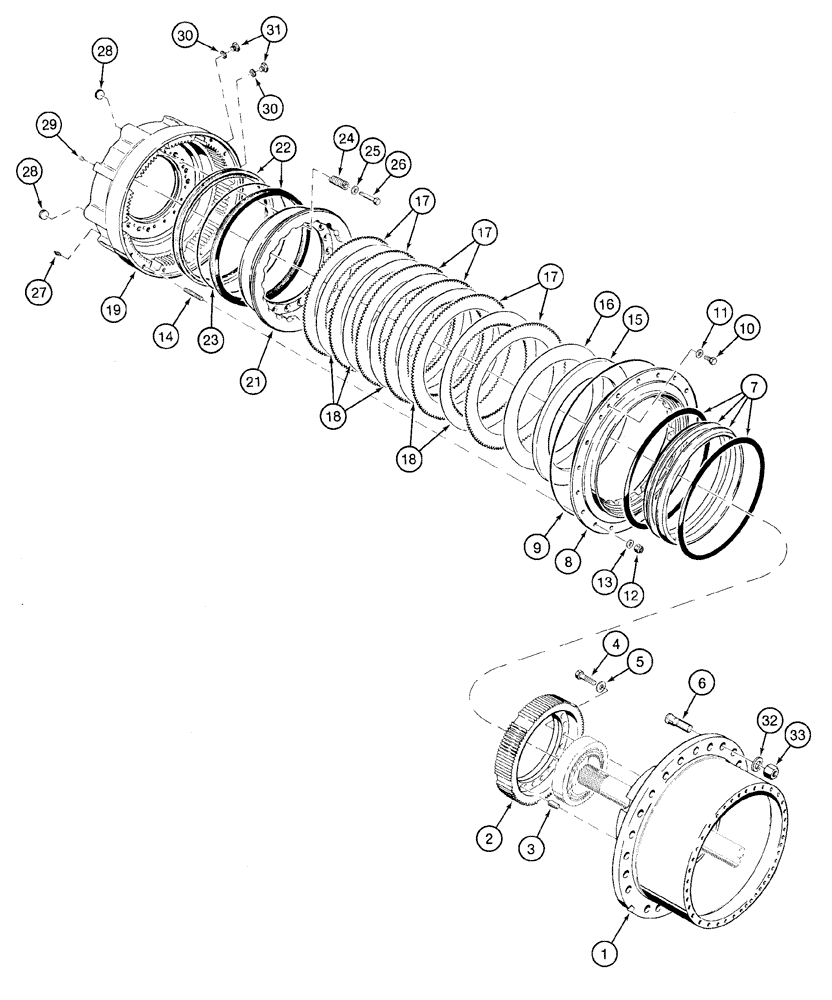

Запчасти Case 921C (07-02) - BRAKES, FRONT AND REAR AXLE - HUB AND DISC -JEE0123251 (07) - BRAKES

REF

INSTRUCTION

USED ON DANA AXLE, BSN JEE0123251

1шт.

L129886

AXLE HOUSING

Incl. Figures 06-22, 06-25, 07-02, If Used

1шт.

L129887

AXLE HOUSING

Incl. Figures 06-24, 06-25, 07-02, If Used

1шт.

L129888

AXLE HOUSING

With No-Spin Differential, Incl. Figures 06-24, 06-25, 07-02, If Used No Longer Used

1шт.

S301715

HUB ASSY.

Incl. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

Hub

1шт.

2

S301706

PINION

1шт.

3

S301716

DOWEL

2шт.

4

S301814

BOLT

15шт.

5

D74504

WASHER

15шт.

6

S301019

STUD

46шт.

7

S301717

SET

Incl. (2) O-Rings and (2) Seals, Which Are Not Serviced Separately

2шт.

8

S301745

SUPPORT

2шт.

9

S301744

O-RING,0.21" Thk x 19.95" ID, -389, 70 Duro

2шт.

10

S301747

SCREW

4шт.

11

S301746

WASHER

4шт.

12

232-4618

LOCK NUT,1/2"-20, GC

36шт.

13

D74508

WASHER

36шт.

14

S301726

STUD

36шт.

14a

338650A1

O-RING

Not Illustrated

72шт.

15

S301718

LARGE PLATE

PLATE, LARGE

2шт.

16

S301719

BLOCK

0.25 mm thk

1шт.

16

S301720

BLOCK

0.50 mm thk

1шт.

16

S301721

BLOCK

0.75 mm thk

1шт.

16

S301722

BLOCK

1.00 mm thk

1шт.

17

100049A1

DISC

12шт.

18

100050A1

DISC

10шт.

242934A1

HUB

Right Hand, Incl. 19, 21 - 26

1шт.

242935A1

HUB

Left Hand, Incl. 20 - 26, Not Illustrated

1шт.

19

S301727

HOUSING

Right Hand

1шт.

20

S301728

HOUSING

Left Hand, Not Illustrated

1шт.

21

242933A1

PISTON

2шт.

22

S301739

SEAL

4шт.

23

S301740

O-RING,380.37mm ID x 6.99mm Width

2шт.

24

S301741

SPRING

20шт.

25

S301742

WASHER

20шт.

26

S301743

BOLT

20шт.

27

S301729

PLUG

2шт.

28

K12362

PLUG

4шт.

29

NSS

NOT SOLD SEPARAT

Plug

1шт.

30

S301737

WASHER

4шт.

31

S301738

PLUG

4шт.

32

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

92шт.

33

429-1714

NUT,7/8"-14, G8, Hvy

92шт.
