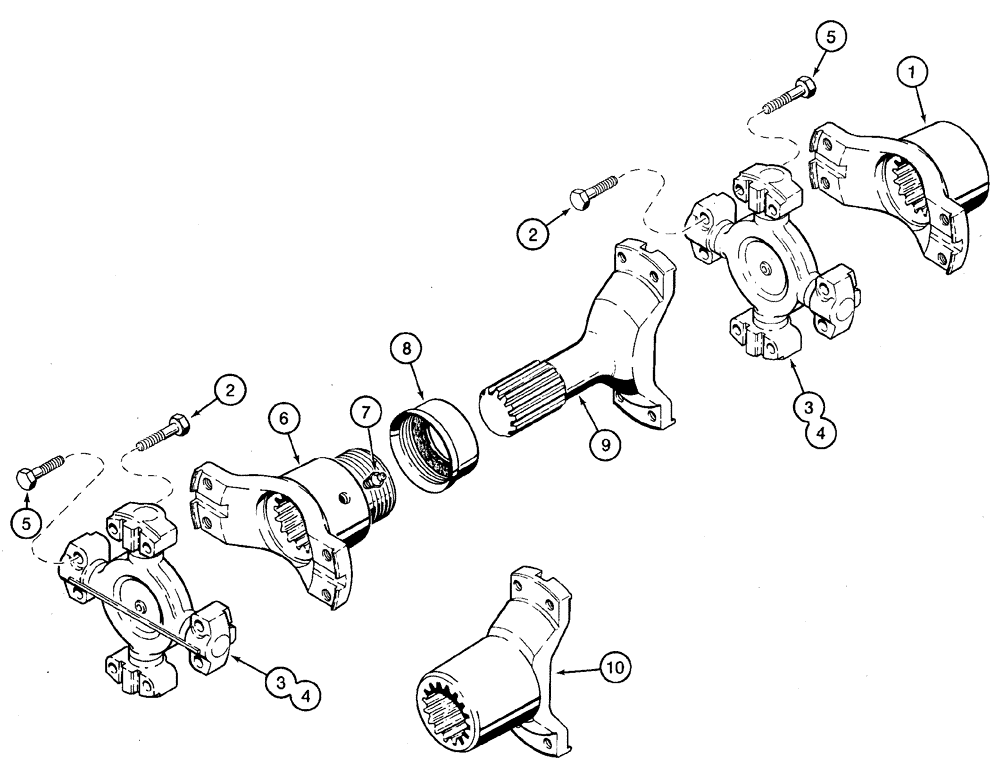

Запчасти Case 921C (06-38) - DRIVE SHAFT, REAR (06) - POWER TRAIN

1

REF

INSTRUCTION

Flange, Transmission to Rear Drive Shaft, See Figure 06-17 or 06-20M

1шт.

2

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2 NF x 2; 8

8шт.

L127797

SHAFT ASSY.

Rear Drive Axle, Incl. 3 - 9, -JEE0123251

1шт.

311318A1

DRIVE SHAFT

Rear Drive Axle, Incl. 3 - 9, JEE0123252-

1шт.

S301993

BEARING ASSY,6.88" ID x 8.5" OD x 1.94"

2шт.

3

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

4

NSS

NOT SOLD SEPARAT

Race

4шт.

5

S301992

SCREW

4шт.

S301996

YOKE

UNIVERSAL JOINT YOKE Axle End, Incl. 6 - 8, No Longer Available, Order 388472A1

1шт.

388472A1

FLANGE

Axle End, Incl. 6 - 8, Replaces S301996

1шт.

6

NSS

NOT SOLD SEPARAT

Yoke

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

S301995

SEAL ASSY.

Used With L127797

1шт.

8

117789A1

CAP

Used With 311318A1

1шт.

9

S302023

JAW

Transmission End, No Longer Used, Order 388473A1

1шт.

9

388473A1

FLANGE

Transmission End, Replaces S302023

1шт.

10

REF

INSTRUCTION

Flange, Drive Shaft to Rear Axle, See Figure 06-24, REF 2, 06-34, REF 14

1шт.
