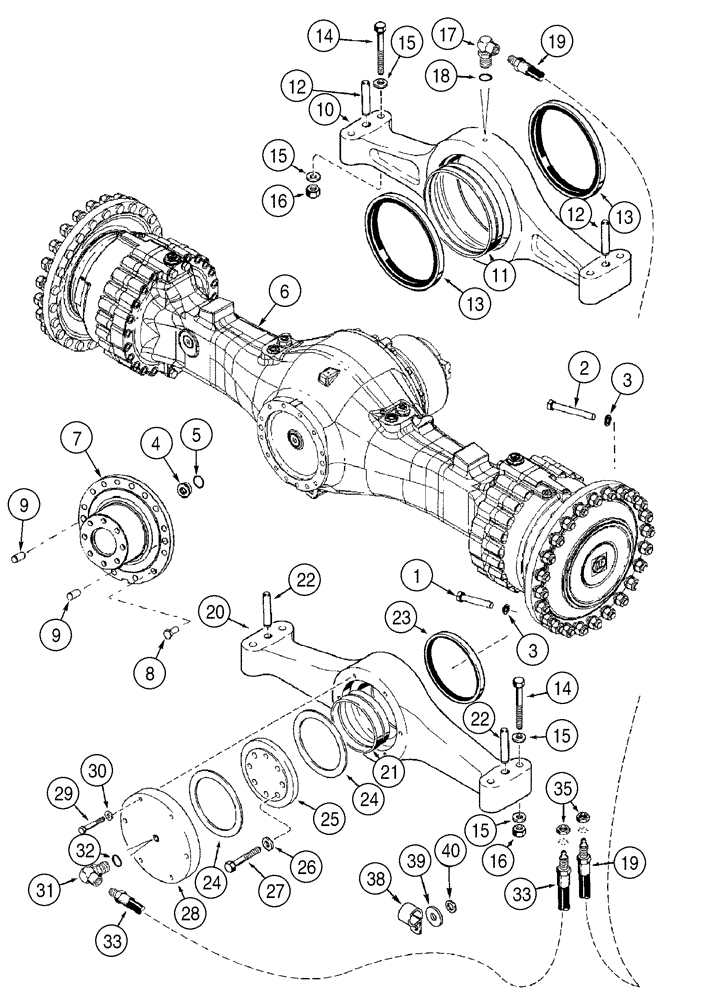

Запчасти Case 921C (06-32) - AXLE, REAR - MOUNTING JEE0123252- (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
Includes Trunnions and Lubrication Lines
1шт.
1
934957R1
BOLT
M18 x 105
44шт.
2
384403A1
BOLT
M18 x 140
4шт.
3
A48928
WASHER
48шт.
4
384280A1
PLUG
1шт.
5
81284C1
O-RING,2.2mm Thk x 33mm ID
1шт.
6
384558A1
AXLE HOUSING
1шт.
7
384561A1
COVER
1шт.
8
626-16040
BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd
Hex, M16 x 40, 10.9, Full Thd
14шт.
9
384562A1
PIN
M6 x 40
2шт.
10
310936A2
TRUNNION
Axle Mounting, Front, Incl. 11, 12
1шт.
11
313960A2
BUSHING,290.88mm ID x 303.34mm OD x 50mm L
1шт.
12
37-11236
DOWEL,3/4" x 2 1/4"
2шт.
13
314468A1
OIL SEAL
2шт.
14
326-14112
BOLT,Hex, 7/8" - 9 x 7", Gr 8
8шт.
15
S92341
WASHER
16шт.
16
329-1014
NUT,7/8"-9, G8
8шт.
17
218-5450
ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem
Incl. 18
1шт.
18
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
19
310609A1
HOSE ASSY.
1642 mm (64-5/8 in), Lubrication
1шт.
20
310934A1
TRUNNION
Axle Mounting, Rear, Incl. 21, 22
1шт.
21
105887A1
BUSHING,170.23mm ID x 182.78mm OD x 64mm L
1шт.
22
37-11236
DOWEL,3/4" x 2 1/4"
3/4 x 2-1/4
2шт.
23
L128291
SEAL
1шт.
24
L128209
WASHER,172.2mm ID x 216mm OD x 5mm Thk
2шт.
25
L128277
SPACER
1шт.
26
896-11016
WASHER,17.5mm ID x 30mm OD x 4mm Thk
8шт.
27
827-16075
BOLT,Hex, M16 x 2 x 75mm, Cl 10.9
8шт.
28
L128278
COVER
1шт.
29
426-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8
6шт.
30
496-21053
WASHER,17/32" x 1 1/16" x .134"
6шт.
31
218-5450
ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem
Includes 32
1шт.
32
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
33
310610A1
HOSE ASSY.
2413 mm (95 in), Lubrication, Rear Trunnion
1шт.
35
F53473
LOCK NUT,1/8-27 NPSM
1/8 PT
2шт.
36
496-31094
WASHER,15/16" x 1 3/4" x .219", HDN
48шт.
37
429-1714
NUT,7/8"-14, G8, Hvy
48шт.
38
515-2495
CLAMP,3/8", Insul, 7/16" Bolt
6шт.
39
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
13,5 x 28 x 4 mm
1шт.
40
895-18010
WASHER,10.5mm ID x 18mm OD x 1.6mm Thk
3шт.
Выбрано товаров: 40
