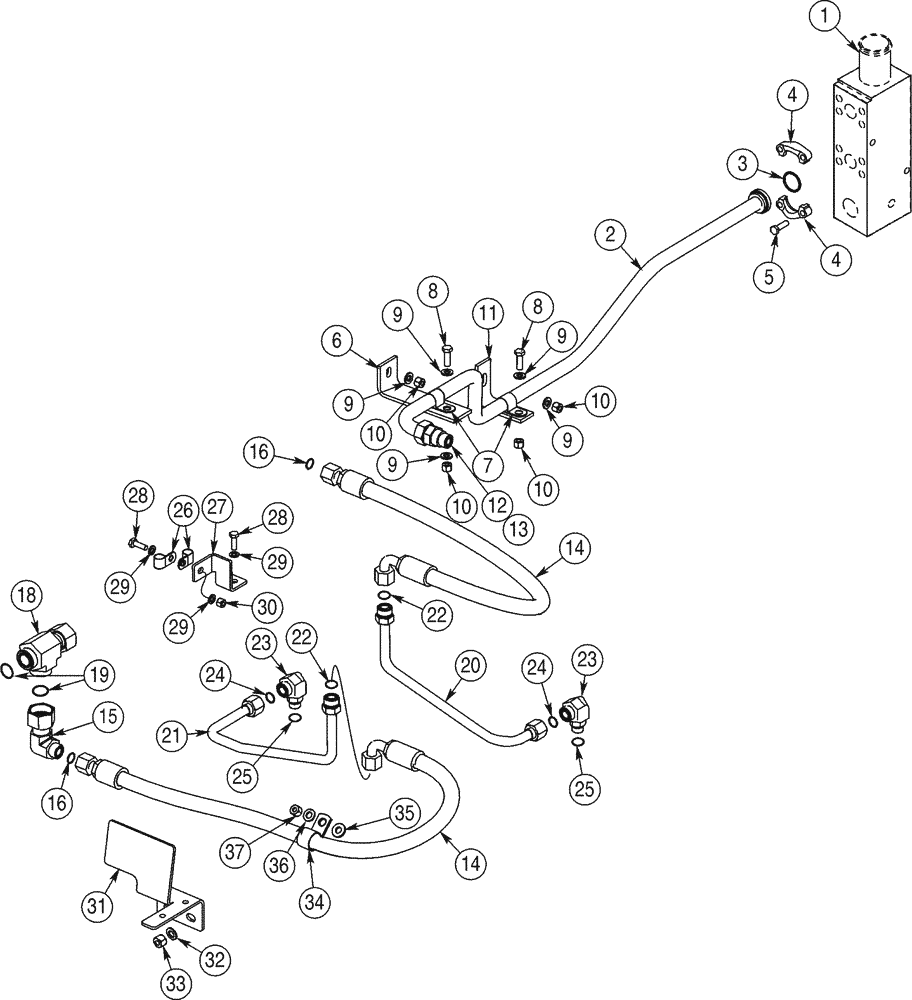

Запчасти Case 921C (06-31) - HYDRAULICS - AXLE, REAR (06) - POWER TRAIN

All Models JEE0126216-

1шт.

1

L127968

VALVE BODY

Cooler Bypass Valve, See Figure 08-02, For Mounting, See Figure 08-03

1шт.

2

433232A1

TUBE

Return

1шт.

3

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

4

A12306

FLANGE

2шт.

5

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

6

L129274

SUPPORT

1шт.

7

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

9

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

5шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

11

L129205

SUPPORT

1шт.

12

201-124

REDUCER,1"-14 Male x 1 3/16"-16 Fem, ORFS

1 fc x 1-3/16 fc, Incl. 13

1шт.

13

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

363722A1

HOSE ASSY.

959 mm (37-3/4 in)

2шт.

15

201-368

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1-7/16" - 12 Female ORFS

1-7/16 fc x 1 sw, Incl. 16

1шт.

18

201-418

TEE,1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS x 1-7/16" - 12 ORFS

Incl. 19, From Cooler Outlet To Bypass Valve, See Figure 08-07, REF 6

1шт.

19

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

20

363477A1

TUBE

Right Hand

1шт.

21

363488A1

TUBE

Left Hand

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

23

201-343

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

1 in fc x 3/4 Or, Incl. 24, 25

2шт.

24

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

1шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

26

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

27

367363A1

BRACKET

1шт.

29

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

31

389642A3

GUARD

Engine

1шт.

32

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

33

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

34

D34033

CLAMP

1-3/16 ID

1шт.

35

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

36

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

37

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

28

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

16

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.
