Запчасти Case 921C (06-26) - HYDRAULICS - AXLE, FRONT JEE0123252- (06) - POWER TRAIN

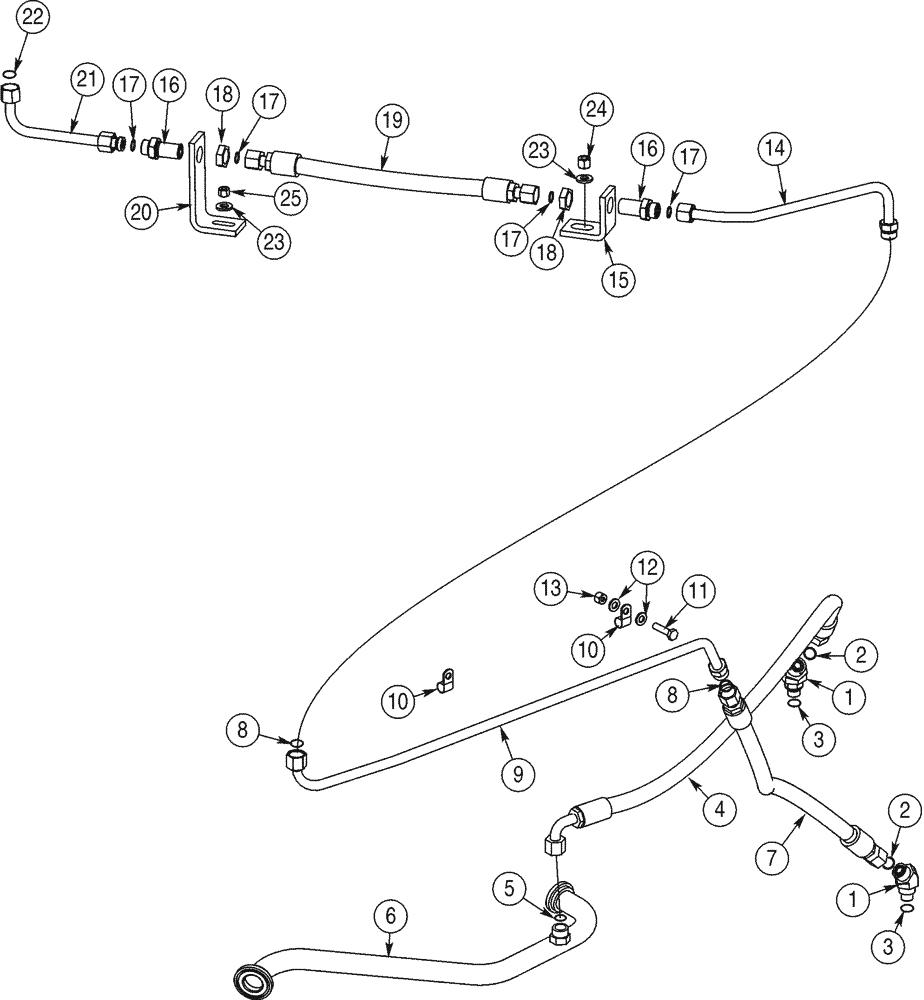

Схема запчастей Case 921C - (06-26) - HYDRAULICS - AXLE, FRONT JEE0123252- (06) - POWER TRAIN
1
23
11
13
8
17
7
16
3
23
1
17
6
17
4
2
21
14
10
2
24
15
10
16
20
18
17
8
25
3
12
22
18
19
9
5

Артикул

Название

Примечание

Количество

1

201-337

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 3/4" - 16 Male ORB

1 fc x 3/4 Or, Incl. 2, 3

2шт.

2

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal End

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

4

363761A1

HOSE ASSY.

1084 mm (42-11/16 in)

1шт.

5

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

6

363759A1

TUBE

See Figure 08-05, REF 1A

1шт.

7

363760A2

HOSE ASSY.

581 mm (22-7/8 in), Return

1шт.

8

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

9

358240A2

TUBE

1шт.

10

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

11

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

12

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

358242A1

TUBE,15.87 mm OD, 364, 115 mm Length

1шт.

15

359066A1

BRACKET

1шт.

16

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

1 fc x 1 bkhd fc, Bulkhead, Incl. 17

2шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

18

201-919

BHD LOCK NUT,1" - 14

2шт.

19

344567A1

HOSE ASSY.

452 mm (17-7/8 in)

1шт.

20

359110A1

BRACKET

1шт.

21

358894A1

TUBE,15.87 mm OD, 199, 65 mm Length

1шт.

22

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

24

231-1448

NUT,1/2"-13, GB

1шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

Выбрано товаров: 25
