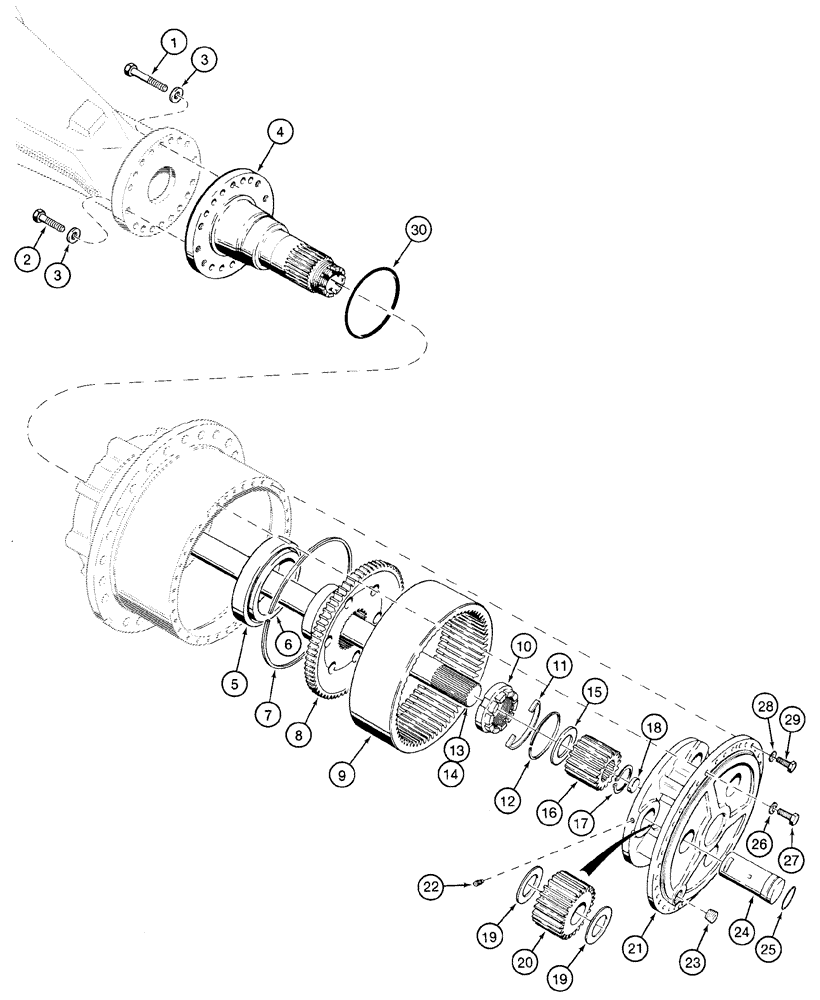

Запчасти Case 921C (06-25) - AXLE, FRONT AND REAR - PLANETARY -JEE0123251 (06) - POWER TRAIN

L129886

AXLE HOUSING

Incl. Figures 06-22, 06-25, 07-02, If Used

1шт.

L129887

AXLE HOUSING

Incl. Figures 06-24, 06-25, 07-02, If Used

1шт.

L129888

AXLE HOUSING

With No-Spin Differential, Incl. Figures 06-24, 06-25, 07-02, If Used No Longer Used

1шт.

1

S301734

BOLT

24шт.

2

S301735

BOLT

12шт.

3

S301733

WASHER

36шт.

3a

338650A1

O-RING

Not Illustrated

36шт.

4

S301732

HUB

2шт.

S301714

BEARING ASSY

Incl. 5, 6

4шт.

5

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

6

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

7

N6230

RING, SNAP

RING SNAP

2шт.

8

S301712

GEAR

2шт.

9

S301711

PINION

Planetary

2шт.

10

N7081

NUT

2шт.

11

N6233

RING, SNAP

RING SNAP Use 2 Per Spindle

4шт.

12

N6234

NUT

2шт.

13

S301750

SHAFT

Long, Front or Rear Axle

1шт.

14

S301749

SHAFT

Short, Front or Rear Axle

1шт.

15

N6261

WASHER

2шт.

16

S301751

GEAR

Planetary

2шт.

17

S301707

CIRCLIP

2шт.

18

D74467

PLUG

2шт.

19

N6261

WASHER

Pinion Gear

12шт.

20

S301705

PINION

Planetary

6шт.

21

N6238

GEAR WHEEL

Planetary

2шт.

22

N6241

SET SCREW,M10 x 1.5 x 1.5mm, Gr 8.8

6шт.

23

D74516

PLUG

2шт.

24

N6240

SHAFT

6шт.

25

N6262

O-RING,54.5mm ID x 3mm Width

6шт.

26

N7459

STOP

6шт.

27

804-14035

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

M14 x 35; 10.9

2шт.

28

D74508

WASHER

70шт.

29

804-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

M12 x 35; 10.9

70шт.

30

S301736

O-RING,259.3mm ID x 5.7mm Width

2шт.
