Запчасти Case 921C (06-24) - AXLE, REAR - DIFFERENTIAL AND CARRIER -JEE0123251 (06) - POWER TRAIN

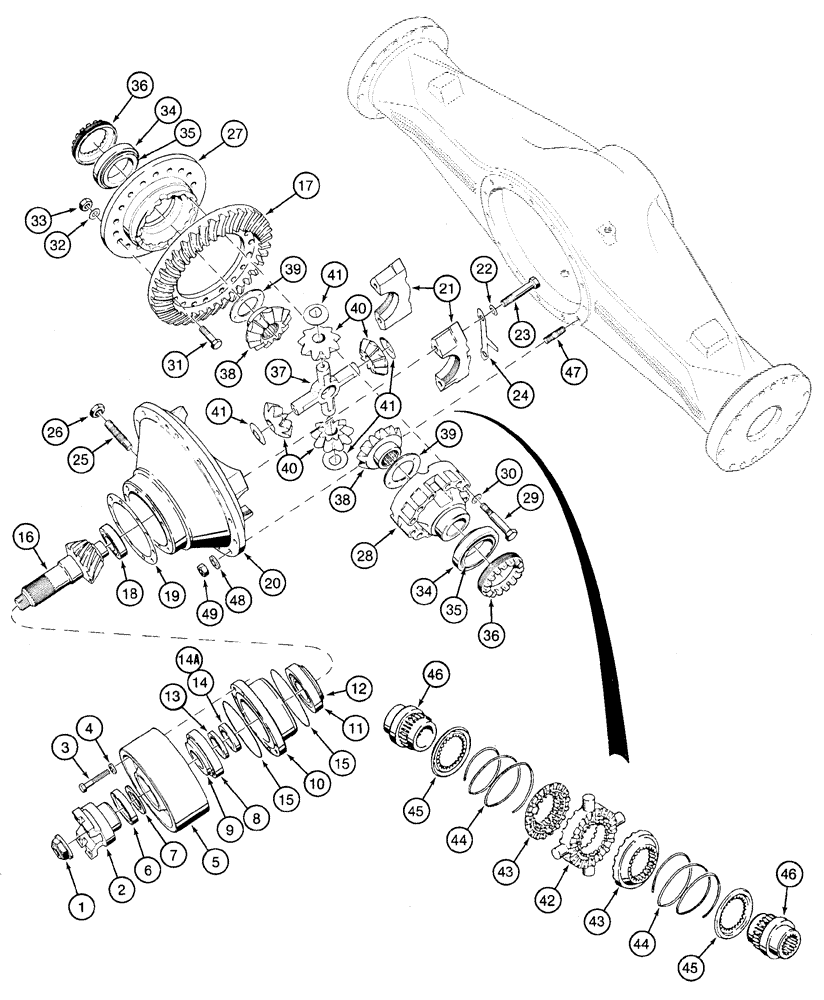

Схема запчастей Case 921C - (06-24) - AXLE, REAR - DIFFERENTIAL AND CARRIER -JEE0123251 (06) - POWER TRAIN
2
34
44
39
21
43
49
14a
14
41
23
33
9
6
31
7
39
30
13
45
46
10
38
5
40
12
3
43
29
34
28
40
16
4
1
42
27
20
11
35
17
44
8
22
46
24
36
41
32
41
37
19
18
36
15
47
25
48
45
35
38
26
15

Артикул

Название

Примечание

Количество

L129887

AXLE HOUSING

Incl. Figures 06-24, 06-25, 07-02, If Used

1шт.

L129888

AXLE HOUSING

With No-Spin Differential, Incl. Figures 06-24, 06-25, 07-02, If Used No Longer Used

1шт.

100057A1

DIFFERENTIAL

Axle, Incl. 1 - 41, 47 - 49, If Used

1шт.

100058A1

DIFFERENTIAL

Axle, With No-Spin Differential, Incl. 1 - 36, 42 - 49, No Longer Used

1шт.

1

S301756

FLANGE NUT

1шт.

2

S301757

FLANGE

1шт.

3

S301758

BOLT

10шт.

4

D74508

WASHER

10шт.

5

S301759

RETAINER

Pinion Shaft

1шт.

6

S301806

OIL SEAL

1шт.

7

S301805

WASHER

1шт.

S301813

CAGE

Pinion Shaft, Incl. 8 - 14

1шт.

S301804

BEARING ASSY,61.92mm ID x 146.06mm OD x 41.38mm W

Incl. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

9

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

129473A1

CYLINDER END CAP

Pinion Shaft, Incl. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Cage

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

100394A1

BEARING ASSY

Incl. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

12

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

13

S301803

SPACER

12 mm thk

1шт.

14

S301793

SPACER

15.675 mm thk

1шт.

14a

S301790

SPACER

15 mm thk

1шт.

14a

S301791

SPACER

15.225 mm thk

1шт.

14a

S301792

SPACER

15.450 mm thk

1шт.

14a

S301794

SPACER

11.4 mm thk

1шт.

14a

S301795

SPACER

11.425 mm thk

1шт.

14a

S301796

SPACER

11.450 mm thk

1шт.

14a

S301797

SPACER

11.475 mm thk

1шт.

14a

S301798

SPACER

11.5 mm thk

1шт.

14a

S301799

SPACER

11.525 mm thk

1шт.

14a

S301800

SPACER

11.55 mm thk

1шт.

14a

S301801

SPACER

11.575 mm thk

1шт.

14a

S301802

SPACER

11.6 mm thk

1шт.

15

S301789

O-RING,179.5mm ID x 3mm Width

2шт.

100052A1

GEAR SET

BEVEL GEAR Differential, Incl. 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft, Pinion

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Gear

1шт.

18

319393A1

BALL BEARING,44.99mm ID x 100mm OD x 25mm W

1шт.

19

S301761

SHIM,0.076mm Thk

(.003")

1шт.

19

S301762

SHIM,0.127mm Thk

(.005")

1шт.

19

S301763

SHIM,0.254mm Thk

(.010")

1шт.

S301764

HOUSING

Incl. 20 - 23

1шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.

21

NSS

NOT SOLD SEPARAT

Cap

2шт.

22

S301810

WASHER

4шт.

23

S301811

BOLT

4шт.

24

S301781

PLATE

2шт.

25

N6213

SCREW,M22 x 2.5 x 2.5mm

Carrier

1шт.

26

N6255

LOCK NUT

1шт.

S301768

CAGE

Differential, Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

28

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

29

S301782

BOLT

12шт.

30

S300312

WASHER

12шт.

31

S301767

BOLT

18шт.

32

D74504

WASHER

18шт.

33

S301311

NUT

18шт.

S301453

BEARING ASSY

Incl. 34, 35

2шт.

34

NSS

NOT SOLD SEPARAT

Bearing, Cup

1шт.

35

NSS

NOT SOLD SEPARAT

Bearing, Cone

1шт.

36

S301770

RING

2шт.

37

S301784

DIFF. SPIDER

Differential, L129887 Axle Only

1шт.

38

S301772

GEAR

Side, L129887 Axle Only

2шт.

39

S301783

WASHER

Side Gear, L129887 Axle Only

2шт.

40

S301785

PINION

Pinion, L129887 Axle Only

4шт.

41

S301786

WASHER

Pinion, L129887 Axle Only

4шт.

S301984

DIFFERENTIAL

No-Spin, L129888 Axle Only, Incl. 42 - 46

1шт.

42

S301985

DIFF. SPIDER

Differential

1шт.

43

S301986

CLUTCH

2шт.

44

S301987

SPRING

2шт.

45

S301988

STOP

2шт.

46

S301989

GEAR

2шт.

47

S301780

STUD

14шт.

48

D74504

WASHER

14шт.

49

S300311

NUT

14шт.

Выбрано товаров: 77
