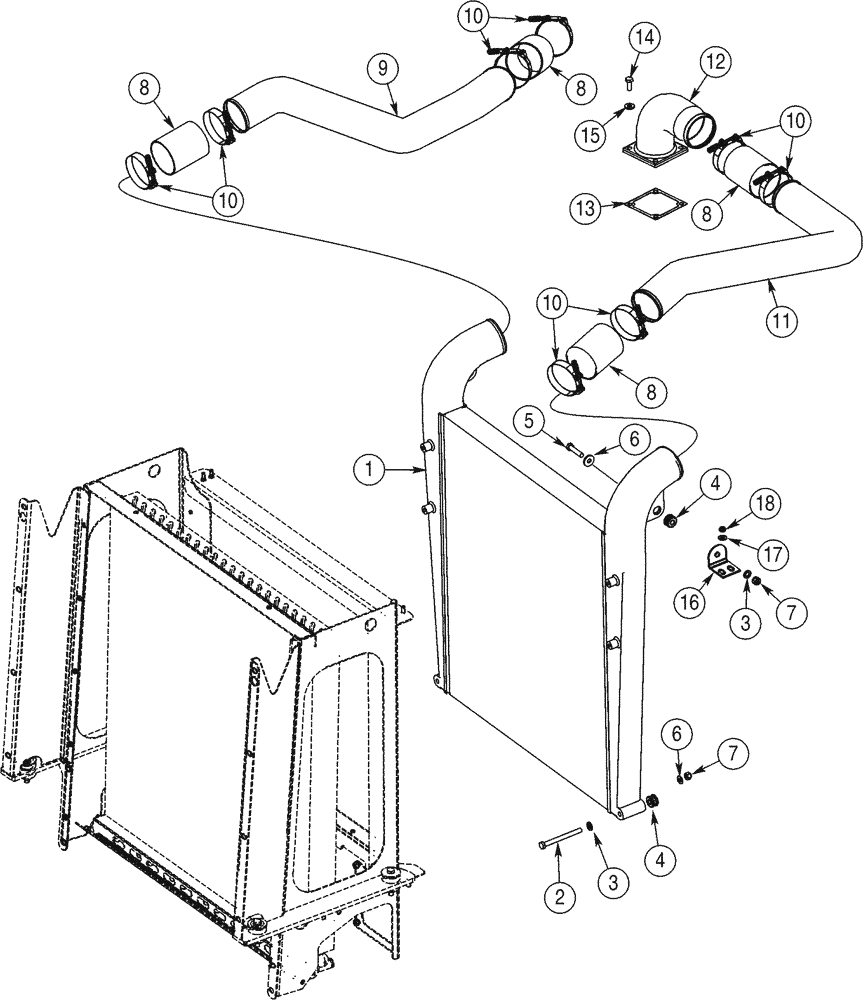

Запчасти Case 921C (02-05) - COOLER, CHARGE AIR - HOSES, CONNECTING (02) - ENGINE

European Models JEE0126216-

1шт.

1

259332A4

AFTERCOOLER

Charge Air

1шт.

2

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

2шт.

4

434177A1

ISOLATOR

4шт.

5

828-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

4шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

8

329737A1

HOSE

110 mm (4 in)

4шт.

9

417632A1

AIR INTAKE TUBE

Charge Air, Cooler To Turbocharger

1шт.

10

8500100

CLAMP

8шт.

11

417633A1

AIR INTAKE TUBE

Charge Air, Intake

1шт.

12

441616A1

AIR INTAKE TUBE

Intake

1шт.

13

J070100

GASKET

1шт.

14

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

15

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

4шт.

16

361250A1

BRACKET

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
