Запчасти Case 921C (06-23) - AXLE, REAR - MOUNTING -JEE0123251 (06) - POWER TRAIN

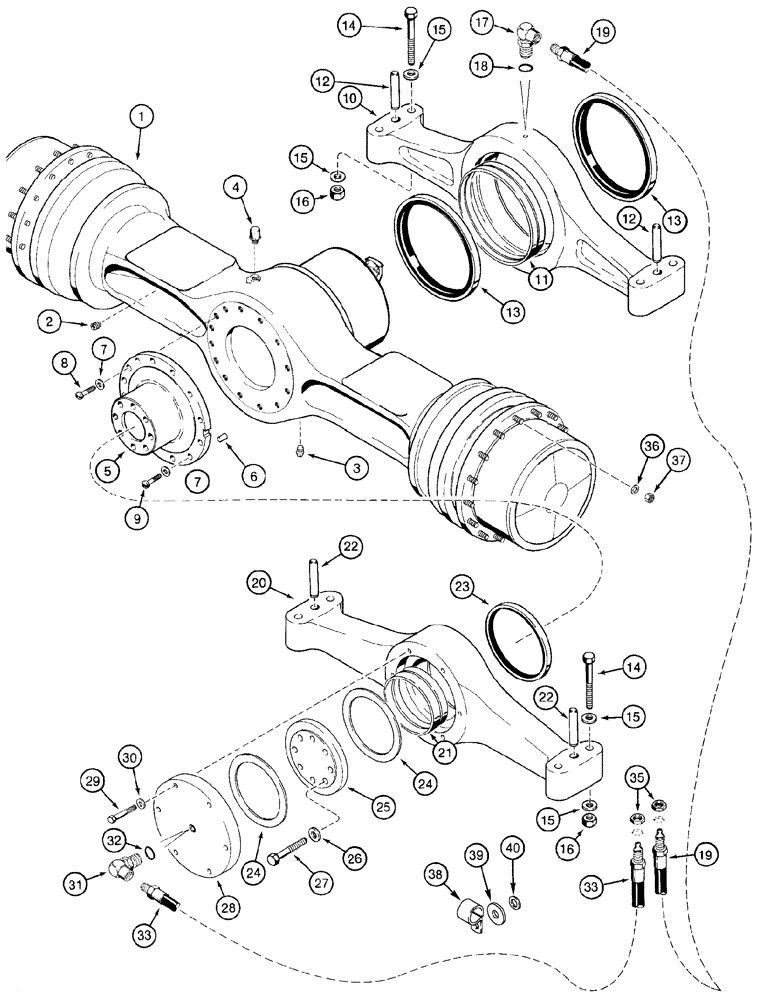

Схема запчастей Case 921C - (06-23) - AXLE, REAR - MOUNTING -JEE0123251 (06) - POWER TRAIN
13
40
38
14
17
13
30
2
29
24
7
15
25
32
37
9
21
31
11
22
5
10
12
23
16
1
39
6
26
15
27
8
16
35
19
28
18
3
15
24
7
19
4
12
33
14
15
33
36
20
22

Артикул

Название

Примечание

Количество

Includes Trunnions and Lubrication Lines

1шт.

L129887

AXLE HOUSING

Incl. 1 - 9, Also Incl. Parts On Figures 06-24, 06-25, 07-02, If Used

1шт.

L129888

AXLE HOUSING

With No-Spin Differential, If Used, Incl. 1 - 9, Also Incl. Parts On Figure 06-24, 06-25, 07-02

1шт.

1

S301773

HOUSING

Rear Axle

1шт.

2

K12362

PLUG

1шт.

3

S300819

PLUG

1шт.

4

S301626

PLUG

1шт.

5

311610A1

HOUSING

Trunnion

1шт.

6

S301777

DOWEL

2шт.

7

D74504

WASHER

14шт.

8

S301775

LOCK BOLT

Set

2шт.

9

S301776

SCREW

Set

12шт.

10

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

48шт.

11

429-1714

NUT,7/8"-14, G8, Hvy

48шт.

10

188309A1

TRUNNION

Axle Mounting, Front, Incl. 11, 12

1шт.

11

105888A1

BUSHING,275.31mm ID x 287.97mm OD x 55mm L

2шт.

12

37-11236

DOWEL,3/4" x 2 1/4"

3/4 x 2-1/4

2шт.

13

L128290

OIL SEAL,274.83mm ID x 305.18mm OD x 14.99mm Thk

2шт.

14

326-14112

BOLT,Hex, 7/8" - 9 x 7", Gr 8

8шт.

15

S92341

WASHER

16шт.

16

329-1014

NUT,7/8"-9, G8

8шт.

17

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

Incl. 18

1шт.

18

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

19

310609A1

HOSE ASSY.

1642 mm (64-5/8 in), Lubrication, Front Trunnion

1шт.

20

113951A1

TRUNNION

Axle Mounting, Rear, Incl. 21, 22

1шт.

21

105887A1

BUSHING,170.23mm ID x 182.78mm OD x 64mm L

1шт.

22

37-11236

DOWEL,3/4" x 2 1/4"

3/4 x 2-1/4

2шт.

23

L128291

SEAL

1шт.

24

L128209

WASHER,172.2mm ID x 216mm OD x 5mm Thk

2шт.

25

L128277

SPACER

1шт.

26

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

27

827-16075

BOLT,Hex, M16 x 2 x 75mm, Cl 10.9

8шт.

28

L128278

COVER

1шт.

29

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

6шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

31

218-5450

ELBOW,90 Degree, 7/16"-20 ORB x 1/8" NPT Fem

Incl. 32

1шт.

32

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

33

310610A1

HOSE ASSY.

2413 mm (95 in), Lubrication, Rear Trunnion

1шт.

35

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

36

496-31094

WASHER,15/16" x 1 3/4" x .219", HDN

48шт.

37

429-1714

NUT,7/8"-14, G8, Hvy

48шт.

38

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

6шт.

39

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

1шт.

40

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

Выбрано товаров: 44
