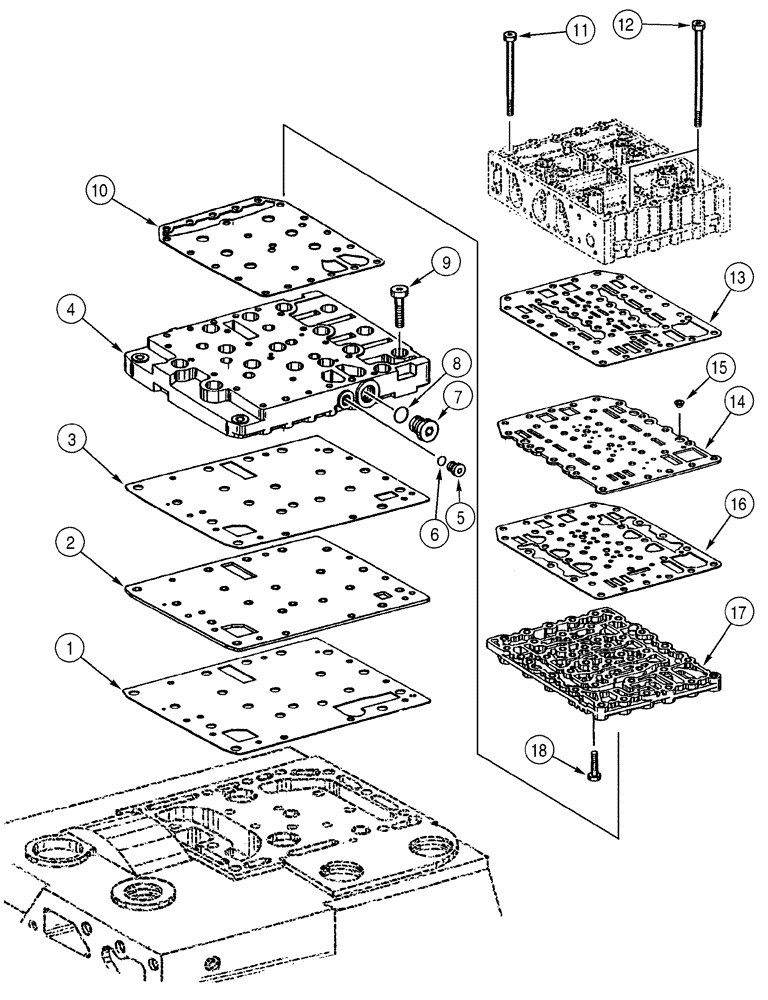

Запчасти Case 921C (06-20P) - TRANSMISSION - VALVE PLATES (06) - POWER TRAIN

380529A1

TRANSMISSION

Incl. Figures 06-20A - 06-20Q, 07-01A, Replaces 196175A1

1шт.

380529A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, Prior to PIN JEE0155000, Model Number 4WG260, Stock Number 4646 054 010

1шт.

380529A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

335468A1

GASKET

1шт.

2

335467A1

LARGE PLATE

PLATE, LARGE

1шт.

3

335466A1

GASKET

1шт.

4

335469A1

LARGE PLATE

PLATE, LARGE

1шт.

5

330971A1

PLUG

Incl. 6

1шт.

6

S300491

O-RING,8mm ID x 1.5mm Width

1шт.

7

330928A1

PLUG

Incl. 8

1шт.

8

330929A1

O-RING,2mm Thk x 13mm ID

1шт.

9

335470A1

CAPSCREW,Flg, 3/8" - 16 x 7/8", Gr 8

18шт.

10

331988A1

GASKET

1шт.

11

330927A1

SCREW

21шт.

12

335471A1

CAPSCREW,Flg, 3/8" - 16 x 1", Gr 8

2шт.

331759A1

SHIFTING UNIT

Incl. 13 - 18, Also Includes Parts On Figure 6-20Q

1шт.

13

331013A1

GASKET

1шт.

14

330965A1

LARGE PLATE

PLATE, LARGE

1шт.

15

330966A1

SCREEN

6шт.

16

330967A1

GASKET

1шт.

17

330968A1

LARGE PLATE

PLATE, LARGE

1шт.

18

330969A1

SCREW

18шт.
