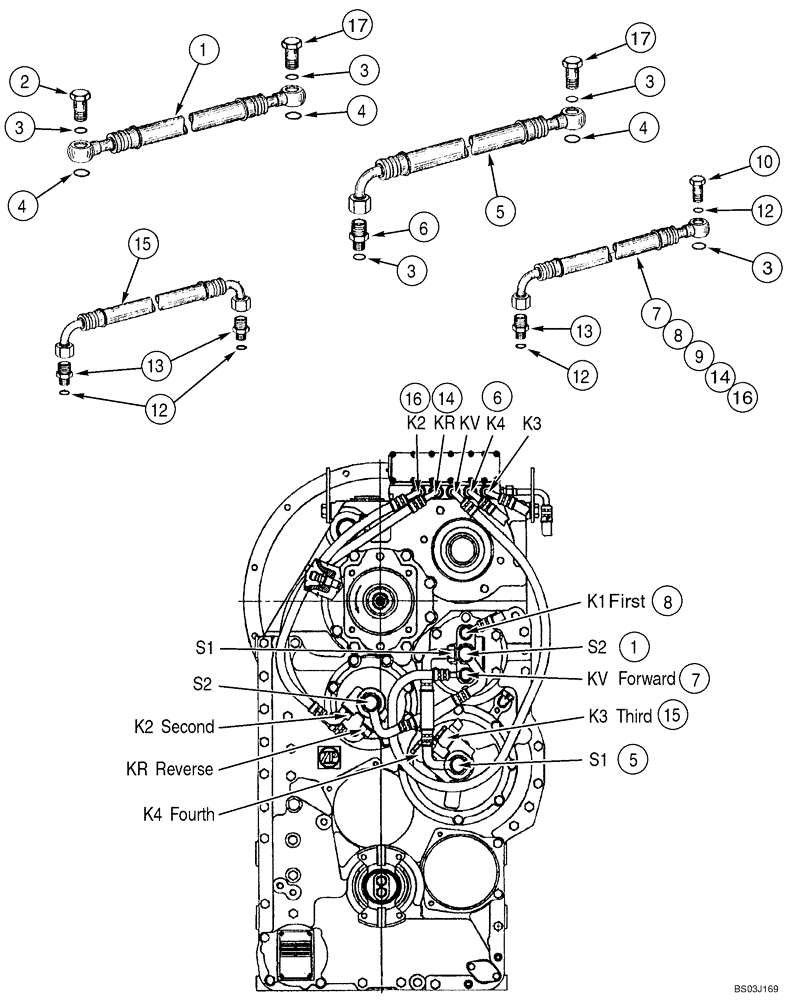

Запчасти Case 921C (06-20N) - TRANSMISSION - LUBRICATION (06) - POWER TRAIN

380529A1

TRANSMISSION

Incl. Figures 06-20A - 06-20Q, 07-01A, Replaces 196175A1

1шт.

380529A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, Prior to PIN JEE0155000, Model Number 4WG260, Stock Number 4646 054 010

1шт.

380529A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

335626A1

PIPE

605 mm (23-7/8 in)

1шт.

2

335623A1

FITTING

1шт.

3

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

5шт.

4

335625A1

O-RING,25mm ID x 3mm Width

3шт.

5

335628A1

PIPE

1шт.

6

S301942

FITTING

1шт.

7

87437109

HOSE,2450.00 mm

Replaces 335629a1

1шт.

8

335631A1

PIPE

No Longer Used; Order 87437112

1шт.

8

87437112

HOSE,60.00 mm

Replaces 335631A1

1шт.

9

335632A1

PIPE

If Used

1шт.

10

335622A1

BANJO BOLT

5шт.

11

S301616

GASKET,2.5mm Thk x 18mm ID

No Longer Used

3шт.

12

S301617

O-RING,2mm Thk x 13mm ID

12шт.

13

E135091

FITTING

Incl. 12

7шт.

14

335630A1

PIPE

No Longer Used; Order 335632A1, Ref 9

1шт.

15

335633A1

PIPE

No Longer Used; Order S301938

1шт.

15

S301938

HOSE

1шт.

16

335634A1

PIPE

No Longer Used; Order 335632A1, Ref 9

1шт.

17

87437588

BANJO BOLT

2шт.
