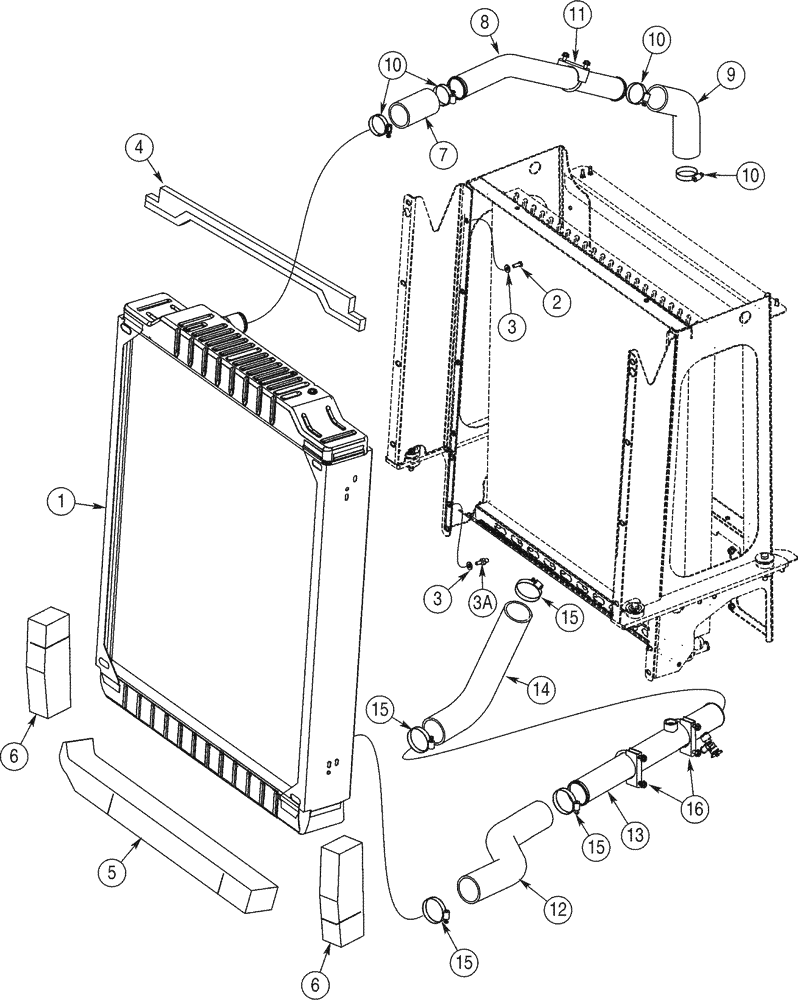

Запчасти Case 921C (02-04) - RADIATOR - MOUNTING (02) - ENGINE

European Models JEE0126216-

1шт.

1

395586A1

RADIATOR

1шт.

2

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

9шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

3a

292523A1

SPECIAL BOLT

Ground

1шт.

4

444519A1

INSULATOR

Radiator, Top

1шт.

5

444520A1

INSULATOR

Radiator, Bottom

1шт.

6

444521A1

INSULATOR

Radiator, Sides

2шт.

7

417638A1

HOSE, BULK,57.20 mm ID x 120.00 mm, SAE 20R4 CLASS D1, SAE J20R4

HOSE, METERS Upper

1шт.

8

417634A1

TUBE

1шт.

9

413060A1

HOSE

To Engine, Upper

1шт.

10

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

4шт.

11

393632A1

CLAMP

Includes Hardware

1шт.

12

417639A1

HOSE, BULK,63.50 mm ID x 475.00 mm, SAE 20R4 CLASS D1, SAE J20R4

HOSE, METERS Lower

1шт.

13

419356A2

TUBE

To Surge Tank, Coolant Overflow

1шт.

14

417637A1

HOSE

To Engine, Lower

1шт.

15

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

4шт.

16

419850A1

CLAMP

Includes Hardware

2шт.
