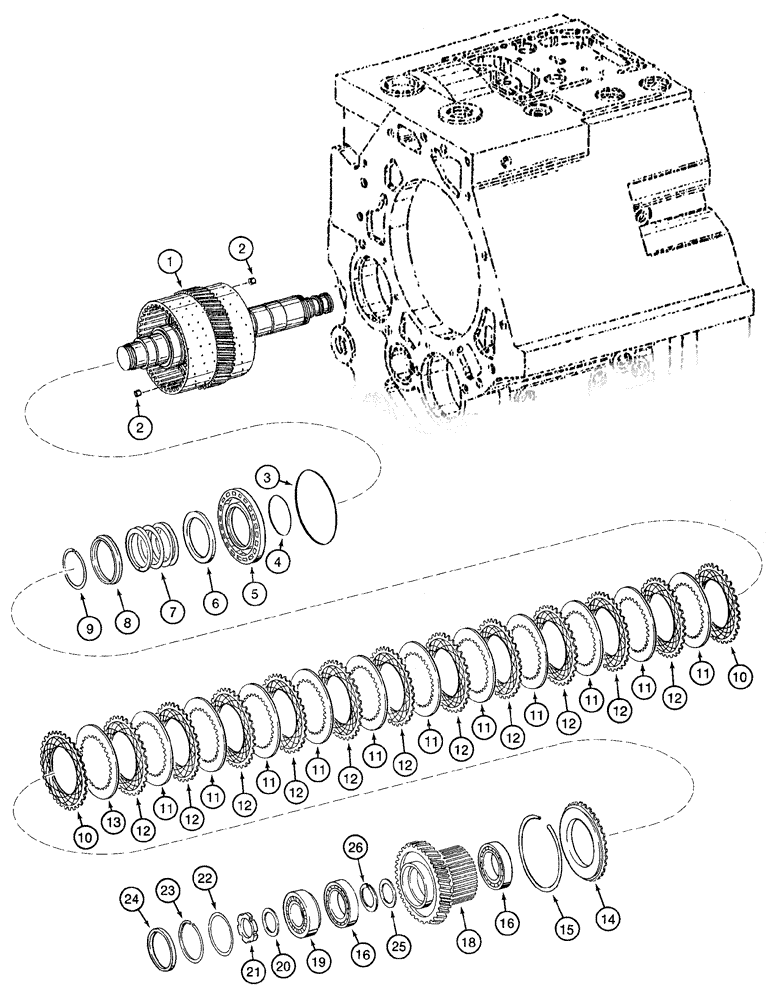

Запчасти Case 921C (06-20H) - TRANSMISSION - CLUTCH ASSY, REVERSE (06) - POWER TRAIN

380529A1

TRANSMISSION

Incl. Figures 06-20A - 06-20Q, 07-01A, Replaces 196175A1

1шт.

380529A1R

REMAN-TRANSMISSION

Remanufactured Transmission; For N.A. only; 921C, Prior to PIN JEE0155000, Model Number 4WG260, Stock Number 4646 054 010

1шт.

380529A1C

CORE-TRANSMISSION

Return number - For N.A. only

1шт.

1

335379A1

HUB

1шт.

2

335157A1

VALVE

1шт.

3

252176A1

O-RING

1шт.

4

252177A1

O-RING

1шт.

5

252175A1

PISTON

1шт.

6

100145A1

WASHER

1шт.

7

100146A1

SPRING

1шт.

8

100176A1

RING, SNAP

RING SNAP

1шт.

9

100147A1

RING, SNAP

RING SNAP

1шт.

10

335167A1

CLUTCH DISC

CLUTCH DISK Outer

2шт.

11

335158A1

CLUTCH DISC

CLUTCH DISK 2,5 mm, Inner

11шт.

12

335165A1

CLUTCH DISC

CLUTCH DISK Outer

11шт.

13

335158A1

CLUTCH DISC

CLUTCH DISK 2,5 mm, End, Shim Side

1шт.

13

335159A1

JACK PISTON

3,0 mm, Piston Side

1шт.

13

335160A1

CLUTCH DISC

CLUTCH DISK 3.5 mm, Piston Side

1шт.

13

335162A1

CLUTCH DISC

CLUTCH DISK 4,0 mm, Piston Side

1шт.

13

335164A1

DISC

2,0 mm, End, Shim Side

1шт.

14

129657A1

NOTCHED DISK

End

1шт.

15

252182A1

RING, SNAP

RING SNAP 2,95 mm thk, Optional

1шт.

15

252183A1

RING, SNAP

RING SNAP 2,90 mm thk, Optional

1шт.

15

252184A1

RING, SNAP

RING SNAP 2,85 mm thk, Optional

1шт.

15

252185A1

RING, SNAP

RING SNAP 2,80 mm thk, Optional

1шт.

15

252186A1

RING, SNAP

RING SNAP 2,75 mm thk, Optional

1шт.

15

252187A1

RING, SNAP

RING SNAP 2,70 mm thk, Optional

1шт.

15

252188A1

RING, SNAP

RING SNAP 2,65 mm thk, Optional

1шт.

15

252189A1

RING, SNAP

RING SNAP 2,60 mm thk, Optional

1шт.

15

252190A1

RING, SNAP

RING SNAP 2,55 mm thk, Optional

1шт.

15

252191A1

RING, SNAP

RING SNAP 2,45 mm thk, Optional

1шт.

16

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

2шт.

17

100177A1

GEAR

1шт.

18

129670A1

BLOCK

3,6 mm

1шт.

18

129669A1

BLOCK

3,8 mm

1шт.

18

129668A1

BLOCK

3,9 mm

1шт.

18

129667A1

BLOCK

4,0 mm

1шт.

18

129665A1

BLOCK

4,1 mm

1шт.

18

129663A1

BLOCK

4,2 mm

1шт.

18

129662A1

BLOCK

4,3 mm

1шт.

18

129661A1

BLOCK

4,4 mm

1шт.

18

129660A1

CLUTCH DISC

CLUTCH DISK 4,5 mm

1шт.

19

933078R1

SNAP RING,M110, Int

1шт.

20

100189A1

ROLLER BEARING,50.8mm ID x 112.712mm OD x 30.162mm

1шт.

21

100190A1

SLOTTED NUT,M50 x 1.5

1шт.

22

129682A1

SEALING RING

SEALRING

1шт.

23

100206A1

CIRCLIP

1шт.

24

100207A1

COVER

1шт.
