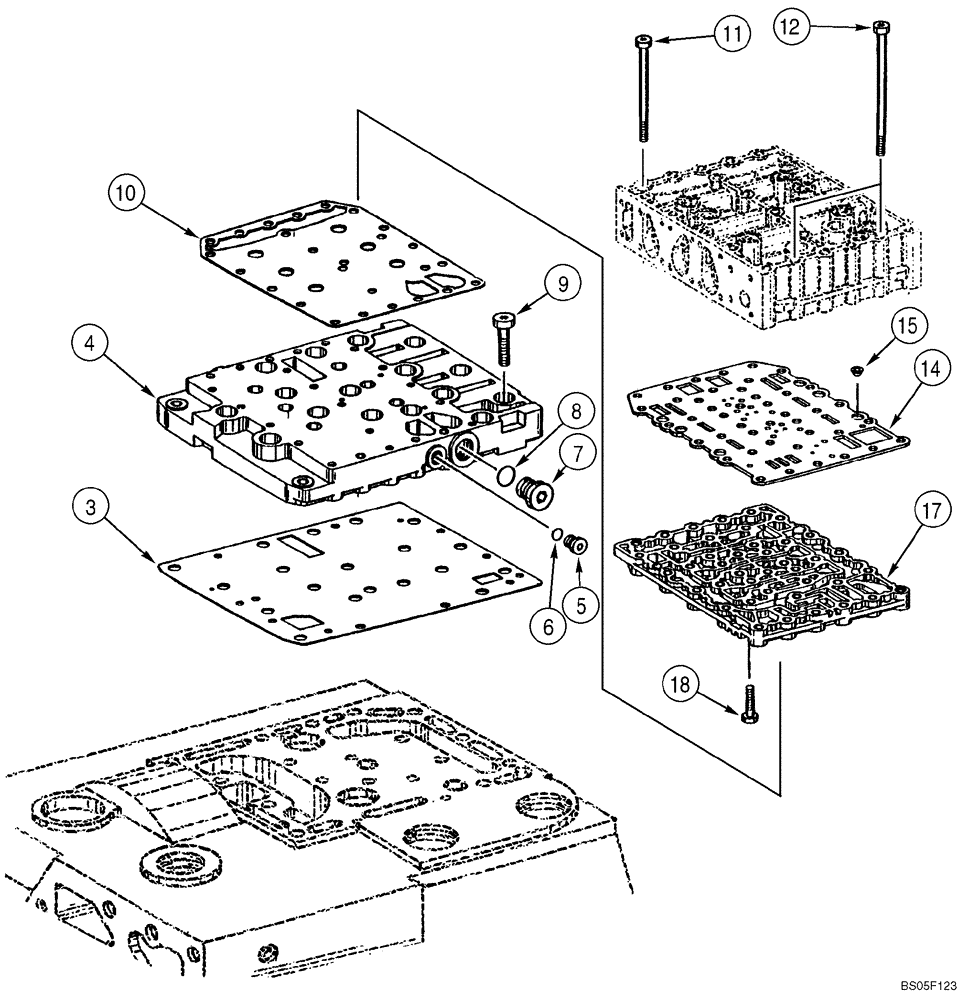

Запчасти Case 921C (06-19) - TRANSMISSION - VALVE PLATES (06) - POWER TRAIN

196175A1

TRANSMISSION

Includes Figures 06-06 - 06-20, 07-01, No Longer Available, Order 380529A1, See Figure 06-20A - 06-20Q

1шт.

3

8605456

GASKET

1шт.

4

8605457

PLATE

1шт.

5

330971A1

PLUG

Incl. 6

1шт.

6

S300491

O-RING,8mm ID x 1.5mm Width

1шт.

7

330928A1

PLUG

Incl. 8

1шт.

8

330929A1

O-RING,2mm Thk x 13mm ID

1шт.

9

335470A1

CAPSCREW,Flg, 3/8" - 16 x 7/8", Gr 8

20шт.

10

387554A1

GASKET

1шт.

11

8603182

SCREW,M6 x 76mm

17шт.

12

8605458

SCREW,M6 x 100mm, Cl 10.9

6шт.

14

8603181

PLATE

1шт.

15

8603363

SCREEN

6шт.

17

8603628

PLATE

1шт.

18

8603183

SCREW,M6 x 23mm, Cl 10.9

18шт.
