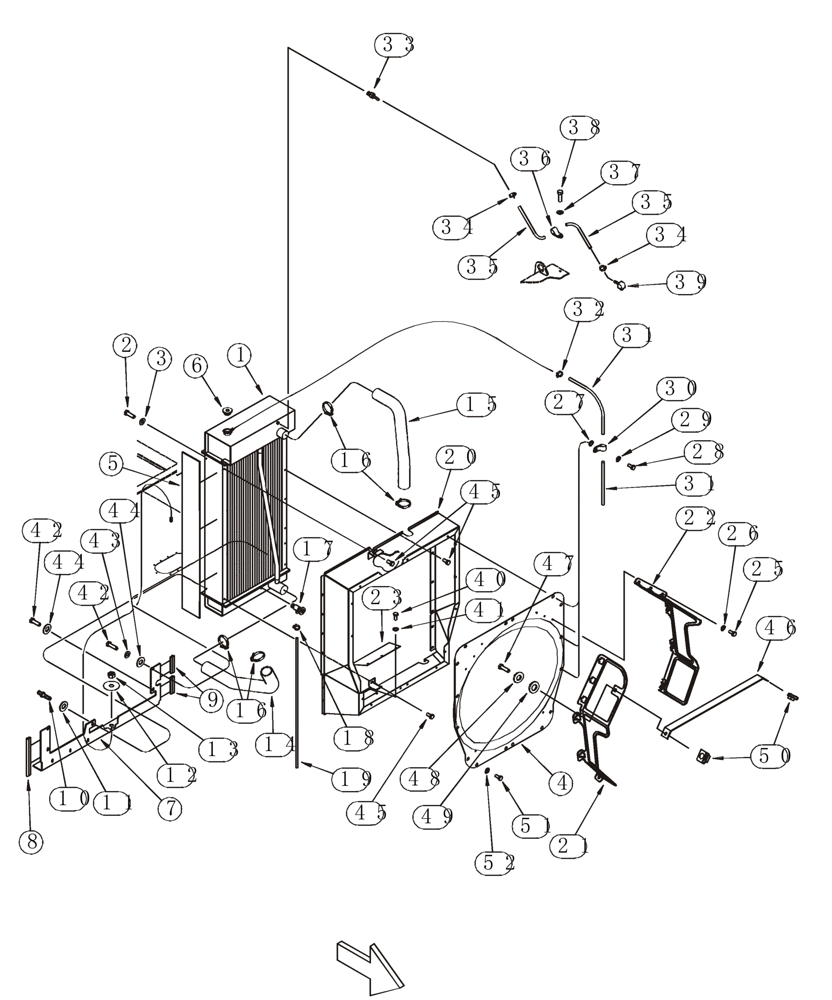

Запчасти Case 921C (02-03) - RADIATOR MOUNTING - FAN SHROUD (02) - ENGINE

European Models -JEE0126215

1шт.

1

232030A1

RADIATOR

1шт.

2

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

3

496-41041

WASHER,13/32" x 1 1/8" x .134"

5шт.

4

256121A1

SHEET

1шт.

5

L128996

SEAL

1шт.

6

A170241

RADIATOR CAP

15 psi

1шт.

7

223272A1

SUPPORT

1шт.

8

L128940

SEAL

Right Hand Side

1шт.

9

L129203

SEAL

Left Hand Side

2шт.

10

253188A1

BOLT

Ground

1шт.

11

496-41041

WASHER,13/32" x 1 1/8" x .134"

1шт.

12

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

33/64 x 2 x 1/8

4шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

14

L129723

RADIATOR HOSE,62.90 mm ID x 588.00 mm, SAE 20R4 Class C or D1

Lower

1шт.

15

L129722

RADIATOR HOSE,56.60 mm ID x 397.00 mm, SAE 20R4

Upper

1шт.

16

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

4шт.

17

A27862

COCK, DRAIN

1шт.

18

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

19

D71599

HOSE,6.40 mm ID x 1016.00 mm, SAE 30R6 or SAE 30R7

Cut From P/N A21561X

1шт.

20

254856A1

DEFLECTOR

1шт.

21

239967A1

PROTECTOR

Right Hand

1шт.

22

239968A1

PROTECTOR

Left Hand

1шт.

23

L129748

LARGE PLATE

PLATE, LARGE Access

1шт.

26

496-41034

WASHER,.344" x 1" x .098", HDN

8шт.

27

496-41034

WASHER,.344" x 1" x .098", HDN

3шт.

29

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

3шт.

30

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

3шт.

31

L128997

HOSE,7.9 mm ID x 2400.00 mm, SAE 30R6

Coolant Overflow

1шт.

32

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

33

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

1/4 barb x 1/4 PT

1шт.

34

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

35

D140023

HOSE

915 mm (36 in), Cut From A21561X, Serial Range: Radiator-Aftercooler

1шт.

36

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

37

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

1шт.

38

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

1шт.

39

217-292

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

1шт.

40

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

3шт.

41

496-41034

WASHER,.344" x 1" x .098", HDN

3шт.

43

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

44

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

45

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

14шт.

46

239969A1

BAR

1шт.

48

892-11008

LOCK WASHER,8mm ID

2шт.

49

496-41034

WASHER,.344" x 1" x .098", HDN

2шт.

50

833-40008

SPRING NUT,M8, U

M8

2шт.

52

496-41034

WASHER,.344" x 1" x .098", HDN

13шт.

25

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

8шт.

28

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.

51

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

13шт.

47

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

42

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
