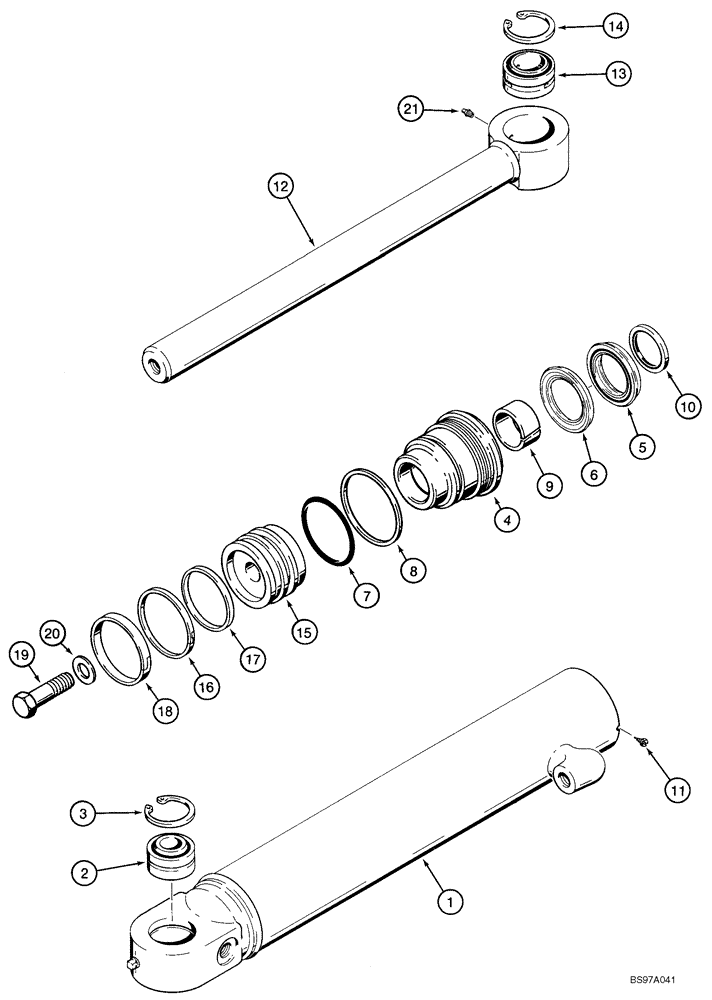

Запчасти Case 821C (05-07) - CYLINDER ASSY - STEERING (Mar 31 2008 3:11PM) (05) - STEERING

229402A1

CYLINDER ASSY.

89 ID x 433 mm str

2шт.

Steering

1шт.

Incl. 1-20

1шт.

1

229871A1

HYD TUBE

1шт.

Incl. 2, 3

1шт.

2

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

1шт.

3

100-21315

SNAP RING,3.156", Int, #315

2шт.

NSS

NOT SOLD SEPARAT

1шт.

Gland

1шт.

Cylinder

1шт.

Incl. 4-10

1шт.

4

1971707C2

CYLINDER END CAP

1шт.

1542875C1

SEAL KIT,44.4mm Rod

1шт.

Incl. 5, 6

1шт.

Not Serviced Separately

1шт.

Order 1543266C1

1шт.

5

1542999C1

SEAL

1шт.

Rod

1шт.

Not Serviced Separately

1шт.

Order 1543266C1

1шт.

1543266C1

SEAL KIT

1шт.

Incl. 1542875C1, 7-10, 14-16

1шт.

6

1542998C1

SEALING RING

1шт.

Buffer Seal

1шт.

Not Serviced Separately

1шт.

Order 1543266C1

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

Piston Rod

1шт.

Outer

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

12

229869A1

PISTON ROD

1шт.

13

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

1шт.

14

100-21315

SNAP RING,3.156", Int, #315

2шт.

15

135259A1

PISTON

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

Not Included With Cylinder

1шт.
