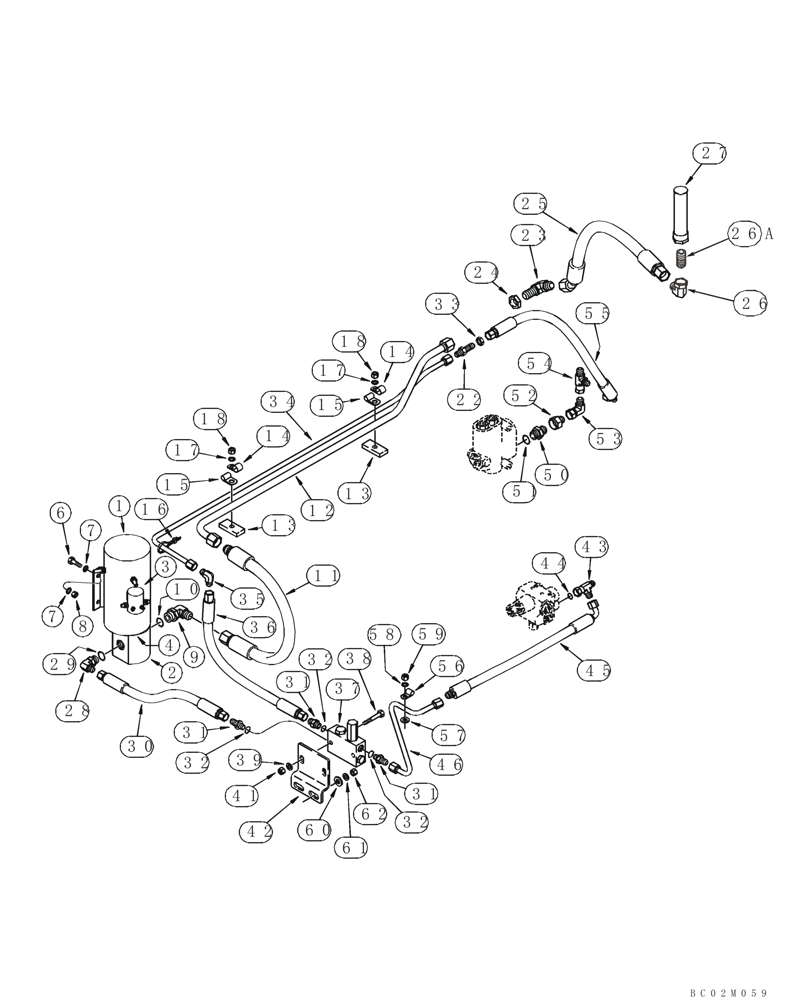

Запчасти Case 821C (05-06) - HYDRAULICS - STEERING, AUXILIARY (Dec 21 2009 4:57PM) (05) - STEERING

197540A1

PUMP, HYDRAULIC

1шт.

Motor

1шт.

Auxiliary Steering

1шт.

Incl. 1-5

1шт.

1

258042A1

MOTOR, ELECTRIC

1шт.

Drive

1шт.

2

258041A1

PUMP, HYDRAULIC

1шт.

3

258043A1

SOLENOID SWITCH

24V

1шт.

4

258044A1

GASKET

1шт.

5

258045A1

SEAL KIT

Seal

1шт.

Component Parts Not Serviced Separately

1шт.

Incl. (1) Retaining Ring, (1) Shaft Seal, (2) O-Rings, (2) E-Seals and (2) Backup Rings

1шт.

Not Illustrated

1шт.

6

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

8шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

Incl. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

11

L129992

HOSE ASSY.

710 mm (28 in)

1шт.

Suction

1шт.

12

304966A1

TUBE

1шт.

13

L119350

SPACER

2шт.

14

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

15

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

17

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

22

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

23

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

24

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

25

305392A2

HOSE ASSY.

857 mm (33-3/4 in)

1шт.

Tank to Auxiliary Steering Pump

1шт.

26

218-516

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, Fem NPTF

1шт.

26a

221-221

PIPE,Nipple, 3/4" NPT x 5"

1шт.

27

L129303

FILTER SCREEN

1шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

Incl. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

322235A1

HOSE ASSY.

522 mm (20-9/16 in)

1шт.

Pressure

1шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3шт.

Incl. 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

34

304964A1

TUBE

1шт.

Pressure

1шт.

35

218-474

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male JIC

1шт.

36

322255A1

HOSE ASSY.

575 mm (22-5/8 in)

1шт.

Pressure

1шт.

37

311652A2

VALVE

1шт.

Component Parts Not Serviced Separately

1шт.

39

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

41

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

42

321846A1

SUPPORT

1шт.

43

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

Attaches to Accumulator Charge Valve

1шт.

Incl. 44

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

45

322324A1

HOSE ASSY.

567 mm (22-5/16 in)

1шт.

46

322313A1

TUBE

1шт.

50

321727A1

CHECK VALVE

1шт.

Incl. 51

1шт.

51

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

52

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

3/4 x 5/8

1шт.

53

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

54

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

1шт.

To 304154A2 Steering Hose

1шт.

55

322396A1

HOSE ASSY.

737 mm (29 in)

1шт.

56

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

57

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

1шт.

58

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

59

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

60

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

61

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

62

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

38

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

2шт.
