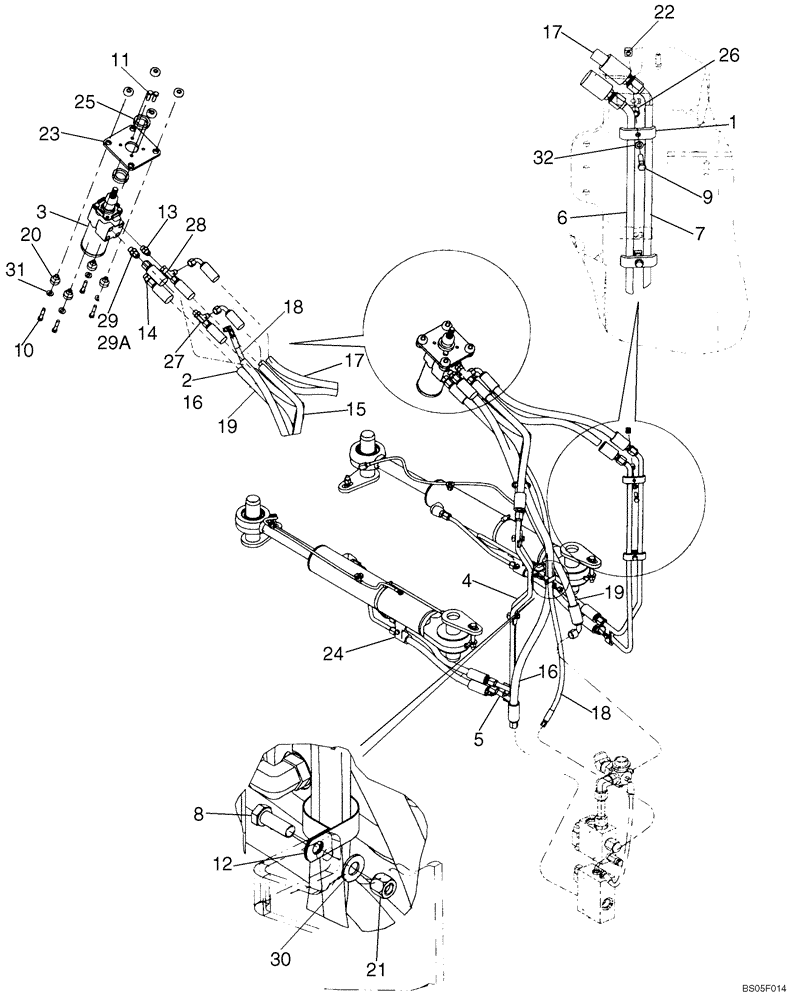

Запчасти Case 821C (05-05B) - HYDRAULICS - STEERING (05) - STEERING

1

D40236

CLAMP

4шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

3

87307061

STEERING VALVE

Steering

1шт.

4

232311A1

TUBE

Lower Left Hand

1шт.

5

232309A1

TUBE

Upper Left Hand

1шт.

6

232313A1

TUBE

Lower Right Hand

1шт.

7

232315A1

TUBE

Upper Right Hand

1шт.

8

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

9

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

4шт.

10

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

4шт.

11

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

12

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

1шт.

13

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

14

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

1шт.

15

304150A1

HOSE ASSY.

672 mm (26-1/2 in)

2шт.

16

304154A2

HOSE ASSY.

1548 mm (61 in)

1шт.

17

304149A1

HOSE ASSY.

649 mm (25-9/16 in)

2шт.

18

111227A1

HOSE ASSY.

1520 mm (59-7/8 in)

1шт.

19

304153A1

HOSE ASSY.

1072 mm (42-1/4 in)

1шт.

20

A141515

ISOLATOR

Steering Isolator

4шт.

21

231-1446

NUT,3/8" - 16, Gr 5

1шт.

22

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

23

237344A2

PLATE

1шт.

24

D38648

BLOCK

2шт.

25

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

Steering Hand Pump Mtg

2шт.

26

D76209

SPACER

6шт.

27

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

28

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

29

451220A1

CHECK VALVE

Incl. 29A

1шт.

29a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

31

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

32

492-11038

LOCK WASHER,3/8"

6шт.
