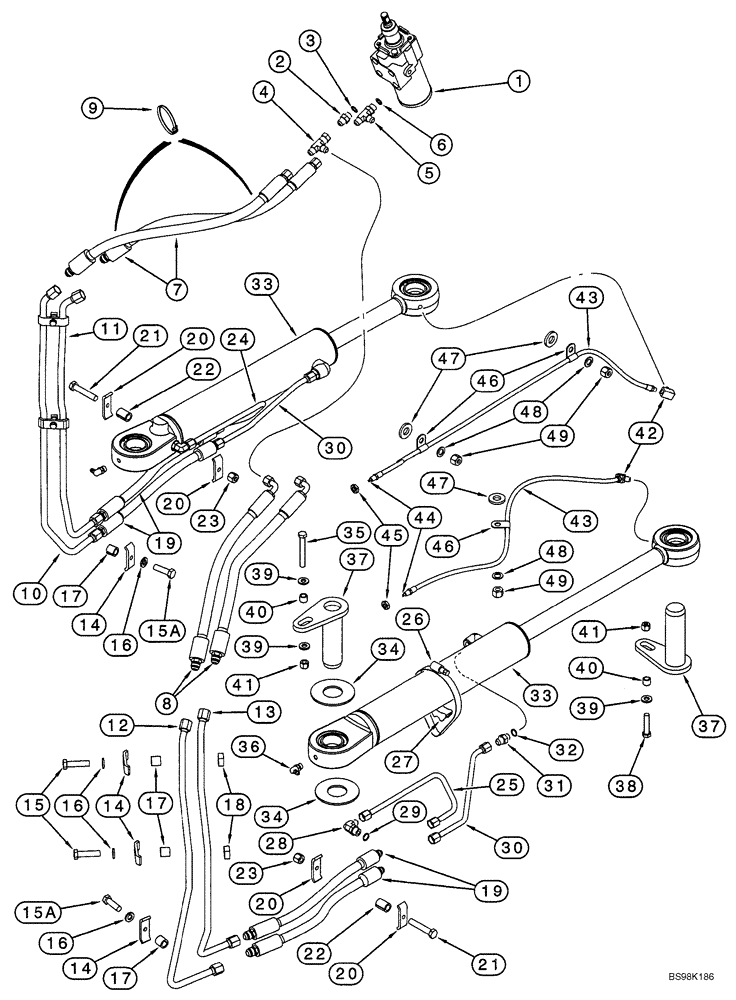

Запчасти Case 821C (05-04) - HYDRAULICS - STEERING (Jan 11 2008 8:47AM) (05) - STEERING

*

STEERING CONTROL VALVE TO CYLINDERS

1шт.

1

284103A2

VALVE, CONTROL

Steering, See Figure 05-02

1шт.

*

87307061

STEERING VALVE

Steering; Incl. Steering Shaft; Incl. 320228A2, REF 1 - 27; Replaces 284103A2; See Figures 05-05A And 05-05B

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

304150A1

HOSE ASSY.

672 mm (26-1/2 in)

2шт.

8

304149A1

HOSE ASSY.

649 mm (25-9/16 in)

2шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

10

232309A1

TUBE

Upper Left Hand

1шт.

11

232311A1

TUBE

Lower Left Hand

1шт.

12

232315A1

TUBE

Upper Right Hand

1шт.

13

232313A1

TUBE

Lower Right Hand

1шт.

14

D40236

CLAMP

6шт.

15

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

4шт.

15a

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

16

492-11038

LOCK WASHER,3/8"

6шт.

17

D76209

SPACER

6шт.

18

84899

SQUARE NUT,Sq, 3/8"-16, G2

4шт.

19

L125323

HOSE,12.7mm ID x 475mm L, SAE 100R2

475 mm (18-3/4 in)

4шт.

20

D40236

CLAMP

4шт.

21

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

22

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

2шт.

23

231-1446

NUT,3/8" - 16, Gr 5

2шт.

24

243885A1

TUBE

Left Hand

1шт.

25

243887A1

TUBE

Right Hand

1шт.

26

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

2шт.

27

D38648

BLOCK

2шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 29

2шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

243890A1

TUBE,12.7 mm OD, 263, 150 mm Length

Left Hand and Right Hand

2шт.

31

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. 32

2шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

229402A1

CYLINDER ASSY.

89 ID x 433 mm str; Steering; See Figure 05-07

2шт.

34

L60778

WASHER,51.3mm ID x 114.3mm OD x 4.8mm Thk

4шт.

35

426-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 8

2шт.

36

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

37

L129129

PIN,50.76mm OD x 172mm L

Mounting, Tear Drop Head

4шт.

38

426-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 8

2шт.

39

496-21053

WASHER,17/32" x 1 1/16" x .134"

6шт.

40

L128157

SPACER,12.95mm ID x 19.05mm OD x 16mm L

4шт.

41

231-1448

NUT,1/2"-13, GB

4шт.

42

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

2шт.

43

313683A1

FLEXIBLE HOSE

855 mm (33-11/16 in); Lubrication Line; Incl. 44

2шт.

44

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

45

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

2шт.

46

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

3шт.

47

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

48

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

3шт.

49

832-10410

NUT,M10 x 1.5, Cl 8

3шт.
