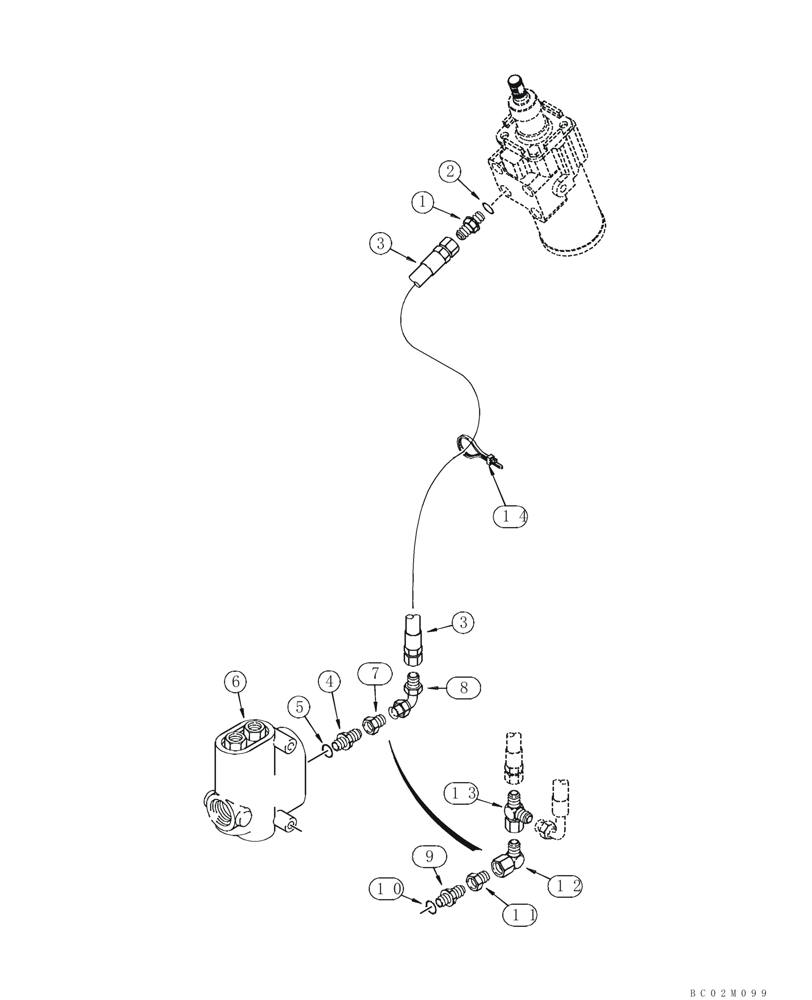

Запчасти Case 821C (05-03) - HYDRAULICS - STEERING (Dec 18 2009 9:45AM) (05) - STEERING

IF USED

1шт.

STEERING CONTROL VALVE TO FLOW CONTROL VALVE

1шт.

1

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

1шт.

Incl. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

304154A2

HOSE ASSY.

1548 mm (61 in)

1шт.

Pressure

1шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

Incl. 5

1шт.

Models with Standard Steering, use REF 4, 21, 22

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

L126106

VALVE

1шт.

Flow Control

1шт.

See Figure 08-11A

1шт.

7

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

3/4 x 5/8

1шт.

Models with Standard Steering, use REF 4, 21, 22

1шт.

8

218-999

ADAPTER,90 Degree, 37 Degree Fl, 7/8"-14 Male x 7/8"-14 Fem

7/8 fl x FST

1шт.

Models with Standard Steering, use REF 4, 21, 22

1шт.

9

321727A1

CHECK VALVE

1шт.

Incl. 24

1шт.

Models with Auxiliary Steering, use REF 23 - 27

1шт.

Models with Auxiliary Steering, use REF 23 - 27

1шт.

11

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

3/4 x 5/8

1шт.

Models with Auxiliary Steering, use REF 23 - 27

1шт.

12

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

Models with Auxiliary Steering, use REF 23 - 27

1шт.

13

218-5486

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

1шт.

Attaches to Auxiliary Steering Pressure Hose

1шт.

Models with Auxiliary Steering, use REF 23 - 27

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
