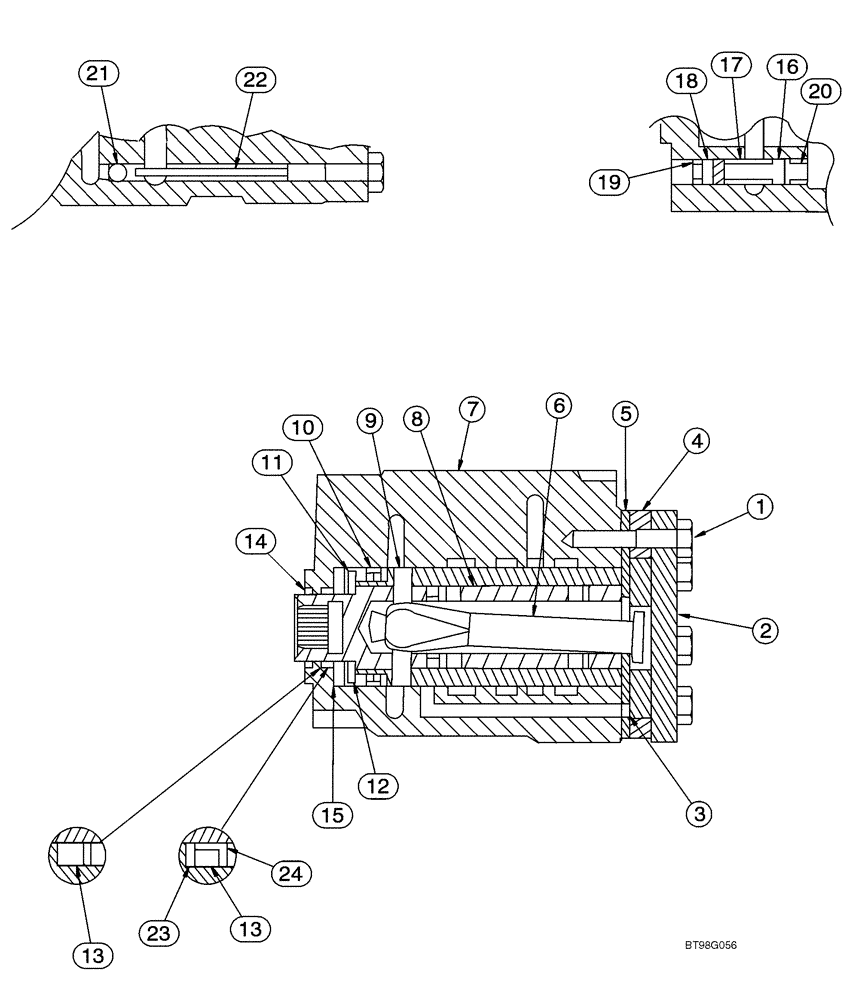

Запчасти Case 821C (05-02) - VALVE ASSY - STEERING CONTROL (Dec 2 2009 11:33AM) (05) - STEERING

REF

INSTRUCTION

IF USED

1шт.

284103A2

VALVE, CONTROL

Steering; Incl. Steering Shaft; Incl. 320228A2, REF 1 - 27

1шт.

320228A2

VALVE, CONTROL

Steering; Does Not Include Steering Shaft; Incl. 1 - 24, 27

1шт.

1

298584A1

BOLT

7шт.

399334A1

SEAL KIT

Seal Kit; Component Parts Not Serviced Separately; Incl. (3) 298587A1, (1) 400210A1, (1) 18-137, (2) 238-6011

1шт.

2

298585A1

CAP

1шт.

3

298587A1

SEAL

3шт.

4

298588A1

ROTOR

1шт.

5

298589A1

SPACER

1шт.

6

320667A1

DRIVE

1шт.

7

NSS

NOT SOLD SEPARAT

Housing

1шт.

8

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

9

298591A1

PIN

1шт.

10

399331A1

SPRING

1шт.

11

298593A1

NEEDLE BEARING

1шт.

12

298594A1

BEARING CUP

2шт.

13

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

14

400210A1

SEAL

1шт.

15

298595A1

RING

1шт.

16

320678A1

VALVE POPPET

2шт.

17

320677A1

SPRING

2шт.

18

320693A1

PLUG

2шт.

19

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

20

320679A1

SEAT, VALVE

2шт.

21

298596A1

BALL

2шт.

22

298597A1

ROLL PIN

2шт.

23

50-2703T1

BACK-UP RING

1шт.

24

N13313

SEAL,25.1mm ID x 26.7mm OD x 2.6mm Thk

1шт.

25

L100706

CAP

Incl. 26; Component Parts Not Serviced Separately; Not Illustrated

1шт.

26

380-2612

12 PT SCREW,Flg, 3/8" - 16 x 3/4", Full Thd

Not Illustrated

2шт.

27

320680A1

RIVET

Not Illustrated

2шт.
