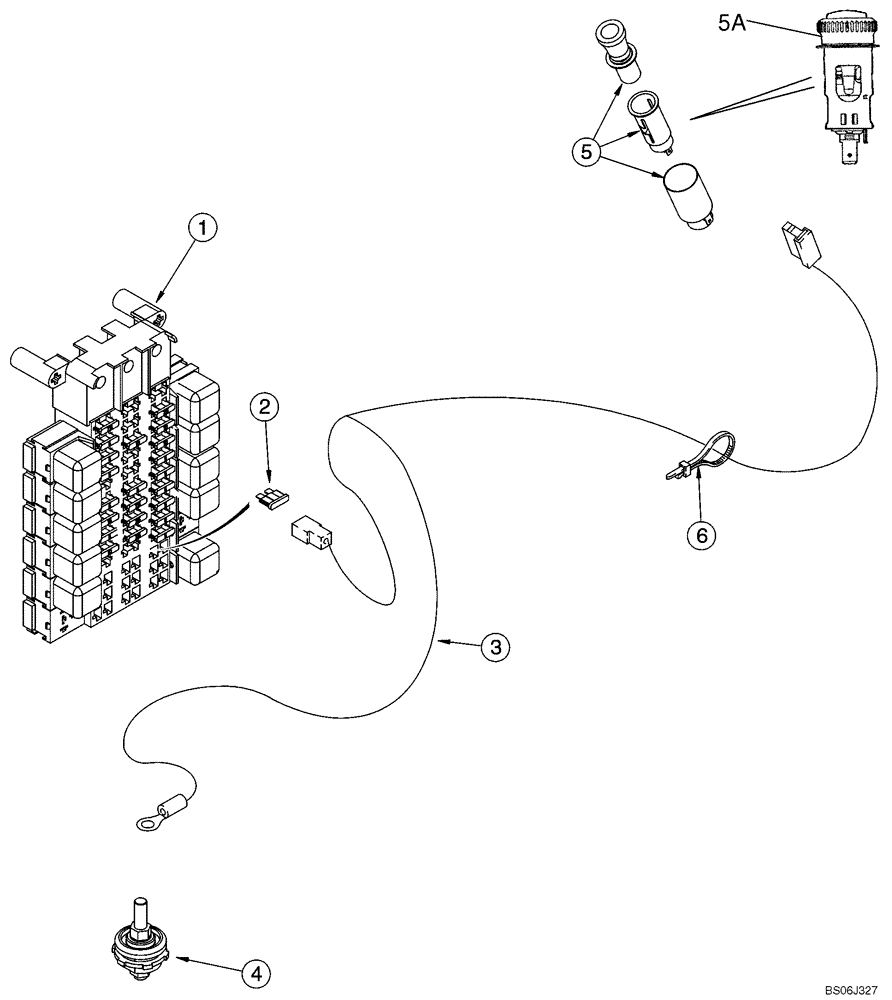

Запчасти Case 821C (04-30) - HARNESS - CIGAR LIGHTER (Sep 15 2006 10:17AM) (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS Cab Main; SEE FIG 04-09

1шт.

2

A149801

FUSE,Lt Blue, 15 Amp

15 amp

1шт.

Red

1шт.

3

313368A1

WIRE HARNESS

CIGARETTE LIGHTER

1шт.

4

319055A1

JUNCTION BLOCK

1шт.

5

E134655

LIGHTER, CIGARETTE

If Used

1шт.

5a

87563780

LIGHTER, CIGARETTE

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.
