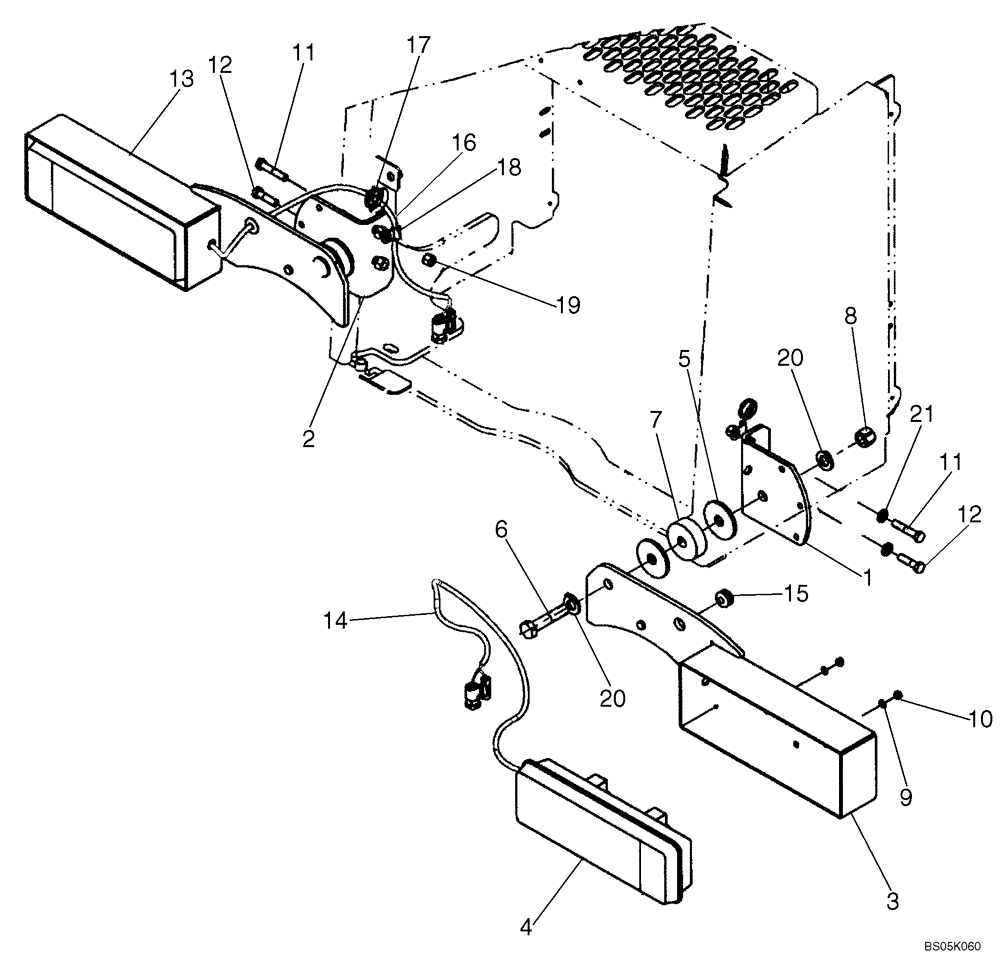

Запчасти Case 821C (04-23A) - MOUNTING - LAMPS, REAR COMBINATION (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

EUROPE ONLY

1шт.

1

E137357

SUPPORT

Combination Lamp; Left Hand

1шт.

2

E137360

SUPPORT

Combination Lamp; Right Hand

1шт.

3

436193A1

SUPPORT ASSY.

Combination Lamp; Right Hand; Not Illustrated

1шт.

4

E133218

LAMP, TAIL

LIGHT, TAIL Combination Lamp; Right Hand; Left Hand; See Figure 04-24

2шт.

5

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

6

426-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

3/4 x 3-1/2; 8

2шт.

7

120841A1

WASHER

2шт.

8

231-14412

LOCK NUT,3/4"-10, GB

2шт.

9

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

4шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

11

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

12

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

13

436194A1

SUPPORT ASSY.

Combination Lamp; Left Hand

1шт.

14

E132941

HARNESS

Combination Lamp

2шт.

15

22-422

GROMMET

2шт.

16

E132941

HARNESS

Combination Lamp

2шт.

17

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

18

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

20

495-81238

WASHER,13/16" x 3" x .238", HDN

13/16 x 1-1/2 x 11/64

4шт.

21

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.
