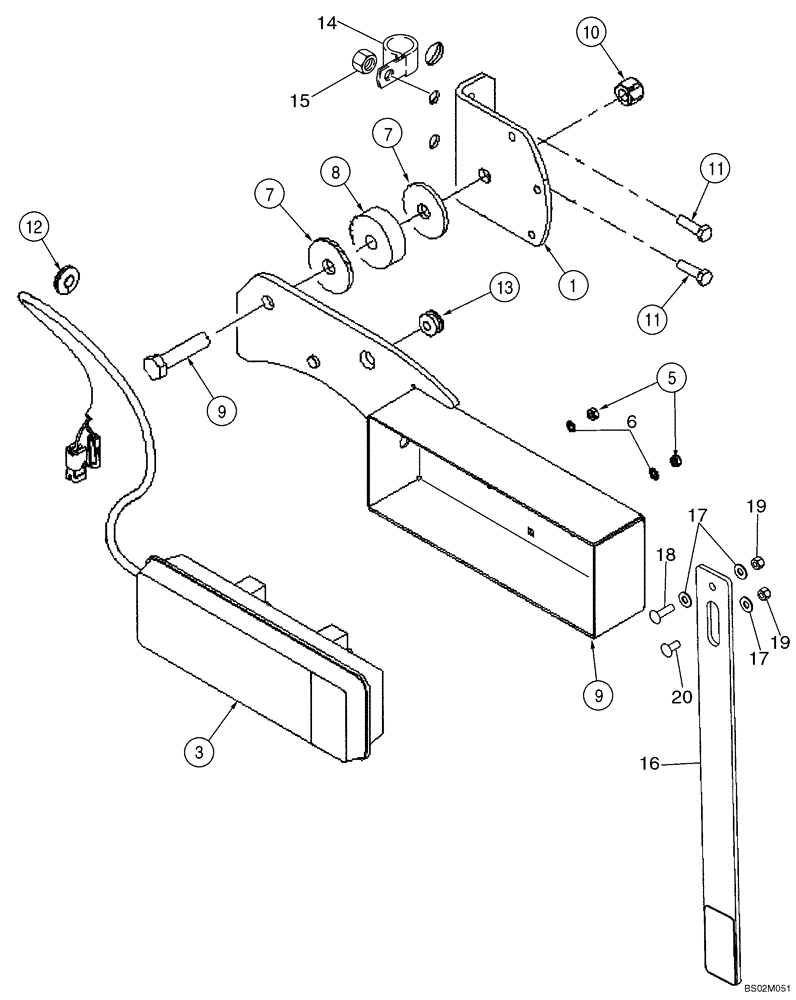

Запчасти Case 821C (04-23) - MOUNTING - LAMPS, REAR COMBINATION (Dec 18 2009 2:12PM) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

EUROPE ONLY

1шт.

1

E137360

SUPPORT

Combination Lamp; Right Hand; Not Illustrated

1шт.

1

E137357

SUPPORT

Combination Lamp; Left Hand

1шт.

2

436193A1

SUPPORT ASSY.

Combination Lamp; Right Hand; Not Illustrated

1шт.

2

436194A1

SUPPORT ASSY.

Combination Lamp; Left Hand

1шт.

3

E133218

LAMP, TAIL

LIGHT, TAIL Combination Lamp; Right Hand; Left Hand; See Figure 04-24

2шт.

4

E132941

HARNESS

Combination Lamp

2шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

6

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

4шт.

7

495-81238

WASHER,13/16" x 3" x .238", HDN

4шт.

8

120841A1

WASHER

2шт.

9

426-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

2шт.

10

231-14412

LOCK NUT,3/4"-10, GB

2шт.

11

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

12

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

2шт.

13

22-422

GROMMET

2шт.

14

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

16

436328A2

BAR ASSY.

Reflector

2шт.

17

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

18

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

2шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.
