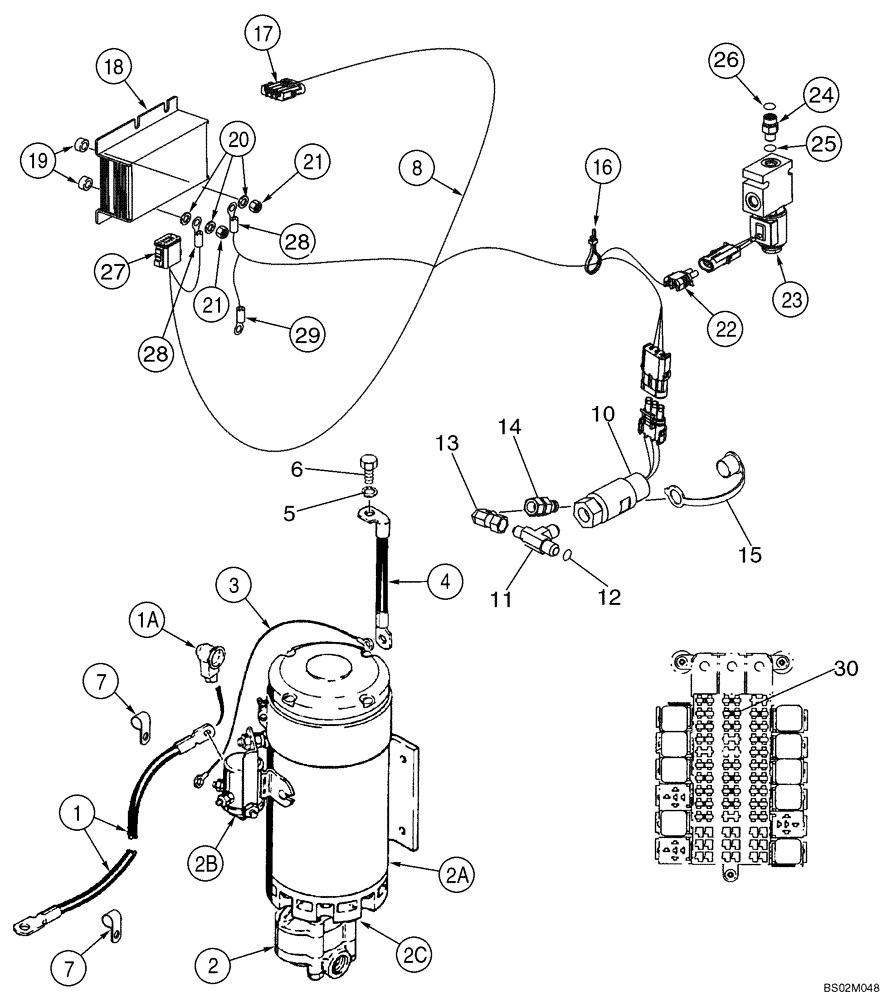

Запчасти Case 821C (04-16) - ELECTRICAL - STEERING, AUXILIARY (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
120864A1
CABLE ASSY.
Auxiliary Steering
1шт.
1a
L126713
BOOT
1шт.
197540A1
PUMP, HYDRAULIC
Auxiliary Steering; Incl. 2 - 3
1шт.
2
258041A1
PUMP, HYDRAULIC
1шт.
2a
258042A1
MOTOR, ELECTRIC
1шт.
2b
258043A1
SOLENOID SWITCH
24V
1шт.
2c
258044A1
GASKET
1шт.
2d
258045A1
SEAL KIT
Steering Pump; Not Illustrated
1шт.
2e
S64612
BOOT
Not Illustrated
2шт.
3
NSS
NOT SOLD SEPARAT
Wire
1шт.
4
L129707
NEG BATTERY CABLE
Ground
1шт.
5
892-11010
LOCK WASHER,M10
1шт.
6
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
1шт.
7
515-23159
CLAMP,5/8", Insul, 3/8" Bolt
Use existing hardware
2шт.
8
406680A3
HARNESS
Auxiliary Steering
1шт.
9
245485C1
ELEC CONNECTOR,Male, 3 Pin
1шт.
10
406398A1
SWITCH
Auxiliary Steering
1шт.
11
218-5105
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
See Figure 08-04, REF 13
1шт.
12
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
13
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
1шт.
14
101792A1
COUPLING
1шт.
15
H434163
DUST CAP
1шт.
16
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP
1шт.
17
245487C1
ELEC CONNECTOR,Male, 4 Pin
Harness; Rear Chassis
1шт.
18
397040A3
MODULE
Auxiliary Steering
1шт.
18
8603171
MODULE
Auxiliary Steering; Replaces 397040A3
1шт.
19
D35859
SPACER
2шт.
20
896-15008
WASHER,9mm ID x 21mm OD x 2.5mm Thk
3шт.
21
832-10408
NUT,M8 x 1.25, Cl 8.8
2шт.
22
245482C1
ELEC CONNECTOR,2 Pin
1шт.
23
413158A1
VALVE
Auxiliary Steering
1шт.
24
218-5053
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
Incl. 28, 29
1шт.
25
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
Boss end
1шт.
26
238-6011
O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro
Face Seal End
1шт.
27
225389C1
CONNECTOR, ELEC
CONNECTOR
1шт.
28
1964706C1
TERMINAL CONNECTOR
1шт.
29
1964703C1
TERMINAL CONNECTOR
1шт.
30
A149799
FUSE
7.5 Amp
1шт.
