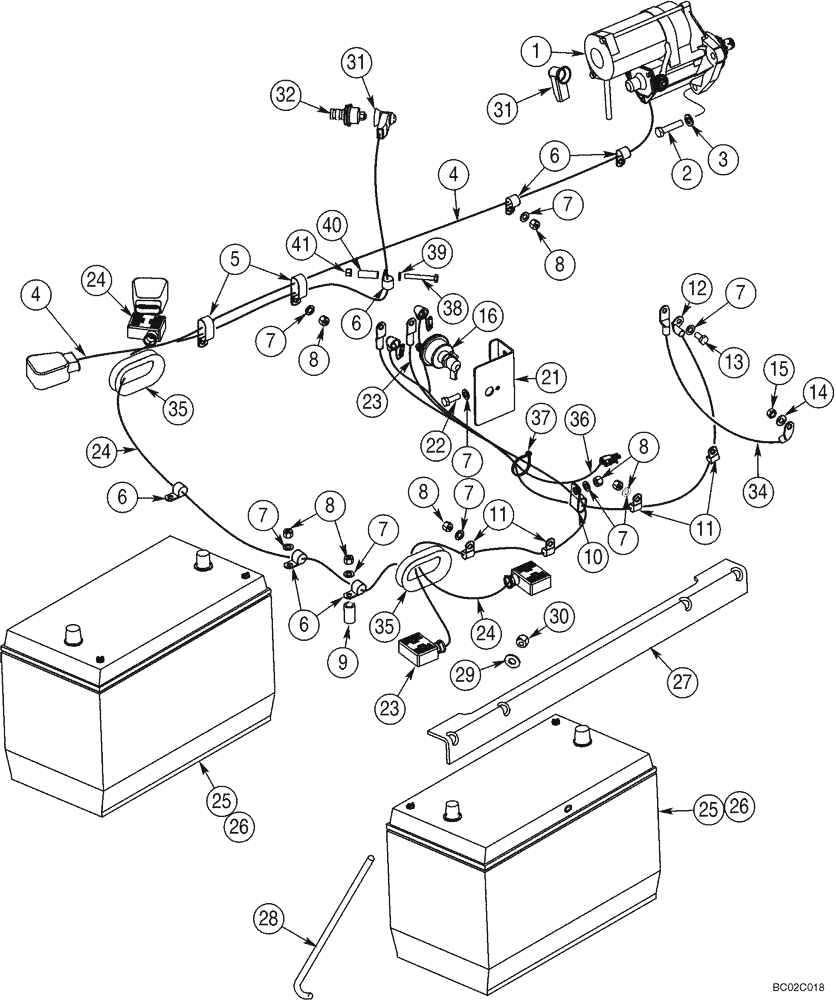

Запчасти Case 821C (04-15) - BATTERY - CABLES (Sep 9 2010 2:45PM) (04) - ELECTRICAL SYSTEMS

1

223900A2

STARTING MOTOR,24V, 7.5kW

See Figure 04-02

1шт.

1

223900A2R

REMAN-STARTER,24V, 7.5kW

Remanufactured Starting Motor

1шт.

1

223900A2C

CORE-STARTER,24V, 7.5kW

Return Part Number, Starting Motor

1шт.

2

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

3шт.

3

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

4

435829A3

ELECTRIC CABLE

1837 mm (72-5/16 in); Battery To Starter; Positive Terminal; Replaced By 87330408

1шт.

4

87330408

ELECTRIC CABLE

Battery To Starter; Positive Terminal; 1825mm ( 71-3/4 in )

1шт.

5

R54363

CLAMP

Battery Cable; Replaced By 515-23190

2шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19 mm)

2шт.

6

515-23206

CLAMP,13/16", Insul, 3/8" Bolt

5шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

15шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

12шт.

9

D26770

SPACER

1шт.

10

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

1шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

4шт.

12

435722A2

NEG BATTERY CABLE

Ground To Disconnect

1шт.

14

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

15

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5

1шт.

L126256

SWITCH

Disconnect Switch; Incl. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

Body

1шт.

17

129-187

NUT,5/16"-24, Brass

6шт.

18

492-11038

LOCK WASHER,3/8"

4шт.

19

131-573

NUT,#10-32

4шт.

20

492-11010

LOCK WASHER,#10

4шт.

21

448164A1

BRACKET

Disconnect Switch

1шт.

23

435686A2

NEG BATTERY CABLE

1035 mm (40-3/4 in), Disconnect Switch

1шт.

24

436141A3

NEG BATTERY CABLE

1638 mm (64-1/2 in); Jumper; Battery To Battery

1шт.

25

BMF31E

DRY BATTERY

12V; Standard; Service Replacement

2шт.

26

BHC4DA

BATTERY, DRY

BATTERY DRY 12V; Heavy Duty; Service Replacement

2шт.

27

L124221

SUPPORT

Hold Down

2шт.

28

365357A1

ROD

Hold Down

4шт.

29

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

31

L126713

BOOT

Cable At Starter; Cable At Ground

4шт.

32

1964554C1

TERMINAL

1шт.

34

435689A1

NEG BATTERY CABLE

464 mm (18-1/4 in); Ground; Engine To frame

1шт.

35

434868A1

CONDUIT

2шт.

36

L127676

WIRE HARNESS

Disconnect Switch

1шт.

37

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

38

827-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9

1шт.

39

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

40

371425A1

SPACER

1шт.

41

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

13

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

22

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.
