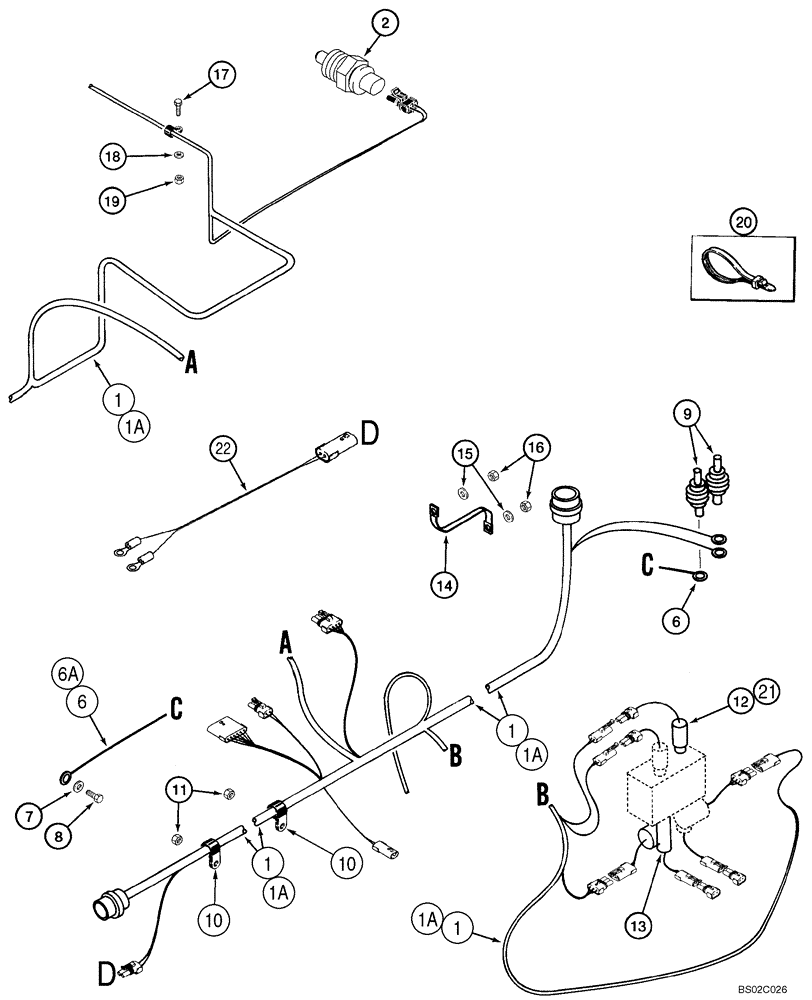

Запчасти Case 821C (04-13) - HARNESS, REAR CHASSIS (Dec 18 2009 9:45AM) (04) - ELECTRICAL SYSTEMS

1a

426170A1

HARNESS

Use With 407165A1; Rear Chassis; See Figure 08-47

1шт.

2

321446A1

SENSOR

Hydraulic Oil Temperature

1шт.

6a

450615A1

ELECTRICAL WIRE

WIRE 1720 mm (67-3/4 in)

1шт.

7

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

8

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

1шт.

9

319055A1

JUNCTION BLOCK

2шт.

10

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

12

L128914

PRESSURE SWITCH

Hydraulic Declutch

2шт.

13

232563A1

SWITCH, PRESSURE

PRESSURE SWITCH Brake Accumulator Hydraulic Warning

1шт.

14

L126051

GROUND STRAP

1шт.

15

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

16

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5

2шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

20

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

1шт.

22

329571A1

HARNESS

Fuel Level Sender

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
