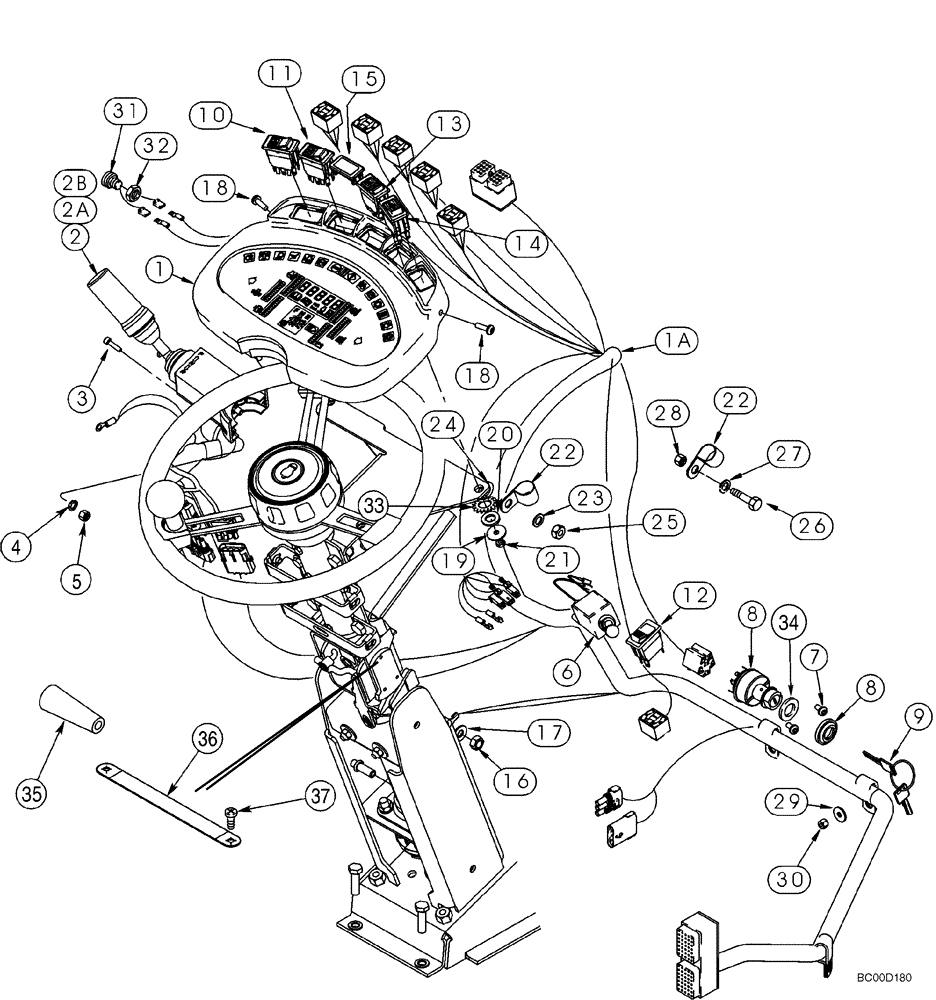

Запчасти Case 821C (04-06) - HARNESS - PEDESTAL (Nov 10 2011 4:27PM) (04) - ELECTRICAL SYSTEMS

399236A1R

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Remanufactured; North America Only; Tan; If Used

1шт.

399236A2R

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Remanufactured; North America Only; Replaces 399236A1R; Tan; If Used

1шт.

399236A1C

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Return Number; Tan; If Used

1шт.

399236A2C

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Return Number; If Used

1шт.

1

399236A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Tan; If Used

1шт.

1

399236A2

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Replaces 399236A1; Tan; If Used

1шт.

1

399236A3

CLUSTER, INSTR.

CLUSTER, INSTRUMENT Replaces 399236A2; Tan; If Used

1шт.

1

87710744R

REMAN-INSTR CLUSTER

REMAN-INSTRUMENT CLUSTER 821C, S/N JEE0155001 & Aft., 921C, S/N JEE0155001 & Aft., Reman For New P/N's 399236A2 & A3, & 87710744

1шт.

1

87710744C

CORE

Return Number

1шт.

1a

436246A1

HARNESS

Front Pedestal; Used With 1987555C1 Which Is No Longer Available From COBO

1шт.

1a

87311967

HARNESS

Harness Front Pedestal; Use With Ref 6; 389487A1

1шт.

1a

87340748

HARNESS

HARNESS; Front Pedestal; Used With Switch 389487A1

1шт.

2

238270A1

CONTROL

Incl. 2A, 2B

1шт.

2

238270A1R

REMAN-JOYSTICK

821C, 921C both CASE WHEEL LOADER (S/N JEE0155001 & AFTER)

1шт.

2

238270A1C

CORE-JOYSTICK

Return Number

1шт.

2b

NSS

NOT SOLD SEPARAT

COVER

1шт.

2b

NSS

NOT SOLD SEPARAT

SEAL

1шт.

3

864-5020

HEX SOC SCREW,M5 x 20mm, Cl 8.8

2шт.

4

892-11005

LOCK WASHER,M5

2шт.

5

824-1405

NUT,M5, Cl 5

2шт.

6

1987555C1

SWITCH

Turn Signal and Dimmer; No Longer Available; Used With Harness 436246A1

1шт.

6

389487A1

LIGHT SWITCH

Turn Signal and Dimmer; ELOBAU; Used With Harness 87311967

1шт.

7

239225A1

SCREW,Phillips Drive, Pan HD, M4 x 0.7 x 12mm

2шт.

8

282775A1

IGNITION SWITCH

Incl. 9

1шт.

9

1964831C2

IGNITION KEY

Padded

1шт.

10

374426A2

SWITCH

Hazard Warning

1шт.

11

374434A2

SWITCH

Pilot Control

1шт.

12

374424A2

PARK BRAKE SWITCH

Parking

1шт.

13

374428A2

SWITCH

Up/Down Count

1шт.

14

374423A2

SWITCH

Program Reset

1шт.

15

86000535

PLUG,1.427" x .62", Plastic

Switch Opening

1шт.

16

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5

2шт.

17

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

18

239105A1

SCREW,Cross Pan Hd, M6 x 20mm

2шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

20

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

21

829-1406

NUT,Hex, M6 x 1, Cl 10.9

M6; 10.9

4шт.

22

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

3шт.

23

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

24

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

26

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

27

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

28

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

29

1990502C1

WASHER

1/4 x 13/16 x 1/16 in

3шт.

30

832-10406

NUT,M6 x 1, Cl 8

3шт.

31

A135520

SWITCH

Cold Start

1шт.

32

425-1110

NUT,5/8"-18, G5

1шт.

33

893-11012

LOCK WASHER,Ext Tooth, M12

4шт.

34

495-81072

WASHER,1 1/32" x 1 3/4" x .030"

(26.02 x 44.5 x 0.8 mm)

1шт.

35

283095A2

BALL KNOB

Steering Tilt

1шт.

36

349372A1

GROUND CABLE

Ground

1шт.

37

353169A1

SCREW

1/4 x 3/4

2шт.
