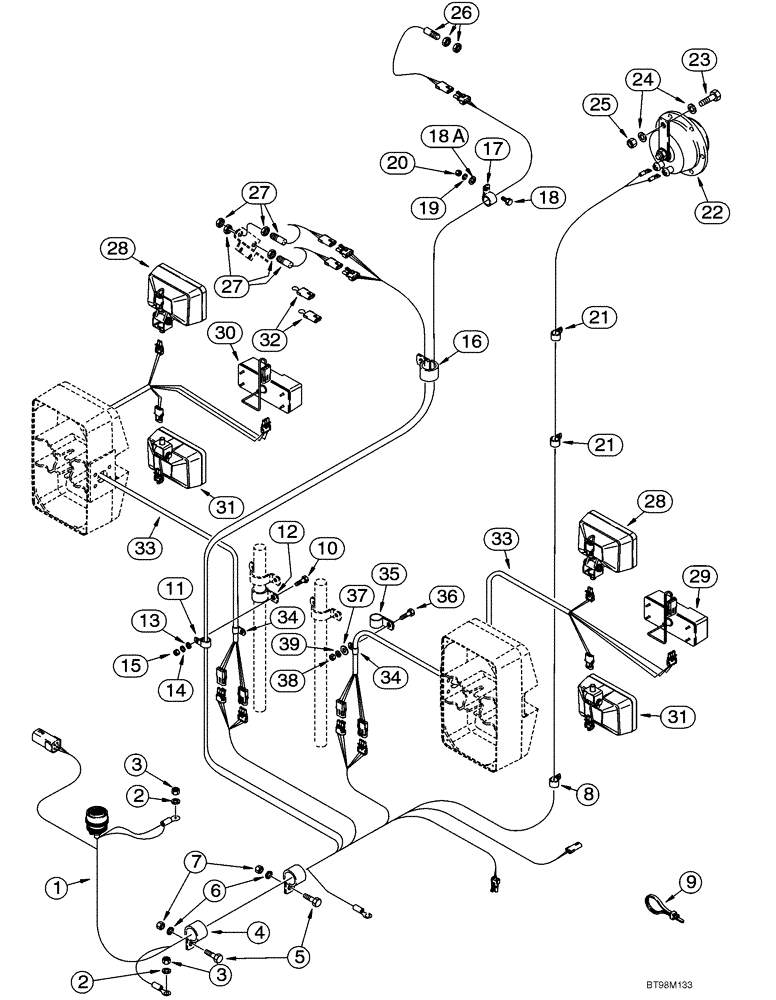

Запчасти Case 821C (04-05) - HARNESS, FRONT - LAMPS AND SWITCHES (Nov 11 2008 10:49AM) (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

297011A2

HARNESS

Front

1шт.

2

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

3

253347A1

NUT,Hex, M10 x 1.5

M10 - 1,5

2шт.

4

515-23254

CLAMP,1", Insul, 3/8" Bolt

Front; Use Existing Hardware

1шт.

5

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Use Existing Hardware

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

12

D34033

CLAMP

1-3/16 ID; Left Hand

1шт.

13

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

14

892-11010

LOCK WASHER,M10

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

16

L19029

CLAMP

1/2 ID; Front Frame

1шт.

17

R13931

CLAMP

Bucket Cylinder Tube

1шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

18a

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

19

892-11010

LOCK WASHER,M10

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

21

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Harness to Clamps on Front Brake Tube

2шт.

22

251444A1

ASSEMBLY

300 HZ

1шт.

24

892-11010

LOCK WASHER,M10

11 x 20 x 2 mm

2шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

26

1546497C1

SWITCH

Return To Dig; Incl.Hardware

1шт.

27

1546498C1

SWITCH

Height Control; Return-To-Transport; Incl. Hardware

2шт.

28

A187519

LIGHT ASSY.,24V, 70W, Clear

Driving; See Figure 04-26

2шт.

29

A187992

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn Signal and Flasher; Right Hand; See Figure 04-27

1шт.

30

A187993

LIGHT ASSY.,24V, 27W, Amber/Clear

Turn Signal and Flasher; Left Hand; See Figure 04-27

1шт.

31

A187520

LIGHT ASSY.,24V, 70W, Clear

Flood; See Figure 04-26

2шт.

32

L127785

HARNESS

Jumper; Use When Height Control and Return-To-Transport Option Is Not Used

2шт.

33

238176A1

HARNESS

Extension

2шт.

34

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

2шт.

35

D34033

CLAMP

1-3/16 ID

1шт.

37

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

38

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

39

892-11010

LOCK WASHER,M10

1шт.

10

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

23

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

36

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
