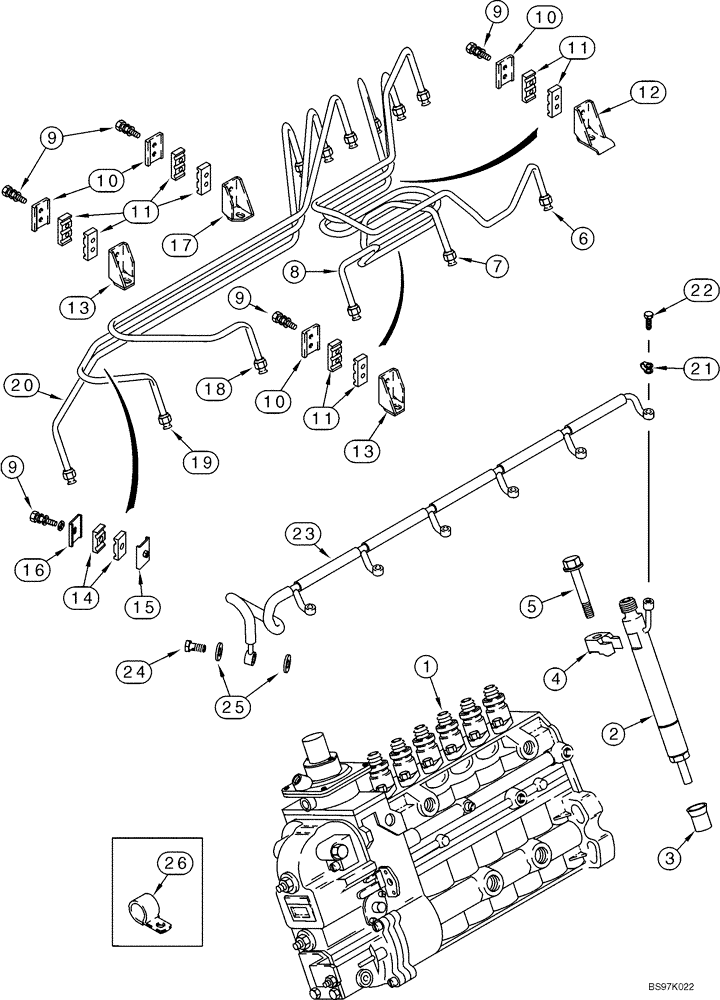

Запчасти Case 821C (03-05) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

REF

INSTRUCTION

6TAA-830 EMISSIONS CERTIFIED ENGINE

1шт.

1

J938386

FUEL INJECTION PUMP

See Figure 03-08

1шт.

1

JR938386

REMAN-INJECTION PUMP

Reman for New PN J938386

1шт.

1

JC938386

CORE-INJECTION PUMP

Return Number

1шт.

2

J939837

INJECTOR ASSY.

Component Parts Not Serviced Separately

6шт.

2

JR939837

REMAN-FUEL INJECTOR

6шт.

2

JC939837

INJECTOR ASSY.

Return Number

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

6шт.

4

J910279

CLAMP

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

6шт.

6

J930391

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 1

1шт.

7

J930392

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 2

1шт.

8

J930393

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 3

1шт.

9

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

9шт.

10

J991275

BRACKET

4шт.

11

J917747

CLAMP

8шт.

12

J919622

BRACE

1шт.

13

J282942

BRACKET

2шт.

14

J917746

CLAMP

2шт.

15

J991276

BRACE

1шт.

16

J991277

BRACE

1шт.

17

J282942

BRACKET

1шт.

18

J930394

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 4

1шт.

19

J930395

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 5

1шт.

20

J930396

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

No. 6

1шт.

21

J903380

SEAL

6шт.

22

J905307

BANJO BOLT,M6 x 1 x 14.30mm

7шт.

23

J920595

TUBE ASSY.

1шт.

24

J924726

BANJO BOLT

1шт.

25

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

2шт.

26

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID

2шт.
