Запчасти Case 821C (03-03) - FUEL LINES - FILTER, IN-LINE FUEL (03) - FUEL SYSTEM

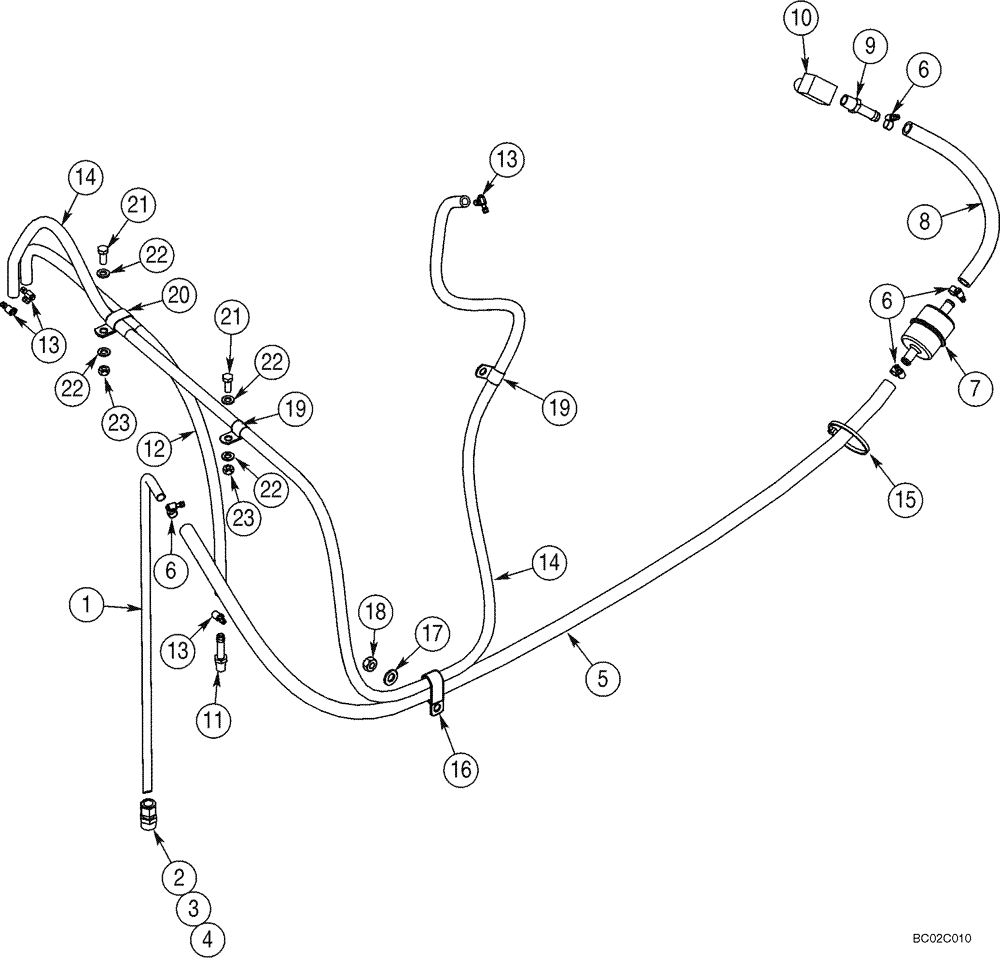

Схема запчастей Case 821C - (03-03) - FUEL LINES - FILTER, IN-LINE FUEL (03) - FUEL SYSTEM
6
2
5
15
6
3
19
20
9
13
22
12
17
19
22
4
13
1
23
10
14
11
6
22
8
21
16
23
14
7
18
22
21
13

Артикул

Название

Примечание

Количество

1

L128379

FUEL TUBE,12.7 mm OD x 575, 64 mm L

Supply

1шт.

222-649

FITTING,5/8"-24 x 1/2" NPT, Comp

1/2 tube OD x 1/2 PT; Compression; Incl. 2 - 4; Use Loctite

1шт.

2

NSS

NOT SOLD SEPARAT

Body

1шт.

3

222-656

SLEEVE

1/2 tube OD

1шт.

4

222-666

NUT,5/8"-24, 45 Degree Fl, Comp

1/2 tube OD x 11/16

1шт.

5

416733A1

HOSE

1450 mm (57 in); Cut From 32-80

1шт.

6

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

7

194199A1

FUEL FILTER

In-Line

1шт.

8

413173A1

HOSE

305 mm (12 in); Cut From 32-80

1шт.

9

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

10

217-1096

ELBOW,90 Degree, 1/2"-14 Male x 3/8"-18 Female

1шт.

11

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Use Loctite 592

1шт.

12

31-2837

HOSE

Fuel Cooler to Tank; Cut From 32-12X

1шт.

13

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

4шт.

14

31-3082

HOSE,0.38" ID x 8.00"

2159 mm (85 in); Injector To Fuel Cooler; Cut From 32-12X

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

16

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

1шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

20

31-1070

CLAMP,5/8", 3/8" Bolt, Double

1шт.

21

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

22

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm

4шт.

23

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

345-87

SEALANT

1 ml

1шт.

Выбрано товаров: 25
